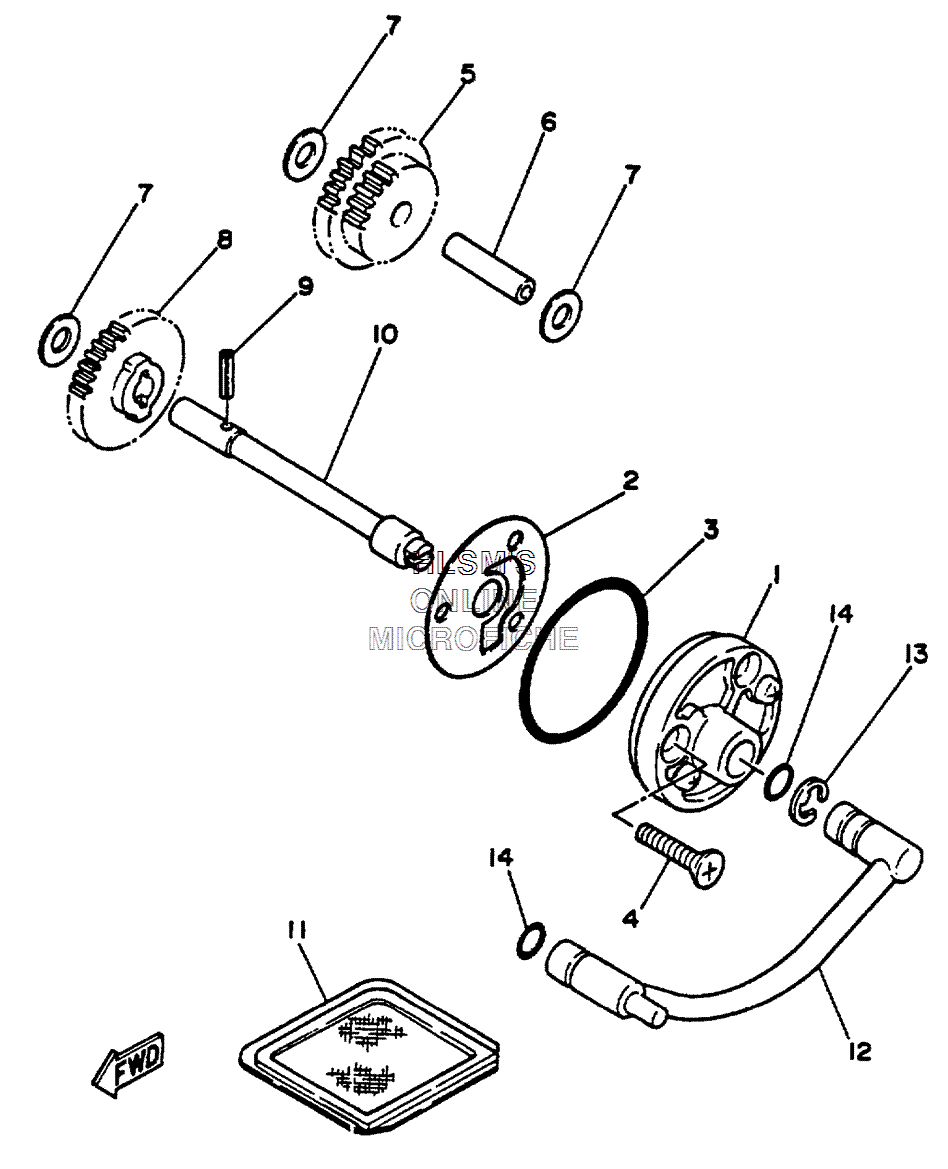

OIL PUMP для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-13300-00-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
250M-13475-10-00 GASKETGASKET
-
393210-50582-00 O-RINGO-RING
-
498780-06025-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
550M-13341-00-00 GEAR, OIL PUMP IDLEGEAR, OIL PUMP IDLE
-
650M-13342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
790201-08085-00 WASHER, PLATEWASHER, PLATE
-
850M-13325-00-00 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
991690-30014-00 PIN, SPRINGPIN, SPRING
-
1050M-Y1334-00-00 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
1122F-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1250M-13405-00-00 OIL PIPE COMP.1OIL PIPE COMP.1
-
1399006-10600-00 CIRCLIPCIRCLIP
-
1493210-08006-00 O-RINGO-RING
