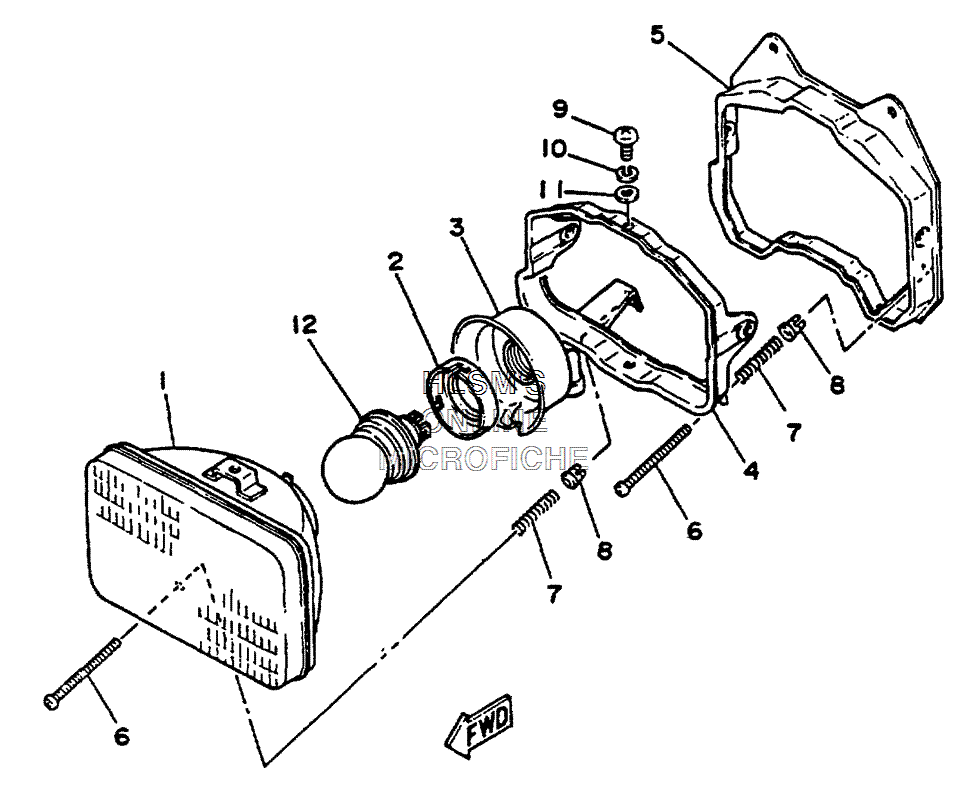

HEADLIGHT ASSY. для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-84320-60-00 LENS ASSY.LENS ASSY.
-
2341-84393-40-00 HOLDER, BULBHOLDER, BULB
-
346X-84396-00-00 COVERCOVER
-
450W-84395-00-00 RING, RETAININGRING, RETAINING
-
550W-84394-00-00 RING, MOUNTINGRING, MOUNTING
-
698501-04050-00 SCREW, PAN HEADSCREW, PAN HEAD
-
7341-84332-60-00 SPRING, SCREWSPRING, SCREW
-
850W-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
950W-84333-00-00 SCREWSCREW
-
1092990-05100-00 WASHER, SPRINGWASHER, SPRING
-
1192990-05600-00 WASHER, PLATEWASHER, PLATE
-
121U4-84314-40-XX BULB, HEAD LIGHT 12V45/40W)BULB, HEAD LIGHT 12V45/40W)
