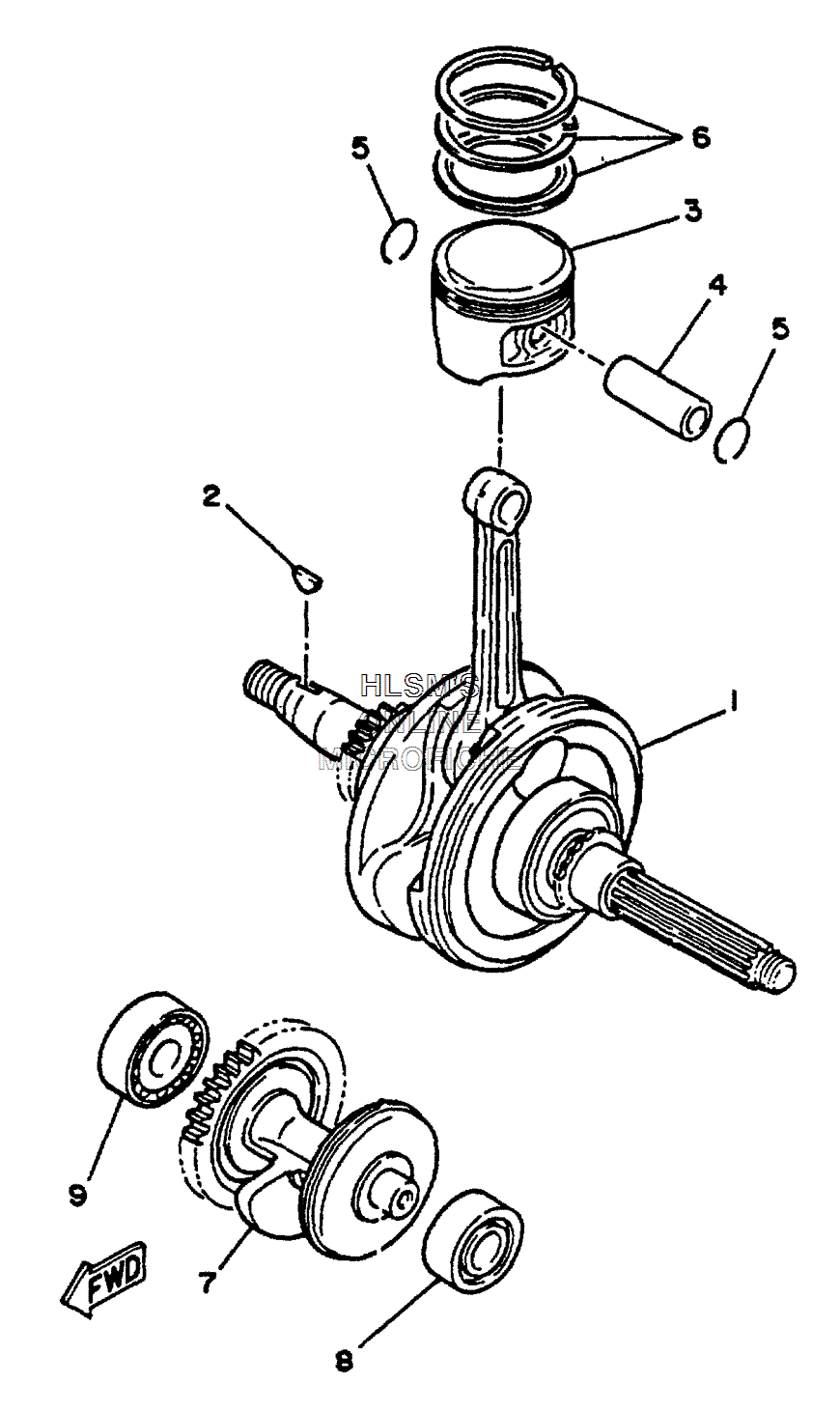

CRANKSHAFT W/ PISTON ASSY. для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-11400-00-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
290280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
350M-11636-00-00 PISTON (0.5MM OS)PISTON (0.5MM OS)
-
350M-11638-00-00 PISTON (1.00MM OS)PISTON (1.00MM OS)
-
350M-11631-00-0A PISTON (STD)PISTON (STD)
-
422K-11633-01-00 PIN, PISTONPIN, PISTON
-
593450-14088-00 CIRCLIP, INNERCIRCLIP, INNER
-
650M-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
650M-11610-20-00 PISTON RING SET (0.50MM O/S)PISTON RING SET (0.50MM O/S)
-
650M-11610-40-00 PISTON RING SET (1.00MM O/S)PISTON RING SET (1.00MM O/S)
-
750M-11500-00-00 BALANCE ASSY.BALANCE ASSY.
-
893306-20215-00 BEARINGBEARING
-
993306-20336-00 BEARINGBEARING
