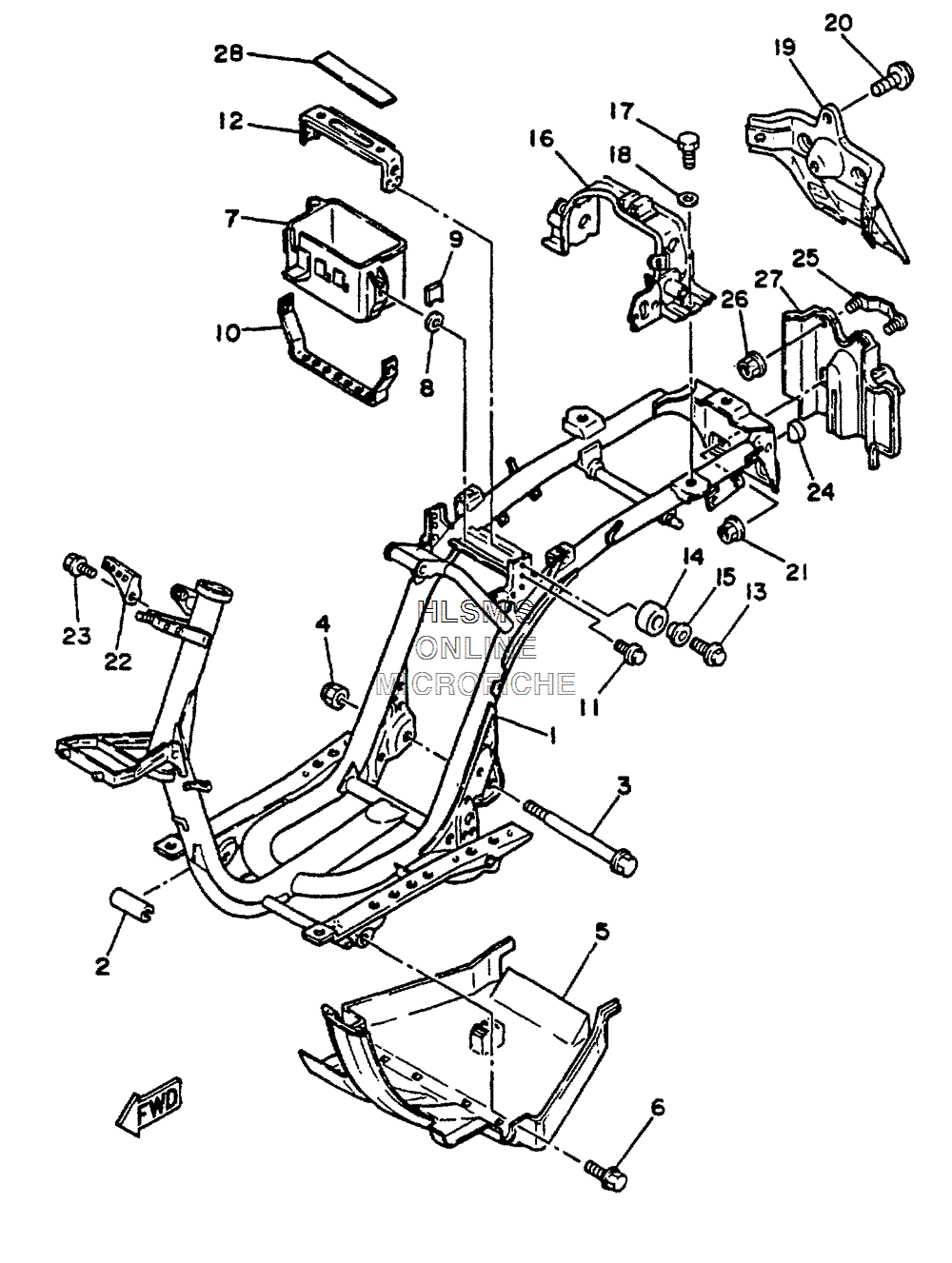

FRAME для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-21110-01-00 FRAME COMP.FRAME COMP.
-
250W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
390105-12228-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
550W-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
690119-06018-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
750M-21171-00-00 BOX, TOOLBOX, TOOL
-
890387-060U2-00 COLLARCOLLAR
-
950W-21172-00-00 STOPPER, BOXSTOPPER, BOX
-
1050W-21393-00-00 BRACKET, BATTERY BOXBRACKET, BATTERY BOX
-
1195817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1250M-21243-00-00 PLATE, BRIDGEPLATE, BRIDGE
-
1395811-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1450W-21717-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
1590387-061F8-00 COLLARCOLLAR
-
1650W-21391-00-00 BRACKET, SEATBRACKET, SEAT
-
1707313-08016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1892990-08600-00 WASHER, PLATEWASHER, PLATE
-
1950W-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2095817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2195704-06500-00 NUT, FLANGENUT, FLANGE
-
2250W-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
2395817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2450M-2143A-00-00 CAPCAP
-
2550M-21622-00-00 BAND, FLAPBAND, FLAP
-
2695707-05500-00 NUT, FLANGENUT, FLANGE
-
2750M-21642-00-00 GUARD, FLAPGUARD, FLAP
-
283YF-24724-01-00 DAMPERDAMPER
