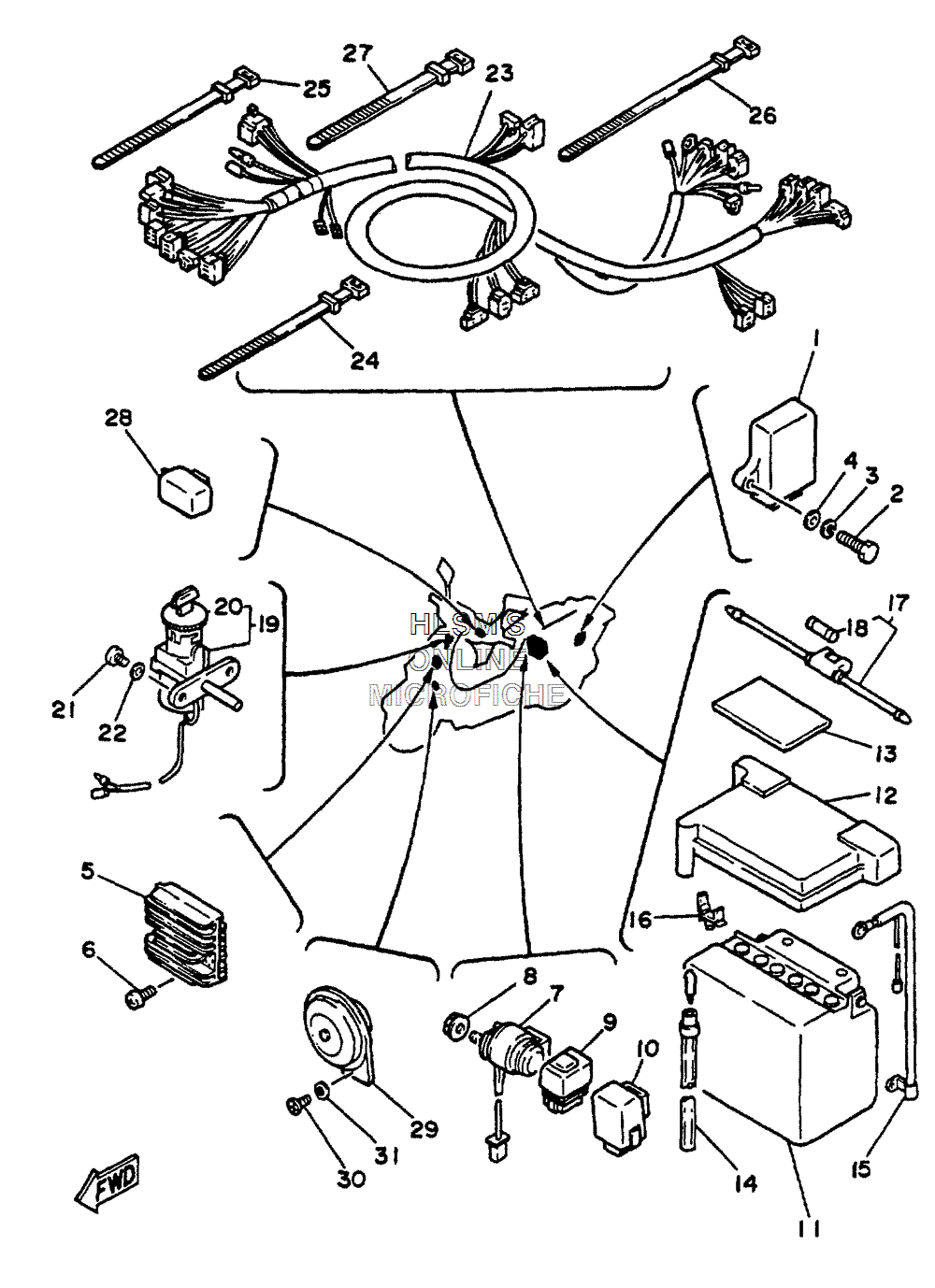

ELECTRICAL для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-882305-10-00 IGNITOR UNIT ASSY.IGNITOR UNIT ASSY.
-
297011-06025-00 BOLTBOLT
-
392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
492990-06600-00 WASHER, PLATEWASHER, PLATE
-
536F-81960-A1-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
698580-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
750W-81940-10-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
895704-06500-00 NUT, FLANGENUT, FLANGE
-
925G-81950-01-00 RELAY ASSY.RELAY ASSY.
-
1050M-81950-00-00 RELAY ASSY.RELAY ASSY.
-
111JE-82110-61-00 BATTERY ASSY. (GS GM7CZ-3D)BATTERY ASSY. (GS GM7CZ-3D)
-
1250M-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
1350W-82121-00-00 PAD, BATTERYPAD, BATTERY
-
1490445-087E1-00 HOSEHOSE
-
1550W-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1690464-06053-00 CLAMPCLAMP
-
172UJ-82150-01-00 FUSE HOLDER ASSY.FUSE HOLDER ASSY.
-
181A0-82161-00-00 ...FUSE...FUSE
-
1950M-82501-30-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
2050W-82552-30-00 ...CAP, SWITCH...CAP, SWITCH
-
2198503-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292901-06600-00 WASHER, PLATEWASHER, PLATE
-
2350M-82590-10-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
24437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
25437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2625G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2725G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2831G-83350-20-00 FLASHER RELAY ASSY.FLASHER RELAY ASSY.
-
2950M-83371-20-00 HORNHORN
-
3098516-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3192906-06100-00 WASHER, SPRINGWASHER, SPRING
