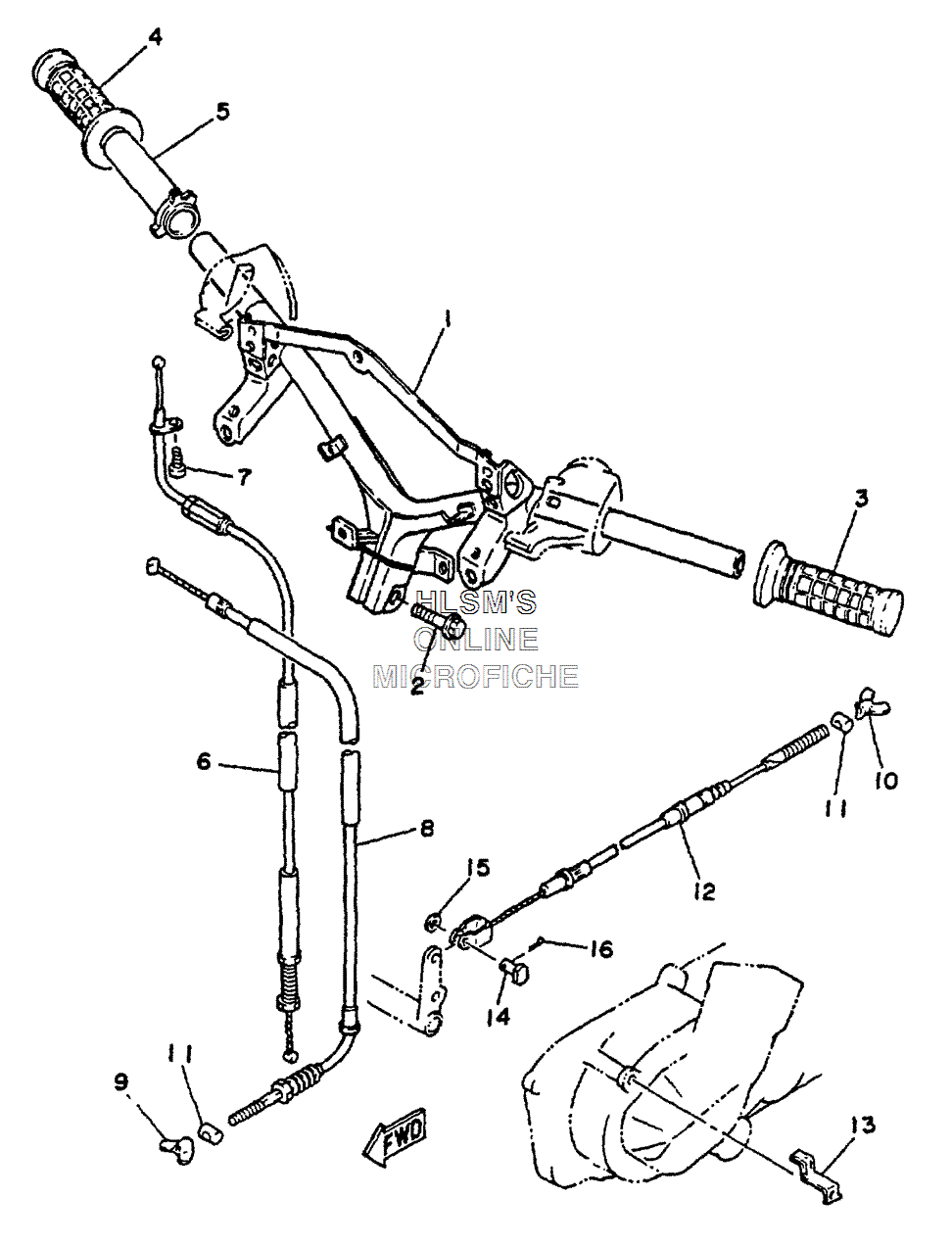

HANDLEBAR W/ CABLES для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150W-26110-20-00 HANDLE COMP.HANDLE COMP.
-
290105-10393-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
335R-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
435R-26242-00-00 GRIP (RIGHT)GRIP (RIGHT)
-
535R-26243-00-00 TUBE, THROTTLE GUIDETUBE, THROTTLE GUIDE
-
650M-26311-02-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
798580-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
850W-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
990179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1090175-06019-00 NUT, WINGNUT, WING
-
1190249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
1250W-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
1350W-26379-00-00 GUIDE, CABLEGUIDE, CABLE
-
1490240-06108-00 PIN, CLEVISPIN, CLEVIS
-
1592990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1691490-20020-00 PIN, COTTERPIN, COTTER
