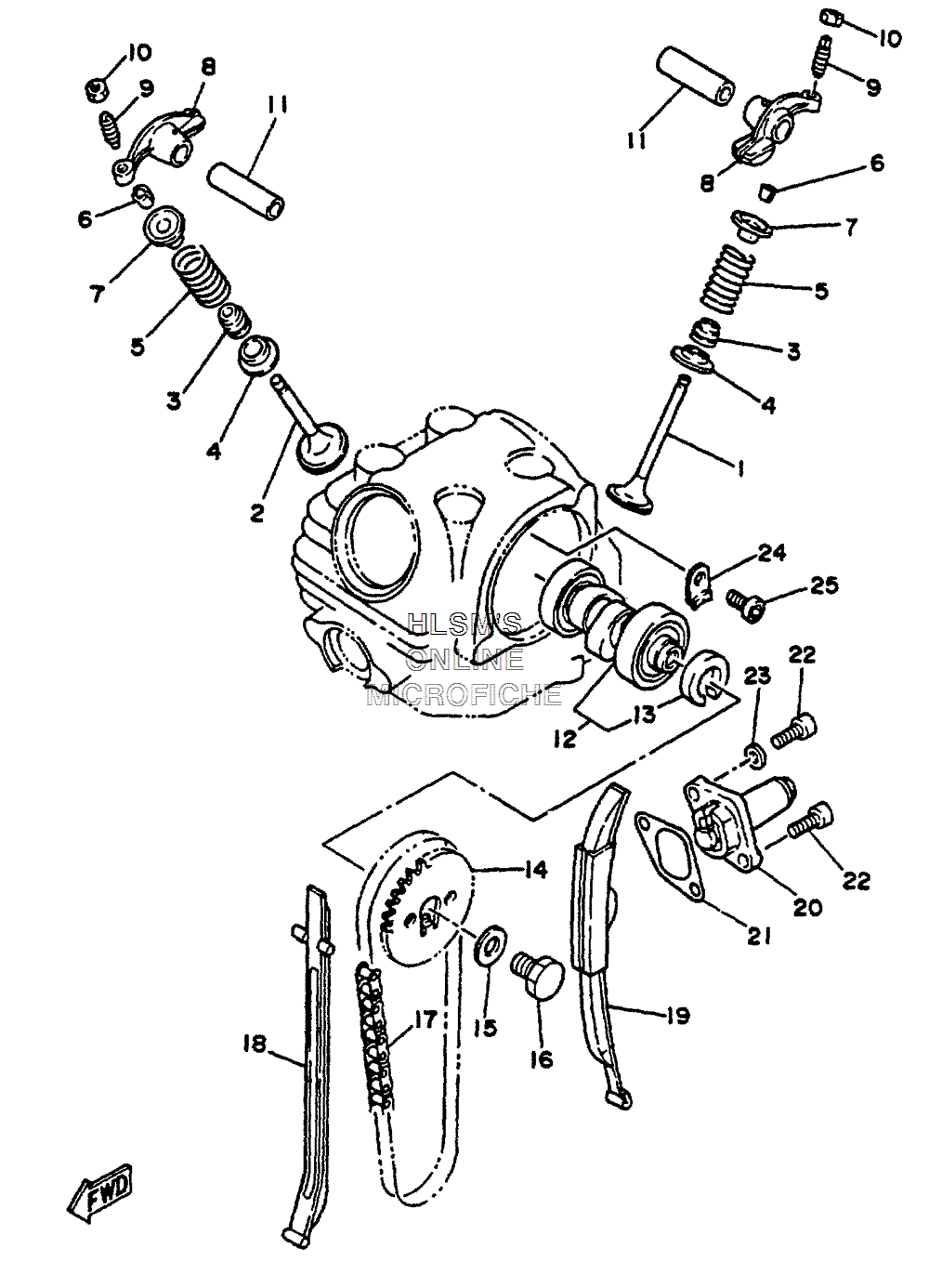

VALVE ASSY. W/ CAM CHAIN ASSY. для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
250M-12121-01-00 VALVE, EXHAUSTVALVE, EXHAUST
-
322F-12119-01-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
422F-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
522F-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
622F-12118-01-00 COTTER, VALVECOTTER, VALVE
-
722F-12117-02-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
850M-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
922F-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1090170-05302-00 NUTNUT
-
1122F-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
1250M-12170-00-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
1390387-167L5-00 ...COLLAR...COLLAR
-
1450M-12176-00-00 SPROCKET, CAM CHAIN (28T)SPROCKET, CAM CHAIN (28T)
-
1590201-08326-00 WASHER, PLATEWASHER, PLATE
-
1690101-08590-00 BOLTBOLT
-
1794580-25092-00 CHAIN (D.I.D 25)CHAIN (D.I.D 25)
-
1850M-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
1950M-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
2050M-12210-00-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
2150M-12213-10-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
2291311-06016-00 BOLTBOLT
-
2390430-06014-00 GASKETGASKET
-
2450M-1111F-00-00 PLATEPLATE
-
2591316-06012-00 BOLTBOLT
