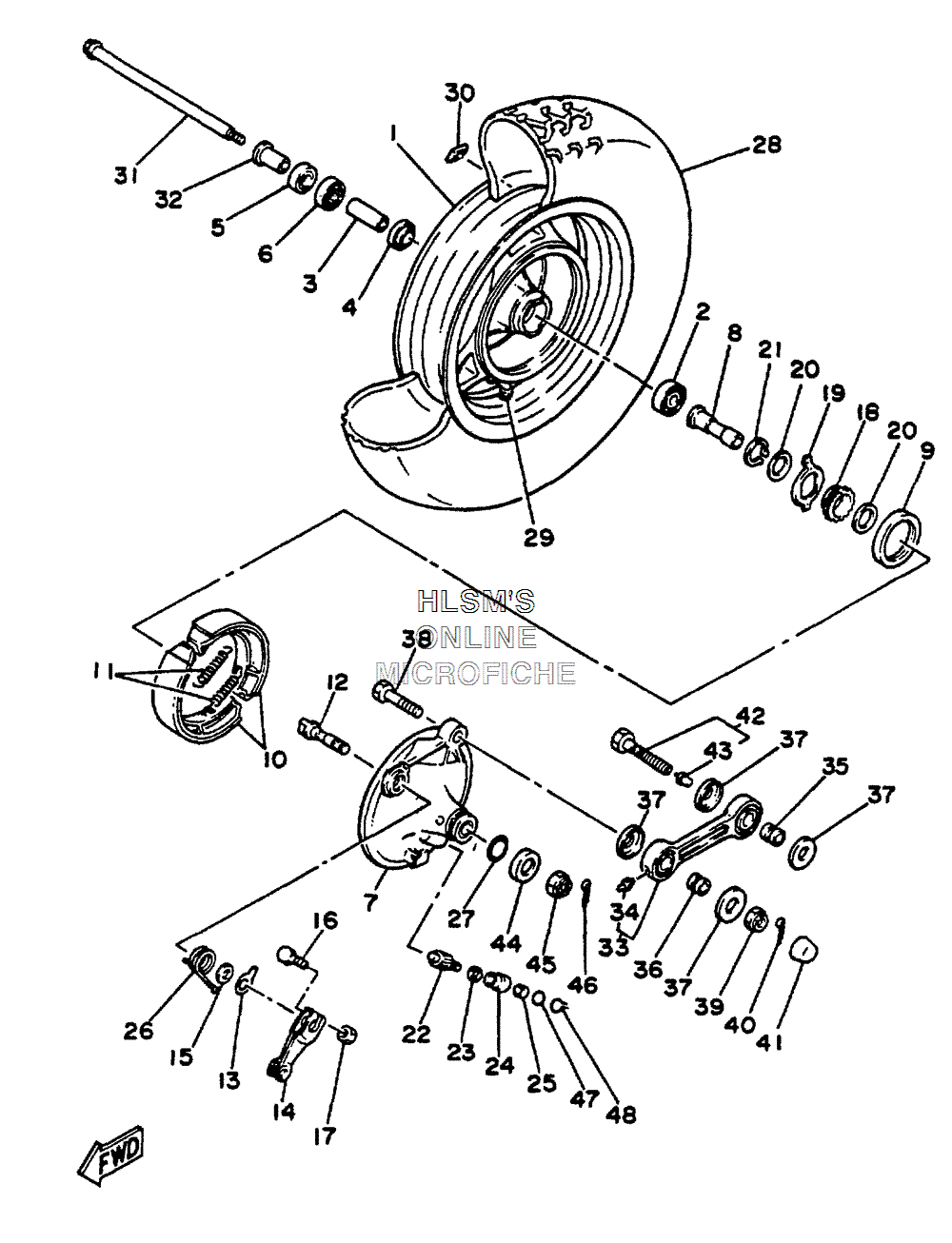

WHEEL - FRONT для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-25168-21-35 CAST WHEEL, FRONT (SILVER)CAST WHEEL, FRONT (SILVER)
-
293306-30109-00 BEARINGBEARING
-
390560-12261-00 SPACERSPACER
-
4109-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
593102-17235-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
693306-20117-00 BEARINGBEARING
-
750W-25121-04-35 PLATE, BRAKE SHOE (SILVER)PLATE, BRAKE SHOE (SILVER)
-
890387-120L8-00 COLLARCOLLAR
-
993102-47297-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
103TE-W2535-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
1190506-17328-00 SPRING, TENSIONSPRING, TENSION
-
123Y6-25351-00-00 CAMSHAFTCAMSHAFT
-
135Y1-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1425G-25155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
1536F-25159-00-00 SEAL, CAMSHAFTSEAL, CAMSHAFT
-
1690101-06278-00 BOLTBOLT
-
1795380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
1850W-25135-00-00 GEAR, DRIVEGEAR, DRIVE
-
1950W-25149-00-00 CLUTCH, METERCLUTCH, METER
-
2090201-244J3-00 WASHER, PLATEWASHER, PLATE
-
2193410-24042-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
2236F-25138-00-00 GEAR, METERGEAR, METER
-
2390201-07076-00 WASHER, PLATEWASHER, PLATE
-
24109-25136-00-00 BUSHBUSH
-
2593104-07003-00 OIL SEAL, SO-TYPEOIL SEAL, SO-TYPE
-
2690508-26616-00 SPRING, TORSIONSPRING, TORSION
-
2793210-23326-00 O-RINGO-RING
-
2894135-102N7-00 TIRE (3.50-10) DUNLOPTIRE (3.50-10) DUNLOP
-
2993900-00042-00 VALVE, RIMVALVE, RIM
-
301A1-25399-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
301A1-25398-01-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
302M0-25399-00-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
315J0-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
3290387-120L7-00 COLLARCOLLAR
-
3350W-25371-00-00 BAR, TENSIONBAR, TENSION
-
3493700-04002-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3590387-100L9-00 COLLARCOLLAR
-
3690387-101H3-00 COLLARCOLLAR
-
3750W-23383-00-00 COVER, DUST SEAL 1COVER, DUST SEAL 1
-
3890102-10031-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
3995614-10100-00 NUT, UNUT, U
-
4091490-20020-00 PIN, COTTERPIN, COTTER
-
4150W-25188-00-00 CAPCAP
-
4250W-25178-00-00 BOLT, TENSION BARBOLT, TENSION BAR
-
4393700-04002-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4490209-12259-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
4590171-12042-00 NUT, CASTLENUT, CASTLE
-
4691401-30030-00 PIN, COTTERPIN, COTTER
-
4793210-14104-00 O-RINGO-RING
-
48102-25137-00-00 RING, STOPRING, STOP
