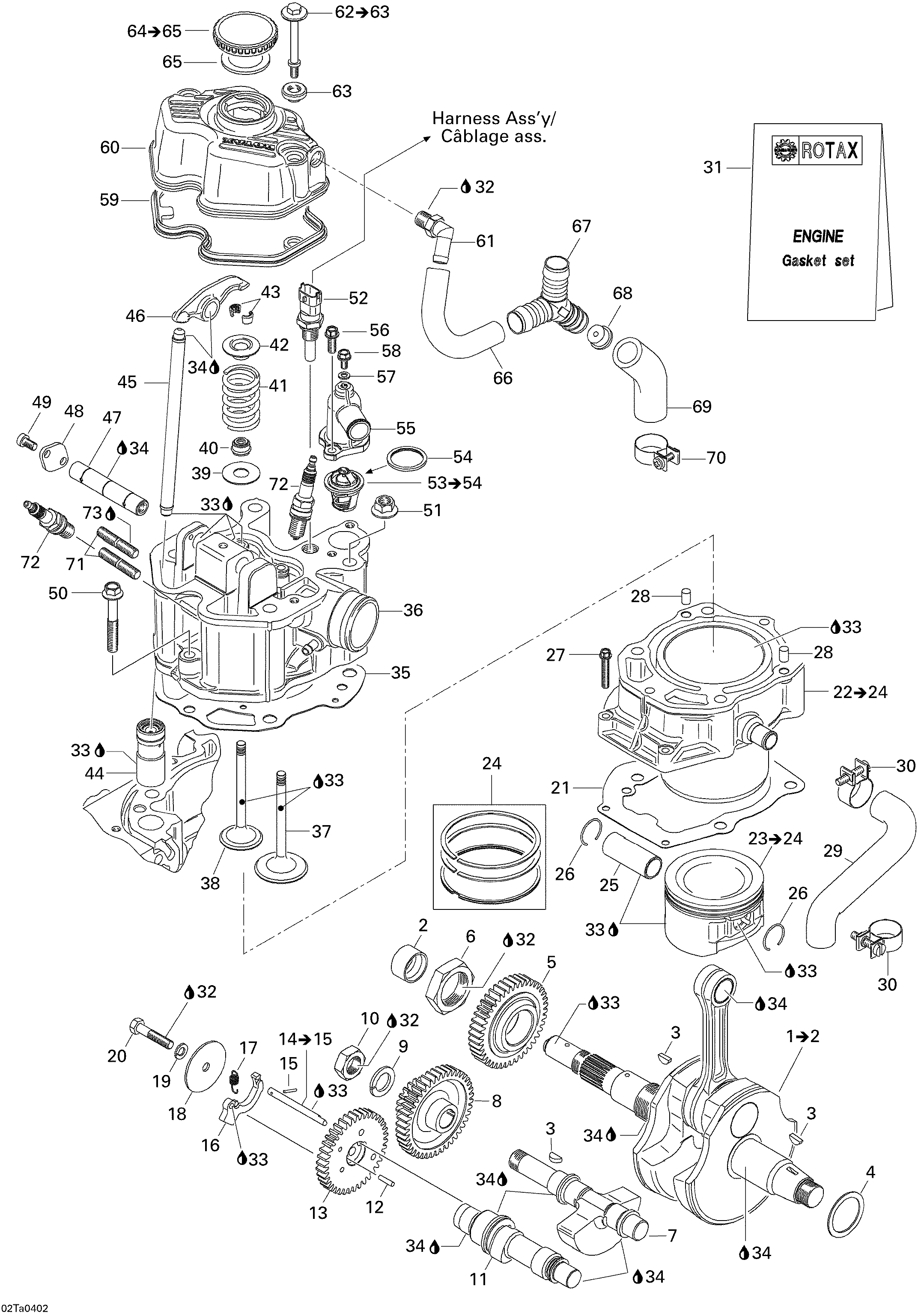

01- Crankshaft, Pistons And Cylinder для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1420295893 Crankshaft Ass'y. INCLUDES ITEMS 1 TO 2Crankshaft Ass'y. INCLUDES ITEMS 1 TO 2
-
2420247070 SpacerSpacer
-
3420246570 Woodruff KeyWoodruff Key
-
4420427505 Adjusting Washer 35 x 45 x 1.3Adjusting Washer 35 x 45 x 1.3
-
420427506 Adjusting Washer 35 x 45 x 1.5Adjusting Washer 35 x 45 x 1.5
-
420427507 Adjusting Washer 35 x 45 x 1.8Adjusting Washer 35 x 45 x 1.8
-
5420635011 Mating Gear (42 Teeth)Mating Gear (42 Teeth)
-
6420842605 Hex. Nut M34Hex. Nut M34
-
7420220470 Balance ShaftBalance Shaft
-
8420635100 Balancing Gear DoubleBalancing Gear Double
-
9290945757 Lock Washer 18 mmLock Washer 18 mm
-
10420942220 Hex. Nut M18Hex. Nut M18
-
11420220462 Cam ShaftCam Shaft
-
12420232420 Needle PinNeedle Pin
-
13420634956 Cam Shaft Gear (38 Teeth)Cam Shaft Gear (38 Teeth)
-
14420220615 Deko Shaft Ass'y. INCLUDES ITEMS 14 TO 15Deko Shaft Ass'y. INCLUDES ITEMS 14 TO 15
-
16420231050 Centrifugal WeightCentrifugal Weight
-
17420239570 Tension SpringTension Spring
-
18420244260 RondelleRondelle
-
19420945752 Lock Washer 8 mmLock Washer 8 mm
-
20207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
21420650430 Cylinder GasketCylinder Gasket
-
22420613177 Cylinder/Piston. INCLUDES ITEMS 22 TO 24Cylinder/Piston. INCLUDES ITEMS 22 TO 24
-
23420296110 Piston 89 mm and Ring Set. INCLUDES ITEMS 23 TO 24Piston 89 mm and Ring Set. INCLUDES ITEMS 23 TO 24
-
24420296114 Piston Ring SetPiston Ring Set
-
25420216225 Piston PinPiston Pin
-
26420245431 Circlip 22 mmCirclip 22 mm
-
27420941126 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
28420632010 Pin M8 x 12Pin M8 x 12
-
29420222285 Water Cooling HoseWater Cooling Hose
-
30420951760 ClampClamp
-
31420296372 Engine Gasket SetEngine Gasket Set
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33293600039 Engine Oil 4 Strokes, 5W40, 12 x 1 litersEngine Oil 4 Strokes, 5W40, 12 x 1 liters
-
34420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
35420650446 Cylinder Head GasketCylinder Head Gasket
-
36420613375 Cylinder HeadCylinder Head
-
37420254050 Inlet Valve 42 mmInlet Valve 42 mm
-
38420254062 Inlet Valve 34 mmInlet Valve 34 mm
-
39420227980 Thrust WasherThrust Washer
-
40420230810 Valve SealValve Seal
-
41420239500 Valve SpringValve Spring
-
42420254100 Valve Spring RetainerValve Spring Retainer
-
43420253090 Valve CotterValve Cotter
-
44420854094 Hydraulic Valve TappetHydraulic Valve Tappet
-
45420854575 Push RodPush Rod
-
46420254083 Rocker ArmRocker Arm
-
47420254110 Rocker Arm ShaftRocker Arm Shaft
-
48420244250 Holding StripHolding Strip
-
49420241681 Socket Head Screw M6 x 10Socket Head Screw M6 x 10
-
50420240326 Hex. Flanged Screw M8 x 53.5Hex. Flanged Screw M8 x 53.5
-
51233101414 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
52420222425 Temperature SensorTemperature Sensor
-
53420222495 Thermostat. INCLUDES ITEMS 53 TO 54Thermostat. INCLUDES ITEMS 53 TO 54
-
54420650300 Thermostat GasketThermostat Gasket
-
55420222560 Thermostat CoverThermostat Cover
-
56420241751 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
57404146600 Seal WasherSeal Washer
-
58420241751 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
59420650450 Gasket (Valve Cover)Gasket (Valve Cover)
-
60420211835 Valve CoverValve Cover
-
61420922245 Angular TubeAngular Tube
-
62420240906 Hex. Screw M6 x 47.9. INCLUDES ITEMS 62 TO 63Hex. Screw M6 x 47.9. INCLUDES ITEMS 62 TO 63
-
63420260050 Rubber BushingRubber Bushing
-
64420974644 Bayonet Filler Cap. INCLUDES ITEMS 64 TO 65Bayonet Filler Cap. INCLUDES ITEMS 64 TO 65
-
65420650990 Gasket RingGasket Ring
-
66420222610 Formed HoseFormed Hose
-
67420874380 Y-FittingY-Fitting
-
68420222590 FittingFitting
-
69420222600 Formed HoseFormed Hose
-
70420951760 ClampClamp
-
71420940366 Stud M8 x 23Stud M8 x 23
-
72707000008 Spark Plug (NGK/DR8EA)Spark Plug (NGK/DR8EA)
-
73413711400 Loctite 648, 10 mlLoctite 648, 10 ml
