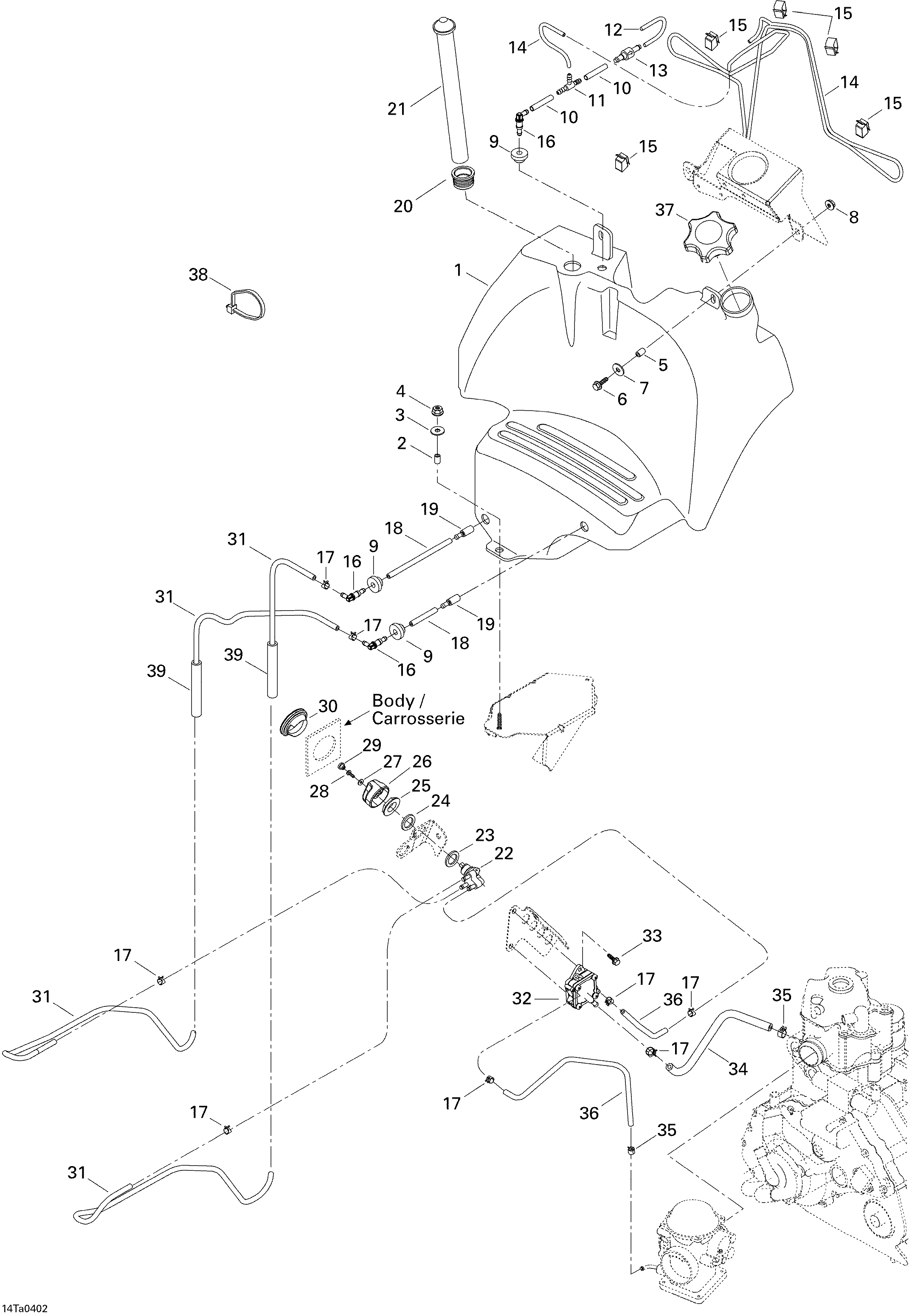

02- Fuel Tank для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1709000025 FUEL TANKFUEL TANK
-
2293900028 BUSHINGBUSHING
-
3234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4233281414 ELASTIC FLANGED NUT M8ELASTIC FLANGED NUT M8
-
5293900029 BUSHINGBUSHING
-
6207662544 HEX FLANGED SCREW M6 X 25HEX FLANGED SCREW M6 X 25
-
7224061201 FLAT WASHERFLAT WASHER
-
8233261414 ELASTIC FLANGED NUT M6ELASTIC FLANGED NUT M6
-
9570045500 GROMMETGROMMET
-
10415080200 POLYURETHANE HOSEPOLYURETHANE HOSE
-
11414222500 T-FITTINGT-FITTING
-
12709000029 VENT HOSEVENT HOSE
-
13275500479 CHECK VALVECHECK VALVE
-
14709000031 VENT HOSEVENT HOSE
-
15414227300 CLIPCLIP
-
16414580600 Elbow Male ConnectorElbow Male Connector
-
17293650042 OETIKER CLAMPOETIKER CLAMP
-
18415080200 POLYURETHANE HOSEPOLYURETHANE HOSE
-
19414865700 FUEL FILTERFUEL FILTER
-
20293720058 FUEL GAUGE GROMMETFUEL GAUGE GROMMET
-
21709000078 FUEL GAUGEFUEL GAUGE
-
22275500098 FUEL VALVEFUEL VALVE
-
23293250004 GASKETGASKET
-
24250200015 WASHERWASHER
-
25212100009 HEX PLASTIC NUTHEX PLASTIC NUT
-
26275500263 FUEL VALVE KNOB (BLACK)FUEL VALVE KNOB (BLACK)
-
27234040600 FLAT WASHER 4 MMFLAT WASHER 4 MM
-
28208640860 PAN HEAD PHILLIPS SCREW M4 X 8PAN HEAD PHILLIPS SCREW M4 X 8
-
29275500241 FUEL CAP VALVE PLUG (BLACK)FUEL CAP VALVE PLUG (BLACK)
-
30709000005 FUEL VALVE GROMMETFUEL VALVE GROMMET
-
31415079800 HOSE 1/4''HOSE 1/4''
-
32707200000 FUEL PUMPFUEL PUMP
-
33210261040 HEX FLANGED FORMING SCREW M6 X 10HEX FLANGED FORMING SCREW M6 X 10
-
34709000024 HOSEHOSE
-
35414415200 SPRING CLAMPSPRING CLAMP
-
36415079800 HOSE 1/4''HOSE 1/4''
-
37513033025 CAPCAP
-
38293750002 Locking Tie 142 mmLocking Tie 142 mm
-
414115200 TIE-RAPTIE-RAP
-
293750008 TIE-RAP 350 MMTIE-RAP 350 MM
-
39409901800 TUBING 13 MMTUBING 13 MM
