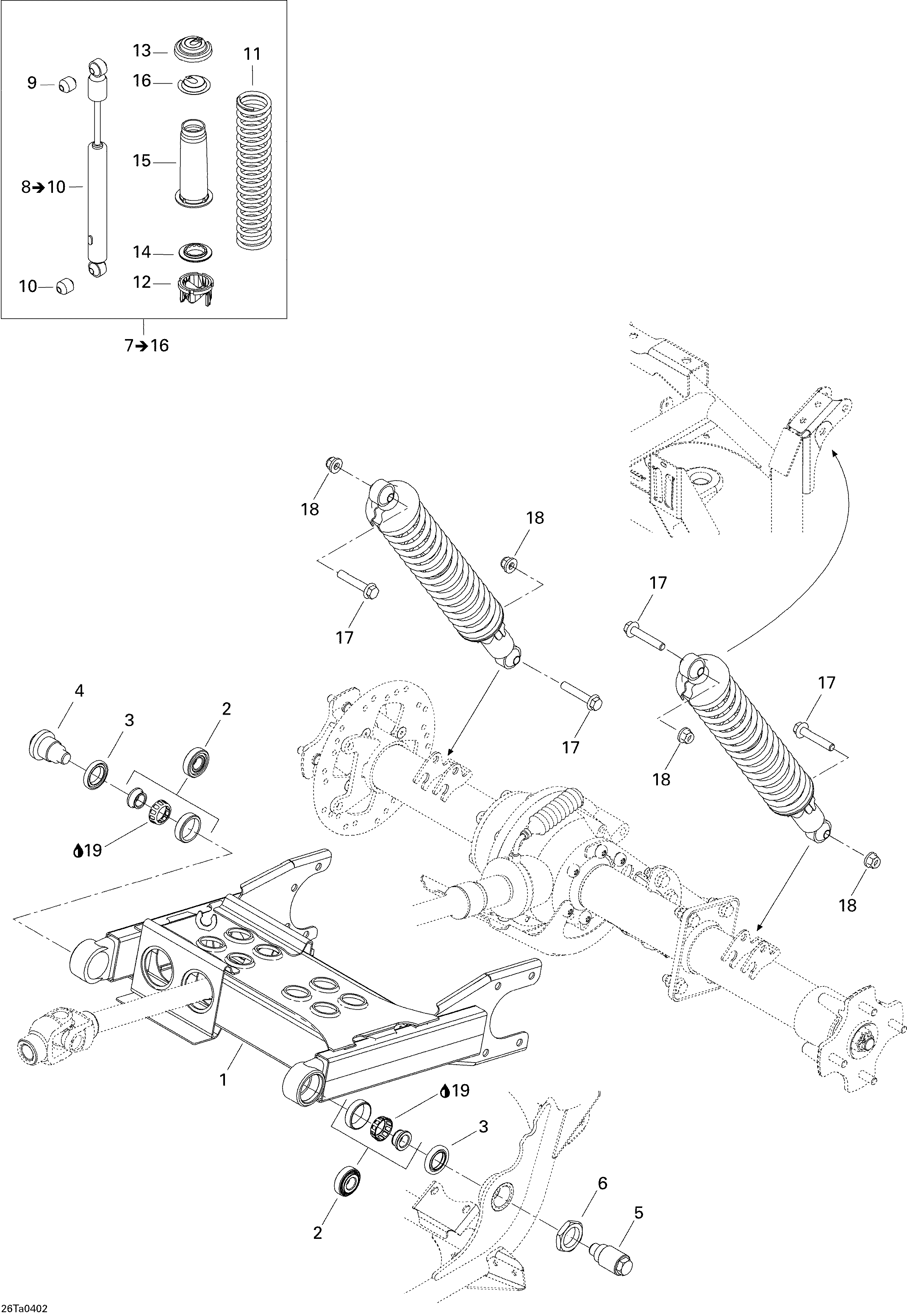

08- Rear Suspension для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1706000298 SWING ARM (BLACK). STD & XTSWING ARM (BLACK). STD & XT
-
2706000169 CONE BEARINGCONE BEARING
-
3706000010 OIL SEALOIL SEAL
-
4706000092 RH PIVOT BOLTRH PIVOT BOLT
-
5706000093 LH PIVOT BOLTLH PIVOT BOLT
-
6706000006 HEX JAM NUTHEX JAM NUT
-
8706000328 REAR SHOCK. INCLUDES ITEMS 8 TO 10REAR SHOCK. INCLUDES ITEMS 8 TO 10
-
9706000146 UPPER BUSHINGUPPER BUSHING
-
10706000147 LOWER BUSHINGLOWER BUSHING
-
11706000301 REAR SPRING (YELLOW)REAR SPRING (YELLOW)
-
12706000317 ADJUSTER RINGADJUSTER RING
-
13503140600 SPRING STOPPERSPRING STOPPER
-
14706000197 SPRING SEATSPRING SEAT
-
15706000032 PROTECTORPROTECTOR
-
16503141600 CAPCAP
-
17207605544 HEX FLANGED SCREW M10 X 55HEX FLANGED SCREW M10 X 55
-
18233201414 HEX FLANGED ELASTIC NUT M10HEX FLANGED ELASTIC NUT M10
-
19293550010 SYNTHETIC GRAISSE, 400 GSYNTHETIC GRAISSE, 400 G
