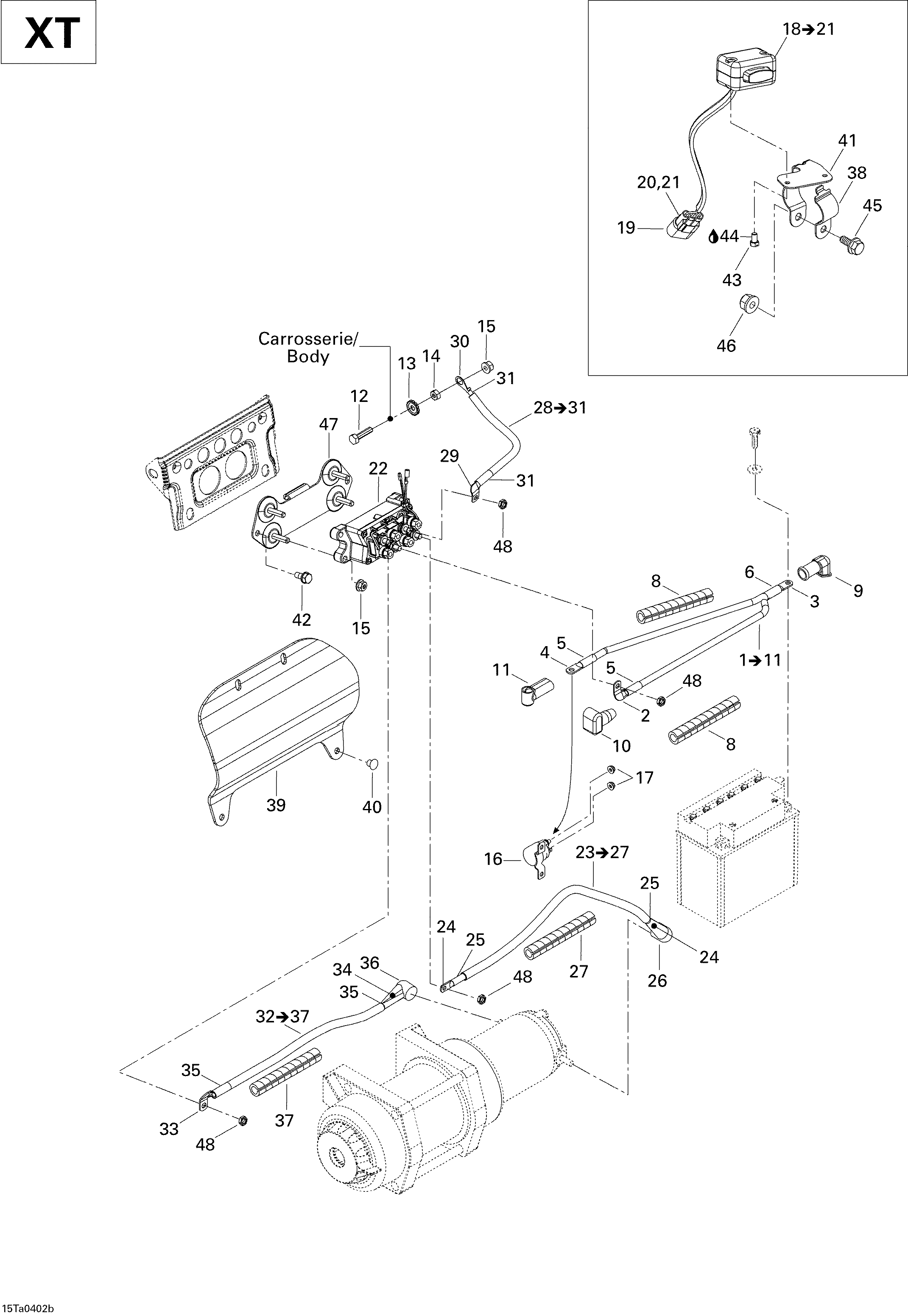

10- Electrical Accessories (XT) для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1710000442 BATTERY STARTER RELAY CABLE. XT / INCLUDES ITEMS 1 TO 11BATTERY STARTER RELAY CABLE. XT / INCLUDES ITEMS 1 TO 11
-
2710000475 OPEN BARIL 6.6 MM. XTOPEN BARIL 6.6 MM. XT
-
3710000478 FLAT OPEN BARIL 6.6 MM. XTFLAT OPEN BARIL 6.6 MM. XT
-
4710000479 FLAT OPEN BARIL 6.6 MM. XTFLAT OPEN BARIL 6.6 MM. XT
-
5710000483 TUBING SHRINK. XTTUBING SHRINK. XT
-
6275500578 TUBING SHRINK. XTTUBING SHRINK. XT
-
7710000488 CODING TAPE (RED). XT / NOT SHOWNCODING TAPE (RED). XT / NOT SHOWN
-
8710000497 PROTECTOR TUBE 9 MM. XTPROTECTOR TUBE 9 MM. XT
-
9710000516 PROTECTOR CAP. XTPROTECTOR CAP. XT
-
10710000523 PROTECTOR CAP. XTPROTECTOR CAP. XT
-
11710000527 PROTECTOR CAP. XTPROTECTOR CAP. XT
-
12207162044 HEX CAP SCREW M6 X 20HEX CAP SCREW M6 X 20
-
13234461608 SERRATED LOCK WASHER 6 MM. XTSERRATED LOCK WASHER 6 MM. XT
-
14232061414 HEX NUT M6HEX NUT M6
-
15233261414 HEX ELASTIC FLANGED NUT M6. XTHEX ELASTIC FLANGED NUT M6. XT
-
16515176011 STARTER RELAYSTARTER RELAY
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18710000405 Winch interrupter. XT / INCLUDES ITEMS 18 TO 21Winch interrupter. XT / INCLUDES ITEMS 18 TO 21
-
19278000281 FEMALE TERMINAL HOUSING (3 CIRCUITS). XTFEMALE TERMINAL HOUSING (3 CIRCUITS). XT
-
20278000222 FEMALE TERMINAL. XTFEMALE TERMINAL. XT
-
21278001065 WIRE SEAL. XTWIRE SEAL. XT
-
22710000409 Winch Solenoid. XTWinch Solenoid. XT
-
23710000438 Winch Solenoid Cable. XT / INCLUDES ITEMS 23 TO 27Winch Solenoid Cable. XT / INCLUDES ITEMS 23 TO 27
-
24710000479 FLAT OPEN BARIL 6.6 MM. XTFLAT OPEN BARIL 6.6 MM. XT
-
25710000483 TUBING SHRINK. XTTUBING SHRINK. XT
-
26710000494 PROTECTOR CAP. XTPROTECTOR CAP. XT
-
27710000497 PROTECTOR SLEEVE. XTPROTECTOR SLEEVE. XT
-
28710000439 FRAME SOLENOID CABLE. XT / INCLUDES ITEMS 28 TO 31FRAME SOLENOID CABLE. XT / INCLUDES ITEMS 28 TO 31
-
29710000475 FLAT OPEN BARIL 6.6 MM. XTFLAT OPEN BARIL 6.6 MM. XT
-
30710000479 FLAT OPEN BARIL 6.6 MM. XTFLAT OPEN BARIL 6.6 MM. XT
-
31710000483 TUBING SHRINK. XTTUBING SHRINK. XT
-
32710000440 Winch Solenoid Cable. XT / INCLUDES ITEMS 32 TO 37Winch Solenoid Cable. XT / INCLUDES ITEMS 32 TO 37
-
33710000476 FLAT OPEN BARIL 6.6 MM. XTFLAT OPEN BARIL 6.6 MM. XT
-
34710000479 FLAT OPEN BARIL 6.6 MM. XTFLAT OPEN BARIL 6.6 MM. XT
-
35710000483 TUBING SHRINK. XTTUBING SHRINK. XT
-
36710000494 PROTECTOR CAP. XTPROTECTOR CAP. XT
-
37710000497 PROTECTOR SLEEVE. XTPROTECTOR SLEEVE. XT
-
38710000566 COLLAR. XTCOLLAR. XT
-
39710000511 PROTECTOR. XTPROTECTOR. XT
-
40293730011 DART (BLACK). XTDART (BLACK). XT
-
41710000564 SUPPORT (BLACK). XTSUPPORT (BLACK). XT
-
42210261080 HEX HEAD FLANGED FORMING SCREW M6 X 10. XTHEX HEAD FLANGED FORMING SCREW M6 X 10. XT
-
43250000153 HEX SLOTTED SCREW 6-32 X 1/4''. XTHEX SLOTTED SCREW 6-32 X 1/4''. XT
-
44293800060 LOCTITE 243, 10 ML. XTLOCTITE 243, 10 ML. XT
-
45207661684 HEX FLANGED SCREW M6 X 16. XTHEX FLANGED SCREW M6 X 16. XT
-
46233261494 Elastic Flanged Nut M6. XTElastic Flanged Nut M6. XT
-
47710000535 SOLENOID SUPPORT (BLACK). XTSOLENOID SUPPORT (BLACK). XT
-
48232561414 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
