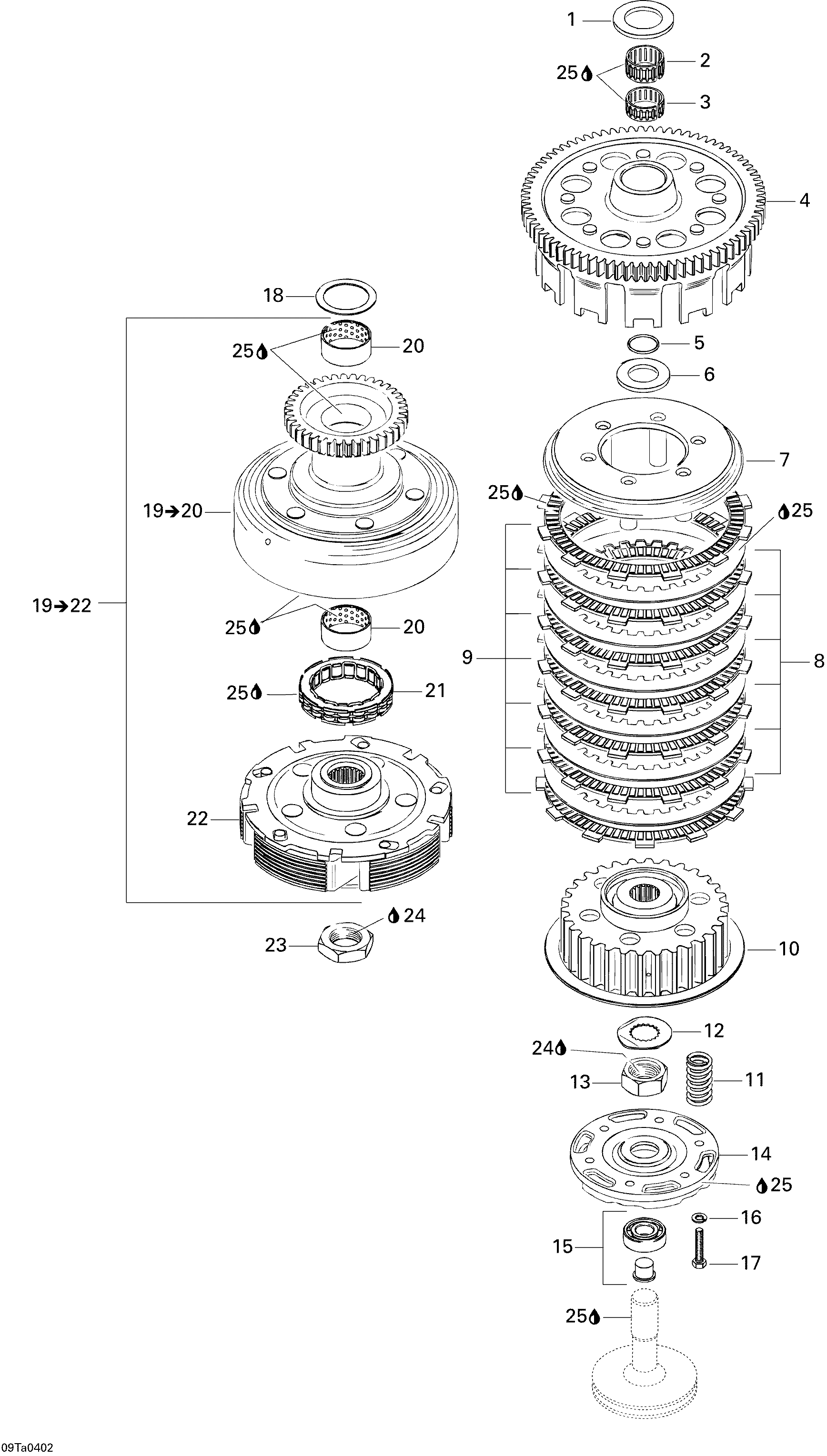

05- Clutch для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1420227390 Thrust WasherThrust Washer
-
2420632070 Needle BearingNeedle Bearing
-
3420232655 Needle CageNeedle Cage
-
4420659203 Clutch DrumClutch Drum
-
5293300018 O-RingO-Ring
-
6420227600 Thrust WasherThrust Washer
-
7420659230 Inner PlateInner Plate
-
8420259915 Plate 1.5 mmPlate 1.5 mm
-
9420259907 Lamella 3 mmLamella 3 mm
-
10420259876 Clutch HubClutch Hub
-
11420239741 Clutch SpringClutch Spring
-
12420245320 Tab WasherTab Washer
-
13420242605 Hex. Nut M18Hex. Nut M18
-
14420259131 Retaining PlateRetaining Plate
-
15420259143 Hub Thrust with Ball BearingHub Thrust with Ball Bearing
-
16420945750 Lock WasherLock Washer
-
17420241770 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
18420427130 Thrust WasherThrust Washer
-
19420296093 Clutch Ass'y. INCLUDES ITEMS 19 TO 22Clutch Ass'y. INCLUDES ITEMS 19 TO 22
-
19420659177 Clutch. INCLUDES ITEMS 19 TO 20Clutch. INCLUDES ITEMS 19 TO 20
-
20420233765 Clutch BushingClutch Bushing
-
21420659240 Sprag ClutchSprag Clutch
-
22420659180 Clutch HubClutch Hub
-
23420842234 Hex. Nut M22Hex. Nut M22
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293600039 Engine Oil 4 Strokes, 5W40, 12 x 1 litersEngine Oil 4 Strokes, 5W40, 12 x 1 liters
