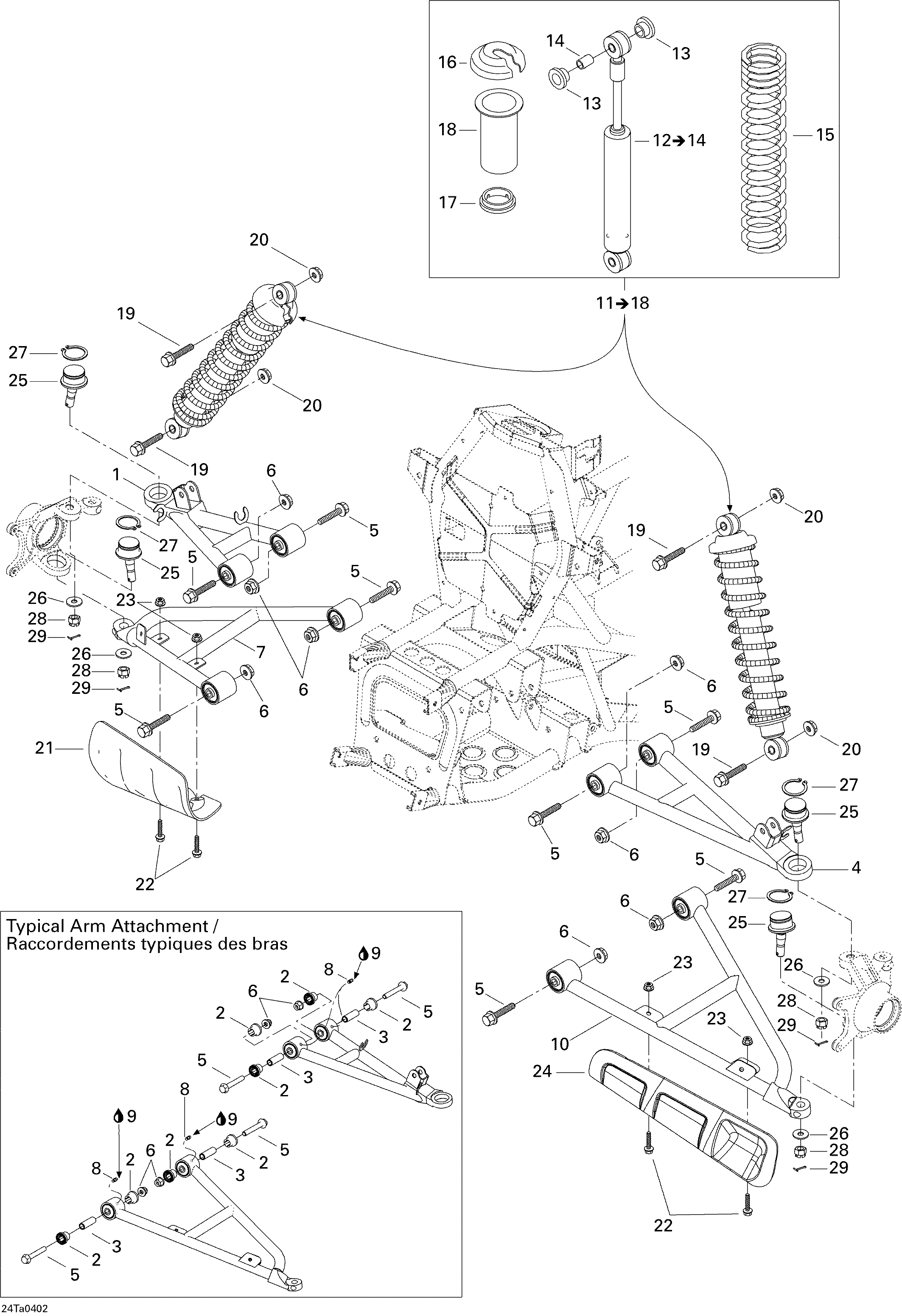

07- Front Suspension для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1706200318 RH UPPER ARM (BLACK)RH UPPER ARM (BLACK)
-
2706200181 CUSHIONCUSHION
-
3706200182 INNER BUSHINGINNER BUSHING
-
4706200320 LH UPPER ARM (BLACK)LH UPPER ARM (BLACK)
-
5207607046 HEX FLANGED SCREW M10 X 70HEX FLANGED SCREW M10 X 70
-
6233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
7706200360 RH Lower Arm (Black)RH Lower Arm (Black)
-
8408200700 GREASE FITTINGGREASE FITTING
-
9293550010 SYNTHETIC GREASE, 400 GSYNTHETIC GREASE, 400 G
-
10706200365 LH Lower Arm (Black)LH Lower Arm (Black)
-
12706200300 FRONT SHOCK. INCLUDES ITEMS 112 TO 14FRONT SHOCK. INCLUDES ITEMS 112 TO 14
-
13706200185 CUSHIONCUSHION
-
14706200186 BUSHINGBUSHING
-
15706200301 FRONT SPRINGFRONT SPRING
-
16503140600 SPRING STOPPERSPRING STOPPER
-
17706000197 SPRING SEATSPRING SEAT
-
18503139800 PROTECTORPROTECTOR
-
19207604544 HEX FLANGED SCREW M10 X 45HEX FLANGED SCREW M10 X 45
-
20233201414 HEX FLANGED ELASTIC NUT M10HEX FLANGED ELASTIC NUT M10
-
21706200179 ARM PROTECTORARM PROTECTOR
-
22207661644 HEX FLANGED SCREW M6 X 16HEX FLANGED SCREW M6 X 16
-
23233261414 HEX FLANGED ELASTIC NUT M6HEX FLANGED ELASTIC NUT M6
-
24706200180 ARM PROTECTORARM PROTECTOR
-
25706200091 BALL JOINTBALL JOINT
-
26706200281 HARD WASHERHARD WASHER
-
27293370009 CIRCLIPCIRCLIP
-
28232221414 HEX CASTELLATED NUT M12HEX CASTELLATED NUT M12
-
29211400017 COTTER PINCOTTER PIN
