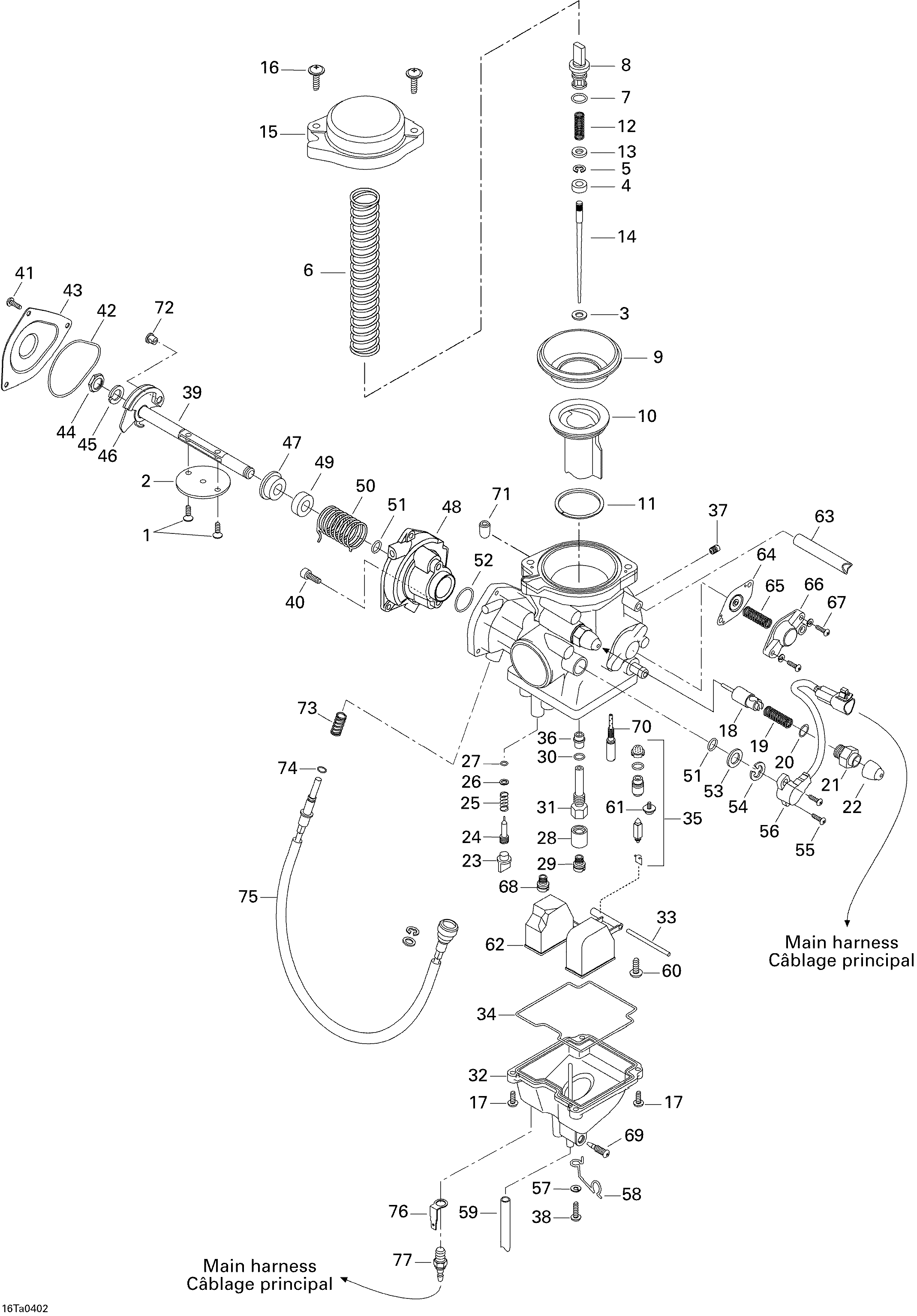

02- Carburetor для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1707000363 CARBURETOR. INCLUDES ITEMS 1 TO 77CARBURETOR. INCLUDES ITEMS 1 TO 77
-
3707200064 WASHERWASHER
-
4707200065 RINGRING
-
5404152200 E-RINGE-RING
-
6707200066 SPRINGSPRING
-
7270500144 O-RINGO-RING
-
8707200067 HOLDERHOLDER
-
9707200068 DIAPHRAGMDIAPHRAGM
-
10707200069 PISTON VALVEPISTON VALVE
-
11707200070 RINGRING
-
12707200071 SPRINGSPRING
-
13707200072 WASHERWASHER
-
14707200167 NEEDLE J8-5FIY03-52NEEDLE J8-5FIY03-52
-
15707200086 DIAPHRAGM COVERDIAPHRAGM COVER
-
16707200085 SCREWSCREW
-
17707200153 SCREWSCREW
-
18707200170 PLUNGER ASS'YPLUNGER ASS'Y
-
19707200144 SPRINGSPRING
-
20404140200 O-RINGO-RING
-
21707200009 HOLDER GUIDEHOLDER GUIDE
-
22707200010 CAPCAP
-
23707200004 CAPCAP
-
24707200077 ADJUSTERADJUSTER
-
25707200078 SPRINGSPRING
-
26707200018 WASHERWASHER
-
27404139900 O-RINGO-RING
-
28707200079 RINGRING
-
29270500251 MAIN JET 140.0MAIN JET 140.0
-
30270500119 O-RINGO-RING
-
31707200080 JET HOLDERJET HOLDER
-
32707200081 FLOAT BODY ASS'YFLOAT BODY ASS'Y
-
33404123400 PINPIN
-
34707200083 O-RINGO-RING
-
35707200082 NEEDLE VALVE 1.0NEEDLE VALVE 1.0
-
36707200084 NEEDLE JETNEEDLE JET
-
37707200087 PILOT JET 60.0PILOT JET 60.0
-
38404138700 SCREWSCREW
-
41707200091 SCREWSCREW
-
42707200092 O-RINGO-RING
-
43707200093 COVERCOVER
-
49707200154 RINGRING
-
55707200155 SCREWSCREW
-
56707200156 SENSOR ASS'YSENSOR ASS'Y
-
57707200101 WASHERWASHER
-
58707200102 CLIPCLIP
-
59707200041 HOSEHOSE
-
60404138600 SCREWSCREW
-
61404161861 SCREWSCREW
-
62707200103 FLOAT ASS'YFLOAT ASS'Y
-
63707200104 HOSEHOSE
-
64707200106 DIAPHRAGM ASS'YDIAPHRAGM ASS'Y
-
65707200160 POWER INRICHMENT SPRINGPOWER INRICHMENT SPRING
-
66707200105 COVER ASS'YCOVER ASS'Y
-
67404901400 SCREWSCREW
-
68707200152 MAIN JET 50.0MAIN JET 50.0
-
69707200024 SCREWSCREW
-
70707200168 PILOT JET 35.0PILOT JET 35.0
-
71404154900 CAPCAP
-
72707200058 CABLE GUIDECABLE GUIDE
-
73404101700 SPRINGSPRING
-
74707200141 WASHERWASHER
-
75707200146 ADJUSTER CABLEADJUSTER CABLE
-
76707200164 TERMINALTERMINAL
-
77707200163 HEATER ELEMENTHEATER ELEMENT
