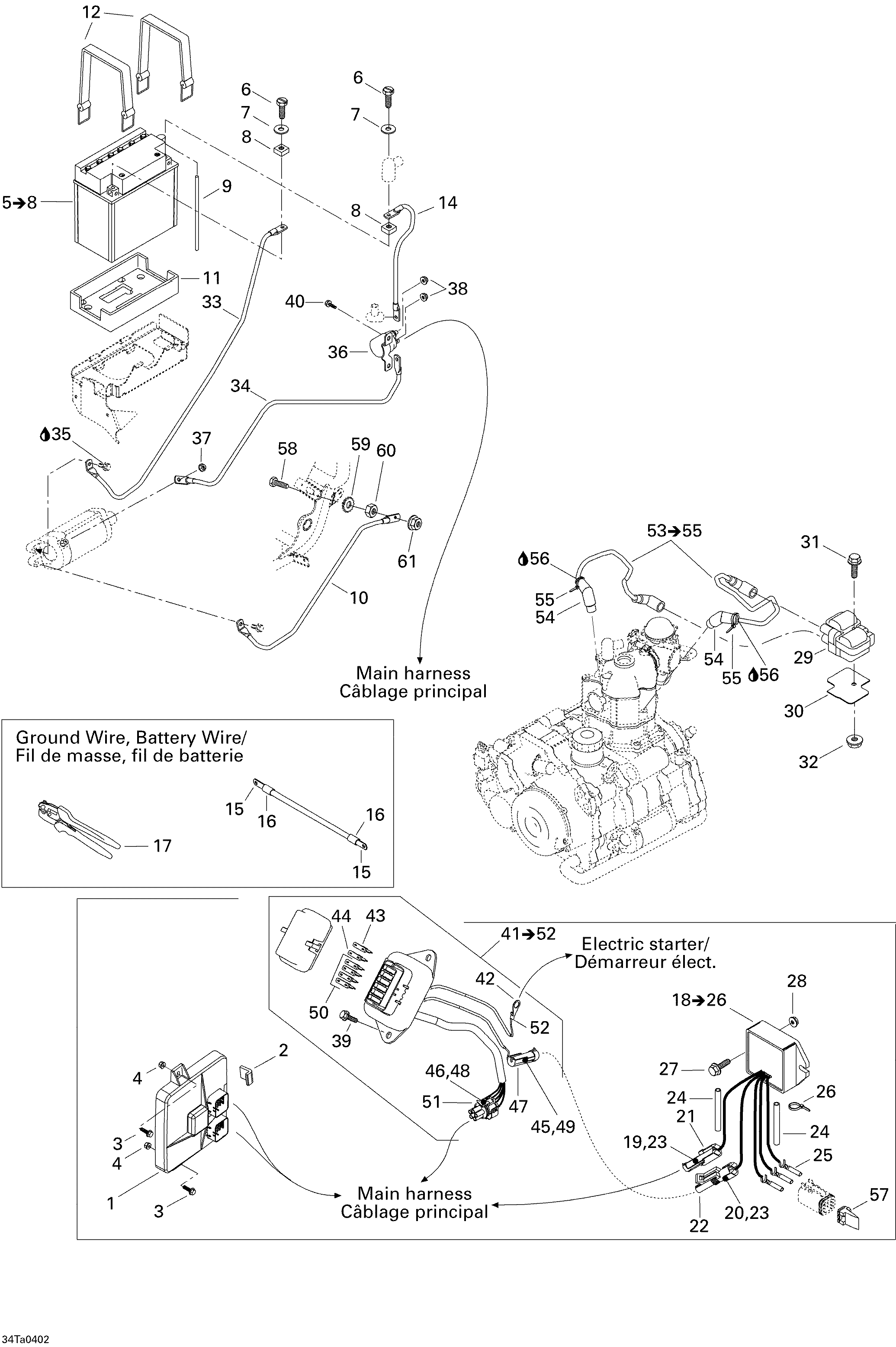

10- Battery And Electrical Accessories для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1710000315 ELECTRONIC MODULEELECTRONIC MODULE
-
2278001166 MODULE PROTECTORMODULE PROTECTOR
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233261414 HEX FLANGED ELASTIC NUT M6HEX FLANGED ELASTIC NUT M6
-
5278001756 BATTERY. INCLUDES ITEMS 5 TO 8BATTERY. INCLUDES ITEMS 5 TO 8
-
6211000045 BATTERY SCREWBATTERY SCREW
-
7211200018 FLAT WASHER 6 MMFLAT WASHER 6 MM
-
8211100022 BATTERY NUT M6BATTERY NUT M6
-
9415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
10710000022 BATTERY GROUND CABLEBATTERY GROUND CABLE
-
11278001746 LOWER BATTERY PADLOWER BATTERY PAD
-
12293850080 RUBBER STRAPRUBBER STRAP
-
13278001680 GROUND WIRE BATTERY (NO. 6) (METER)GROUND WIRE BATTERY (NO. 6) (METER)
-
14278001690 RED CABLE BATTERY (NO.6) (METER)RED CABLE BATTERY (NO.6) (METER)
-
15278001682 FLAT TERMINAL (SMALL HOLE)FLAT TERMINAL (SMALL HOLE)
-
278001683 TERMINAL 45° (SMALL HOLE)TERMINAL 45° (SMALL HOLE)
-
278001684 TERMINAL 90° (SMALL HOLE)TERMINAL 90° (SMALL HOLE)
-
278001685 FLAT TERMINAL (BIG HOLE)FLAT TERMINAL (BIG HOLE)
-
278001686 TERMINAL 45° (BIG HOLE)TERMINAL 45° (BIG HOLE)
-
278001687 TERMINAL 90° (BIG HOLE)TERMINAL 90° (BIG HOLE)
-
278001688 FLAT TERMINALFLAT TERMINAL
-
278001776 TERMINAL 30° (2 HOLES)TERMINAL 30° (2 HOLES)
-
16278001692 HEAT SHRINKHEAT SHRINK
-
17529035730 CRIMP PLIERCRIMP PLIER
-
18710000100 VOLT REGULATOR ASS'Y. INCLUDES ITEMS 18 TO 26VOLT REGULATOR ASS'Y. INCLUDES ITEMS 18 TO 26
-
19278000222 MALE TERMINALMALE TERMINAL
-
20278000223 FEMALE TERMINALFEMALE TERMINAL
-
21278000161 FEMALE TERMINAL HOUSING (1 CIRCUIT)FEMALE TERMINAL HOUSING (1 CIRCUIT)
-
22278000219 MALE TERMINAL HOUSING (1 CIRCUIT)MALE TERMINAL HOUSING (1 CIRCUIT)
-
23278000218 WIRE SEALWIRE SEAL
-
24409901300 LOW TEMPERATURE VINYL TUBINGLOW TEMPERATURE VINYL TUBING
-
25710000034 FEMALE TERMINALFEMALE TERMINAL
-
26293750001 TIE-RAP 94 MMTIE-RAP 94 MM
-
27207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
28233261414 HEX FLANGED ELASTIC NUT M6HEX FLANGED ELASTIC NUT M6
-
29278001546 Ignition CoilIgnition Coil
-
30710000073 INSULATOR PADINSULATOR PAD
-
31207665044 HEX FLANGED SCREW M6 X 50HEX FLANGED SCREW M6 X 50
-
32233261414 HEX FLANGED ELASTIC NUT M6HEX FLANGED ELASTIC NUT M6
-
33710000211 ENGINE GROUND CABLEENGINE GROUND CABLE
-
34710000136 STARTER POSITIVE CABLESTARTER POSITIVE CABLE
-
35293800060 LOCTITE 243, 10 MLLOCTITE 243, 10 ML
-
36515176011 STARTER RELAYSTARTER RELAY
-
37232561600 ELASTIC STOP NUT M6ELASTIC STOP NUT M6
-
38232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
39210261680 HEX FLANGED FORMING SCREW M6 X 16HEX FLANGED FORMING SCREW M6 X 16
-
40250000061 HEX SELF-THREADED SCREW 1/4-20 X 3/4HEX SELF-THREADED SCREW 1/4-20 X 3/4
-
41710000579 FUSE HOLDER. INCLUDES ITEMS 41 TO 52FUSE HOLDER. INCLUDES ITEMS 41 TO 52
-
42278001392 OPEN BARRELOPEN BARREL
-
43410917200 FUSE (30 AMPERES)FUSE (30 AMPERES)
-
44409003900 FUSE (20 AMPERES)FUSE (20 AMPERES)
-
45409004300 MALE TERMINALMALE TERMINAL
-
46409007300 FEMALE TERMINALFEMALE TERMINAL
-
47278000161 FEMALE TERMINAL HOUSING (1 CIRCUIT)FEMALE TERMINAL HOUSING (1 CIRCUIT)
-
48278000218 WIRE SEALWIRE SEAL
-
49710000048 WIRE SEALWIRE SEAL
-
50278000343 FUSE (15 AMPERES)FUSE (15 AMPERES)
-
51710000106 FEMALE TERMINAL HOUSING (5 CIRCUITS)FEMALE TERMINAL HOUSING (5 CIRCUITS)
-
52710000482 TUBING SHRINKTUBING SHRINK
-
53710000039 SPARK WIRE ASS'Y. INCLUDES ITEMS 53 TO 55SPARK WIRE ASS'Y. INCLUDES ITEMS 53 TO 55
-
54710000041 SPARK PLUG CAP (BLACK)SPARK PLUG CAP (BLACK)
-
55293750001 TIE-RAP 94 MMTIE-RAP 94 MM
-
56293550004 DIELECTRIC GREASE,150 GDIELECTRIC GREASE,150 G
-
57515175678 FEMALE LOCK (6 CIRCUITS)FEMALE LOCK (6 CIRCUITS)
-
58207162044 HEX CAP SCREW M6 X 20HEX CAP SCREW M6 X 20
-
59234461608 SERRATED LOCK WASHER 6 MMSERRATED LOCK WASHER 6 MM
-
60232061414 HEX NUT M6HEX NUT M6
-
61233261414 HEX ELASTIC FLANGED NUT M6HEX ELASTIC FLANGED NUT M6
