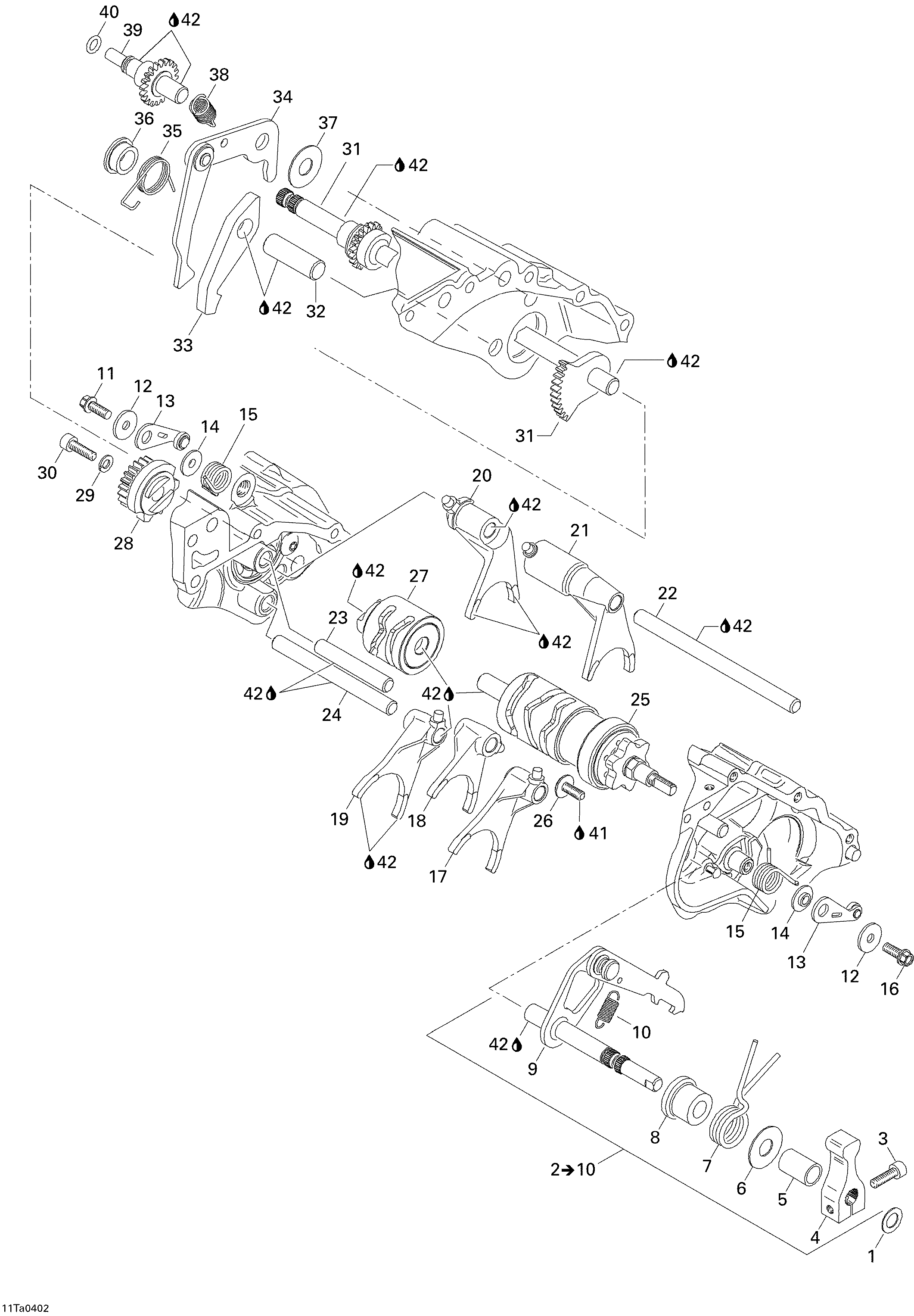

05- Gear Shift для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1420627100 Thrust WasherThrust Washer
-
2420220537 Shift Shaft Ass'y. Includes 2 to 10Shift Shaft Ass'y. Includes 2 to 10
-
3205062544 Socket Screw M6 x 25Socket Screw M6 x 25
-
4711257090 Gear Shift LeverGear Shift Lever
-
5711247020 Distance SleeveDistance Sleeve
-
6711227980 Thrust WasherThrust Washer
-
7711239084 Shaft SpringShaft Spring
-
8711247050 Collar SleeveCollar Sleeve
-
9711220536 Shift Shaft With Pawl Ass'yShift Shaft With Pawl Ass'y
-
10711239540 Tension SpringTension Spring
-
11420241751 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
13703500189 Index Lever KitIndex Lever Kit
-
14420227710 BushingBushing
-
15420239560 Index Lever SpringIndex Lever Spring
-
16420241751 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
17420258402 Shift ForkShift Fork
-
18420258412 Shift ForkShift Fork
-
19420258392 Shift ForkShift Fork
-
20420258424 Shift ForkShift Fork
-
21420258434 Shift ForkShift Fork
-
22420257080 Gear Shift RodGear Shift Rod
-
23420229470 Cylindrical Pin M10 x 65Cylindrical Pin M10 x 65
-
24420229480 Cylindrical Pin M10 x 100Cylindrical Pin M10 x 100
-
25420257107 Shift Drum Ass'yShift Drum Ass'y
-
26420241531 Scew M6 x 13Scew M6 x 13
-
27420257111 Shift DrumShift Drum
-
28420257130 Index GearIndex Gear
-
29420445331 Lock WasherLock Washer
-
30205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
31420220585 Shift Shaft Ass'yShift Shaft Ass'y
-
32420220600 ShaftShaft
-
33420258621 Park Locking LeverPark Locking Lever
-
34420258475 Actuating LeverActuating Lever
-
35420239550 Helical SpringHelical Spring
-
36420247040 Collar SleeveCollar Sleeve
-
37420227980 Thrust WasherThrust Washer
-
38420239591 Tension SpringTension Spring
-
39420220545 Indicator ShaftIndicator Shaft
-
40420430800 O-RingO-Ring
-
41293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
42293600039 Engine Oil 4 Strokes, 5W40, 12 x 1 litersEngine Oil 4 Strokes, 5W40, 12 x 1 liters
