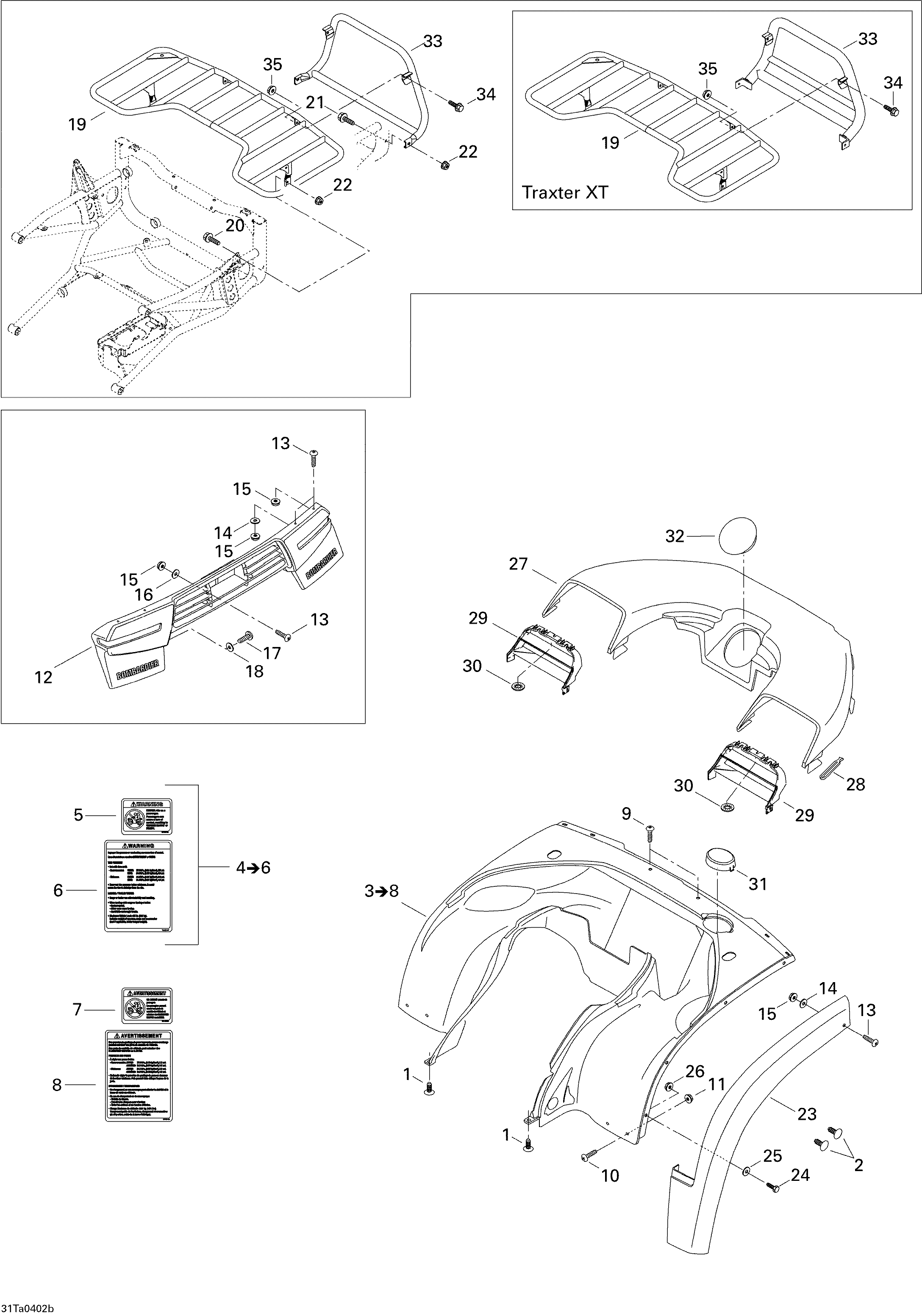

09- Body And Accessories, Rear View для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1293730011 DART (BLACK)DART (BLACK)
-
2293730011 DART (BLACK)DART (BLACK)
-
3703500112 REAR FENDER (YELLOW). YELLOW / INCLUDES ITEMS 3 TO 8REAR FENDER (YELLOW). YELLOW / INCLUDES ITEMS 3 TO 8
-
703500217 REAR FENDER (RED). VIPER RED / INCLUDES ITEMS 3 TO 8REAR FENDER (RED). VIPER RED / INCLUDES ITEMS 3 TO 8
-
703500317 REAR FENDER (GREEN). LAURENTIAN GREEN / INCLUDES ITEMS 3 TO 8REAR FENDER (GREEN). LAURENTIAN GREEN / INCLUDES ITEMS 3 TO 8
-
4704900116 WARNING LABEL ASS'Y. ENGLISH / INCLUDES ITEMS 4 TO 6WARNING LABEL ASS'Y. ENGLISH / INCLUDES ITEMS 4 TO 6
-
5704900005 WARNING LABEL (PASSENGER). ENGLISHWARNING LABEL (PASSENGER). ENGLISH
-
6704900117 WARNING LABEL (TIRE PRESSURE). ENGLISHWARNING LABEL (TIRE PRESSURE). ENGLISH
-
7704900006 WARNING LABEL (PASSENGER). FRENCHWARNING LABEL (PASSENGER). FRENCH
-
8704900120 WARNING LABEL (TIRE PRESSURE). FRENCHWARNING LABEL (TIRE PRESSURE). FRENCH
-
9732600009 PAN HEAD FORMING SCREW M6 X 18PAN HEAD FORMING SCREW M6 X 18
-
10211000123 TRUSS PHILLIPS SCREW M6 X 20TRUSS PHILLIPS SCREW M6 X 20
-
11233261414 HEX FLANGED ELASTIC NUT M6HEX FLANGED ELASTIC NUT M6
-
12705000709 REAR FACIA (SLATE GRAY)REAR FACIA (SLATE GRAY)
-
13211000123 TRUSS PHILLIPS SCREW M6 X 20TRUSS PHILLIPS SCREW M6 X 20
-
14224060201 FLAT WASHERFLAT WASHER
-
15233261414 HEX FLANGED ELASTIC NUT M6HEX FLANGED ELASTIC NUT M6
-
16224060201 FLAT WASHERFLAT WASHER
-
17732600009 PAN HEAD FORMING SCREW M6 X 18PAN HEAD FORMING SCREW M6 X 18
-
18224061121 FLAT WASHERFLAT WASHER
-
19705000622 REAR LUGGAGE RACK (BLACK)REAR LUGGAGE RACK (BLACK)
-
20207682044 HEX FLANGED SCREW M8 X 20HEX FLANGED SCREW M8 X 20
-
21207685044 HEX FLANGED SCREW M8 X 50HEX FLANGED SCREW M8 X 50
-
22233281414 HEX FLANGED ELASTIC NUT M8HEX FLANGED ELASTIC NUT M8
-
23705000829 RH REAR MUDGUARDRH REAR MUDGUARD
-
705000830 LH REAR MUDGUARDLH REAR MUDGUARD
-
24207162044 HEX CAP SCREW M6 X 20HEX CAP SCREW M6 X 20
-
25224060201 FLAT WASHERFLAT WASHER
-
26233261414 HEX FLANGED ELASTIC NUT M6HEX FLANGED ELASTIC NUT M6
-
27705000179 FENDER COVER (YELLOW). YELLOWFENDER COVER (YELLOW). YELLOW
-
705000576 FENDER COVER (RED). VIPER REDFENDER COVER (RED). VIPER RED
-
705000831 FENDER COVER (GREEN). LAURENTIAN GREENFENDER COVER (GREEN). LAURENTIAN GREEN
-
28570023800 Windshield LatchWindshield Latch
-
29705000181 RH GRILL (BLACK)RH GRILL (BLACK)
-
705000180 LH GRILL (BLACK)LH GRILL (BLACK)
-
30250100000 PUSH NUTPUSH NUT
-
31705000132 COVER (BLACK)COVER (BLACK)
-
32705000207 CAPCAP
-
33705000799 REAR BUMPER (BLACK). XTREAR BUMPER (BLACK). XT
-
34705000602 REAR BUMPER (BLACK). STDREAR BUMPER (BLACK). STD
-
35207682046 HEX FLANGED SCREW M8 X 20HEX FLANGED SCREW M8 X 20
