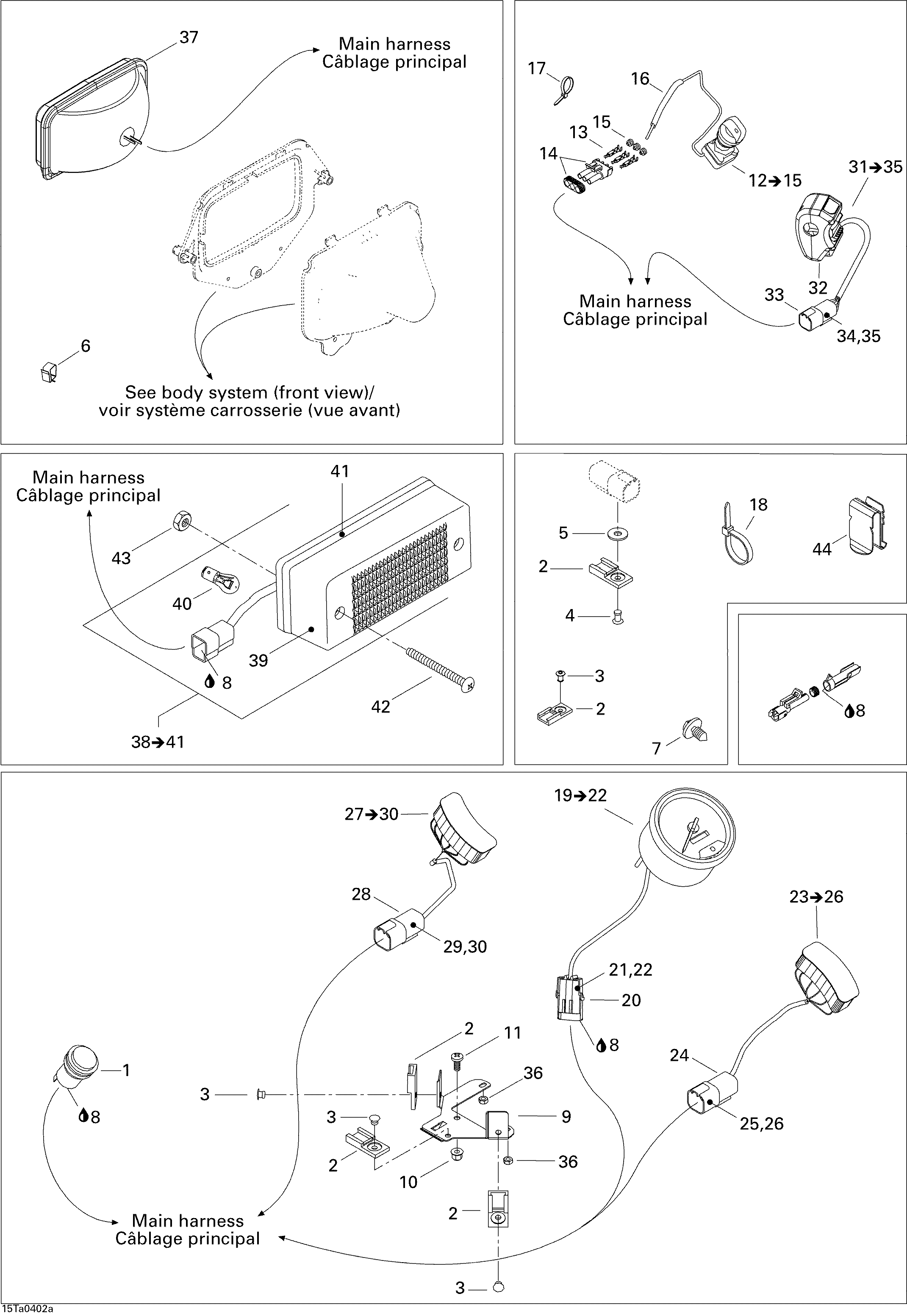

10- Electrical Accessories для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1861507200 POWER OUTLET KIT (12 VOLTS)POWER OUTLET KIT (12 VOLTS)
-
2270000141 CLIPCLIP
-
3390402400 POP-RIVET 3/16''POP-RIVET 3/16''
-
4390402300 POP-RIVET 3/16''POP-RIVET 3/16''
-
5391301600 WASHERWASHER
-
6414227300 CLIPCLIP
-
7293730018 MOUNT DARTMOUNT DART
-
8293550004 DIELECTRIC GREASE,150 GDIELECTRIC GREASE,150 G
-
9710000159 HOUSING SUPPORT (BLACK)HOUSING SUPPORT (BLACK)
-
10232551414 ELASTIC STOP NUT M5ELASTIC STOP NUT M5
-
11208651241 PAN HEAD PHILLIPS SCREW M5 X 12PAN HEAD PHILLIPS SCREW M5 X 12
-
12710000042 IGNITION SWITCH ASS'Y. INCLUDES ITEMS 12 TO 15IGNITION SWITCH ASS'Y. INCLUDES ITEMS 12 TO 15
-
12710000137 Blank Key (''A'' Type). INCLUDES ITEMS 12 TO 15Blank Key (''A'' Type). INCLUDES ITEMS 12 TO 15
-
12710000101 Blank Key (''B'' Type). INCLUDES ITEMS 12 TO 15Blank Key (''B'' Type). INCLUDES ITEMS 12 TO 15
-
13278000223 FEMALE TERMINALFEMALE TERMINAL
-
14278000273 MALE TERMINAL HOUSING (3 CIRCUITS)MALE TERMINAL HOUSING (3 CIRCUITS)
-
15278000218 WIRE SEALWIRE SEAL
-
16710000171 PROTECTOR TUBEPROTECTOR TUBE
-
17293750002 Locking Tie 142 mmLocking Tie 142 mm
-
18293750008 TIE-RAP 350 MMTIE-RAP 350 MM
-
18293750002 Locking Tie 142 mmLocking Tie 142 mm
-
18414115200 TIE-RAP. XTTIE-RAP. XT
-
18414115200 TIE-RAPTIE-RAP
-
19710000524 SPEEDOMETER. INCLUDES ITEMS 19 TO 22SPEEDOMETER. INCLUDES ITEMS 19 TO 22
-
20278001479 MALE TERMINAL HOUSING (3 CIRCUITS)MALE TERMINAL HOUSING (3 CIRCUITS)
-
21278000222 MALE TERMINALMALE TERMINAL
-
22278000218 TERMINAL SEALTERMINAL SEAL
-
23710000420 RH WARNING LIGHT. INCLUDES ITEMS 23 TO 36RH WARNING LIGHT. INCLUDES ITEMS 23 TO 36
-
24409015200 MALE TERMINAL HOUSING (6 CIRCUITS)MALE TERMINAL HOUSING (6 CIRCUITS)
-
25409014600 MALE LOCK (6 CIRCUITS)MALE LOCK (6 CIRCUITS)
-
26409014800 MALE TERMINALMALE TERMINAL
-
27710000418 LH WARNING LIGHT. INCLUDES ITEMS 27 TO 30LH WARNING LIGHT. INCLUDES ITEMS 27 TO 30
-
28409015200 MALE TERMINAL HOUSING (6 CIRCUITS)MALE TERMINAL HOUSING (6 CIRCUITS)
-
29409014600 MALE LOCK (6 CIRCUITS)MALE LOCK (6 CIRCUITS)
-
30409014800 MALE TERMINALMALE TERMINAL
-
31710000088 MULTI-FUNCTION SWITCH. INCLUDES ITEMS 31 TO 35MULTI-FUNCTION SWITCH. INCLUDES ITEMS 31 TO 35
-
32710000173 BACK COVERBACK COVER
-
33409015200 MALE TERMINAL HOUSING (6 CIRCUITS)MALE TERMINAL HOUSING (6 CIRCUITS)
-
34409014600 MALE LOCK (6 CIRCUITS)MALE LOCK (6 CIRCUITS)
-
35409014800 MALE TERMINALMALE TERMINAL
-
36211100051 ELASTIC STOP NUT 8-32ELASTIC STOP NUT 8-32
-
37710000001 HEADLAMPHEADLAMP
-
38710000102 TAIL LIGHT HOUSING. INCLUDES ITEMS 38 TO 41TAIL LIGHT HOUSING. INCLUDES ITEMS 38 TO 41
-
39710000055 TAIL LIGHT LENS (RED)TAIL LIGHT LENS (RED)
-
40410504100 TAIL LIGHT BULBTAIL LIGHT BULB
-
41710000129 GASKETGASKET
-
42208656091 PAN HEAD PHILLIPS SCREW M5 X 60PAN HEAD PHILLIPS SCREW M5 X 60
-
43233251414 HEX ELASTIC FLANGED NUT M5HEX ELASTIC FLANGED NUT M5
-
44409014200 CLIPCLIP
