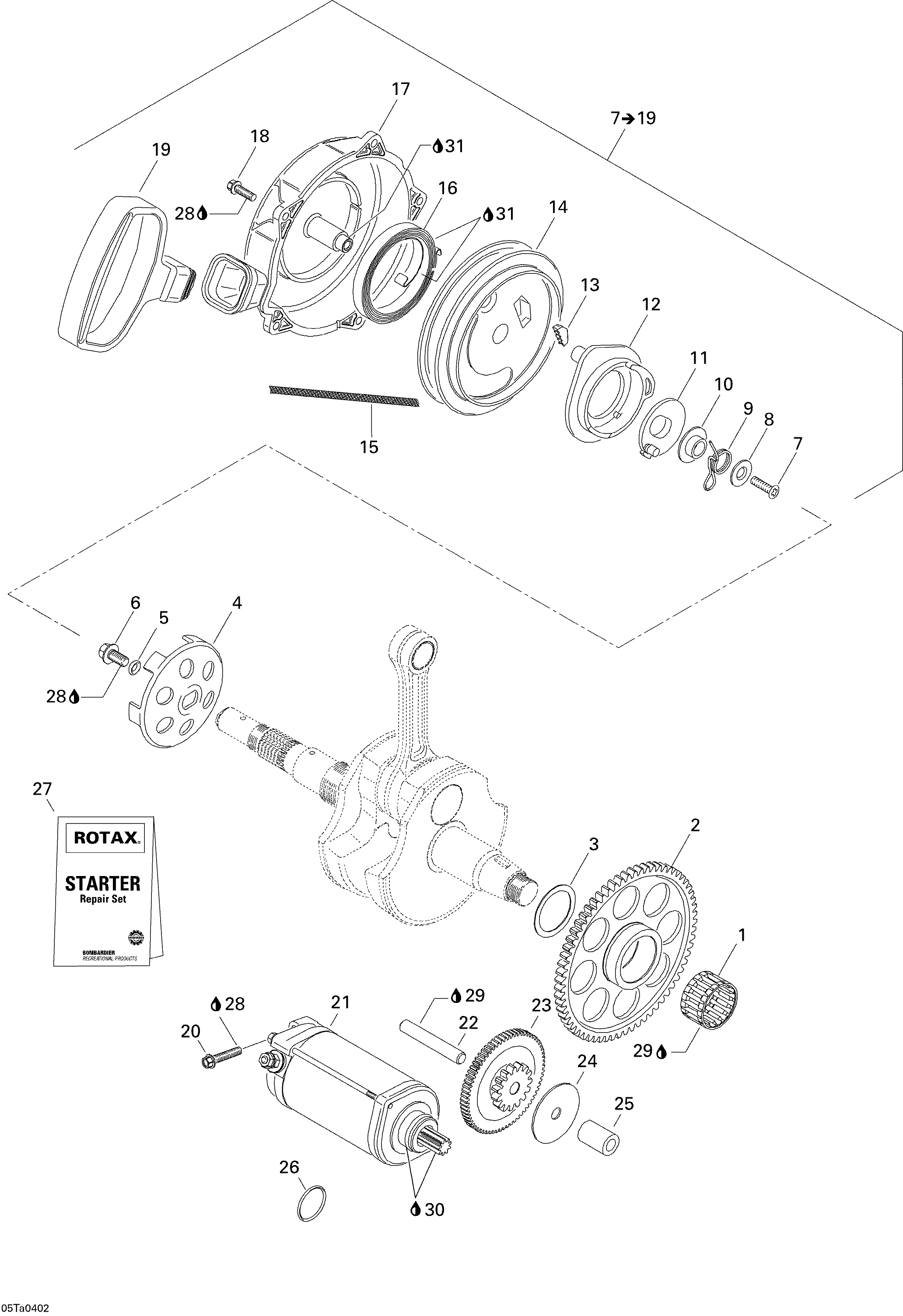

04- Rewind Starter, Electric Starter для BRP Traxter Auto Std & XT - 2004
-
№АртикулНазвание
-
1420632190 Needle CageNeedle Cage
-
2420634941 Ring Gear 65 TeethRing Gear 65 Teeth
-
3420244290 Thrust WasherThrust Washer
-
4420852501 Starting PulleyStarting Pulley
-
5420650710 O-RingO-Ring
-
6420241720 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
7420296150 Rewind Starter Ass'y. INCLUDES ITEMS 7 TO 19Rewind Starter Ass'y. INCLUDES ITEMS 7 TO 19
-
7A420241730 Screw Plastite M6 x 20Screw Plastite M6 x 20
-
8420244320 Flat WasherFlat Washer
-
9420938989 Locking SpringLocking Spring
-
10420847927 Stage SleeveStage Sleeve
-
11420852306 Pawl LockPawl Lock
-
12420852299 PawlPawl
-
13420852070 Key ClampKey Clamp
-
14420852283 Rope SheaveRope Sheave
-
15412500200 Starter Rope 2200 mm (Meter)Starter Rope 2200 mm (Meter)
-
16420939115 Rewind SpringRewind Spring
-
17420211960 Starter Rope HousingStarter Rope Housing
-
18420241861 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
19420852515 Starting GripStarting Grip
-
20420241941 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
21420296125 Electric Starter Ass'yElectric Starter Ass'y
-
21420266295 Brush Kit (Not shown)Brush Kit (Not shown)
-
21420250140 Starter O-ring (Not shown)Starter O-ring (Not shown)
-
21420250130 Starter Seal (Not shown)Starter Seal (Not shown)
-
22420229470 Cylindrical Pin M10 x 65Cylindrical Pin M10 x 65
-
23420634970 Double Gear 15/67 TeethDouble Gear 15/67 Teeth
-
24420227620 Thrust WasherThrust Washer
-
25420847485 SpacerSpacer
-
26420250140 O-RingO-Ring
-
27420266295 Brush KitBrush Kit
-
28293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
29293600039 Engine Oil 4 Strokes, 5W40, 12 x 1 litersEngine Oil 4 Strokes, 5W40, 12 x 1 liters
-
30420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
31420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
