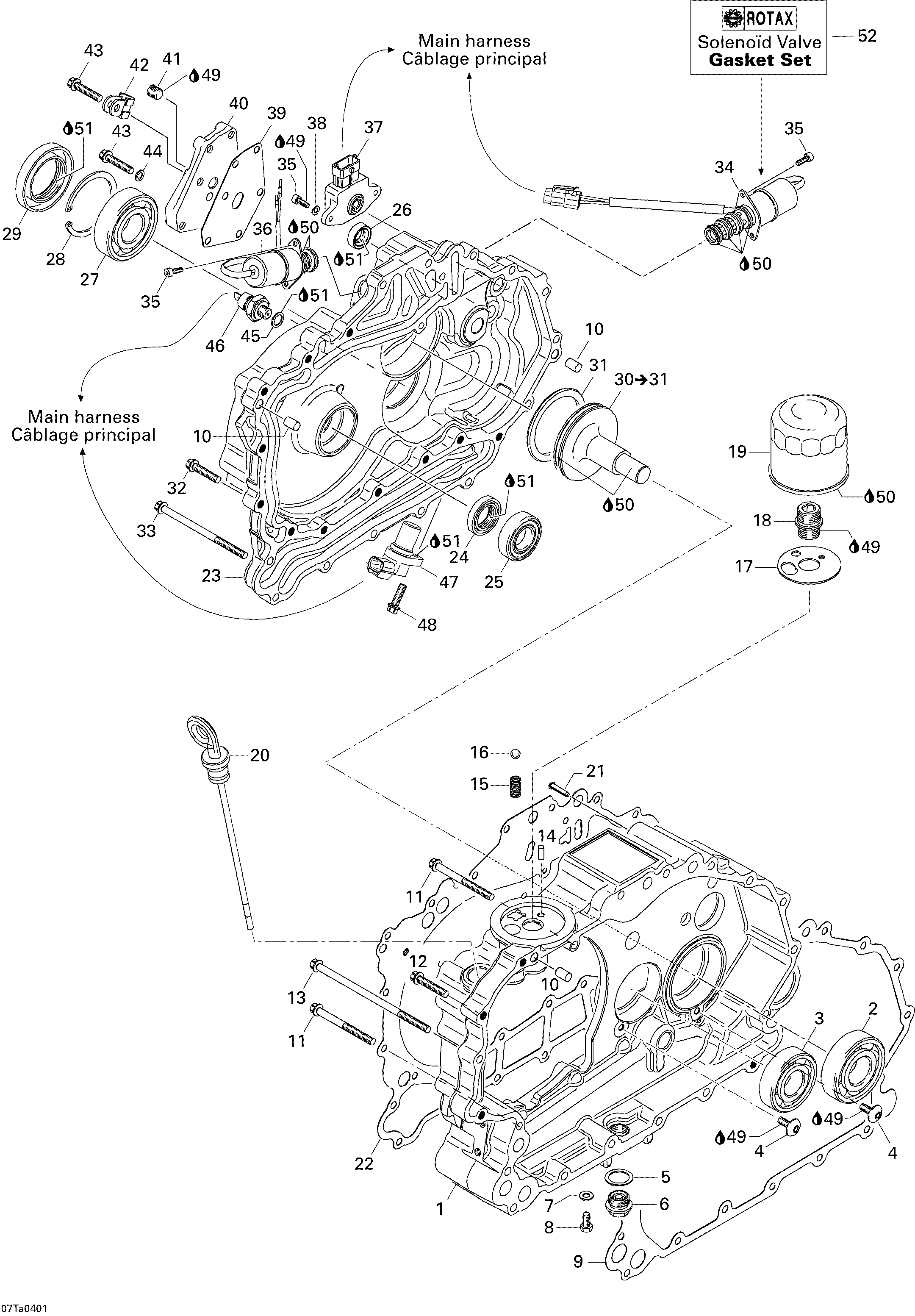

01- Clutch Housing And Cover для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1420211921 Clutch housingClutch housing
-
2420932825 Ball bearing 6305Ball bearing 6305
-
3420632200 Ball bearing 63/22Ball bearing 63/22
-
4420241531 Flat head screw M6 x 16Flat head screw M6 x 16
-
5420552280 O-ringO-ring
-
6420840277 Drain plugDrain plug
-
7404146600 Seal washerSeal washer
-
8420241751 Hex. screw M6 x 16Hex. screw M6 x 16
-
9420650582 Clutch housing gasketClutch housing gasket
-
10420632010 Pin M8 x 12Pin M8 x 12
-
11420940576 Hex. flanged screw M6 x 70Hex. flanged screw M6 x 70
-
12420941126 Hex. flanged screw M6 x 35Hex. flanged screw M6 x 35
-
13420640371 Hex. flanged screw M6 x 130Hex. flanged screw M6 x 130
-
14420232710 Needle pinNeedle pin
-
15420238050 SpringSpring
-
16420232370 BallBall
-
17420627370 Oil filter washerOil filter washer
-
18420924420 Oil filter nippleOil filter nipple
-
19420256620 Oil filterOil filter
-
20420256610 Oil dipstickOil dipstick
-
21420229170 Groove pin M4 x 20Groove pin M4 x 20
-
22420650592 Clutch cover gasketClutch cover gasket
-
23420211811 Clutch coverClutch cover
-
24420930390 Oil sealOil seal
-
25420232190 Ball bearing 6304Ball bearing 6304
-
26420250455 Oil sealOil seal
-
27420932825 Ball bearing 6305Ball bearing 6305
-
28420445070 Retaining ringRetaining ring
-
29420650680 Oil sealOil seal
-
30420257056 Disengaging piston. INCLUDES 30 TO 31Disengaging piston. INCLUDES 30 TO 31
-
31420650550 K-grooved ringK-grooved ring
-
32420241941 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
33420640361 Hex. flanged screw M6 x 100Hex. flanged screw M6 x 100
-
34420256550 Solenoid valveSolenoid valve
-
35420440291 Socket head screw M4 x 12Socket head screw M4 x 12
-
36420256560 Pressure valvePressure valve
-
37420265600 Potentiometer (sub transmission)Potentiometer (sub transmission)
-
38420244073 WasherWasher
-
39420650620 GasketGasket
-
40420211935 Oil duct coverOil duct cover
-
41420240480 Plug screwPlug screw
-
42414176000 Open clampOpen clamp
-
43420241941 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
44420230415 Seal washerSeal washer
-
45420230150 Oil sealOil seal
-
46420256640 Oil pressure switchOil pressure switch
-
47420265622 Speed sensorSpeed sensor
-
48420241861 Hex. flanged screw M6 x 20Hex. flanged screw M6 x 20
-
49293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
51293550014 Grease, Super lubeGrease, Super lube
-
52420296375 Solenoid valve gasket setSolenoid valve gasket set
