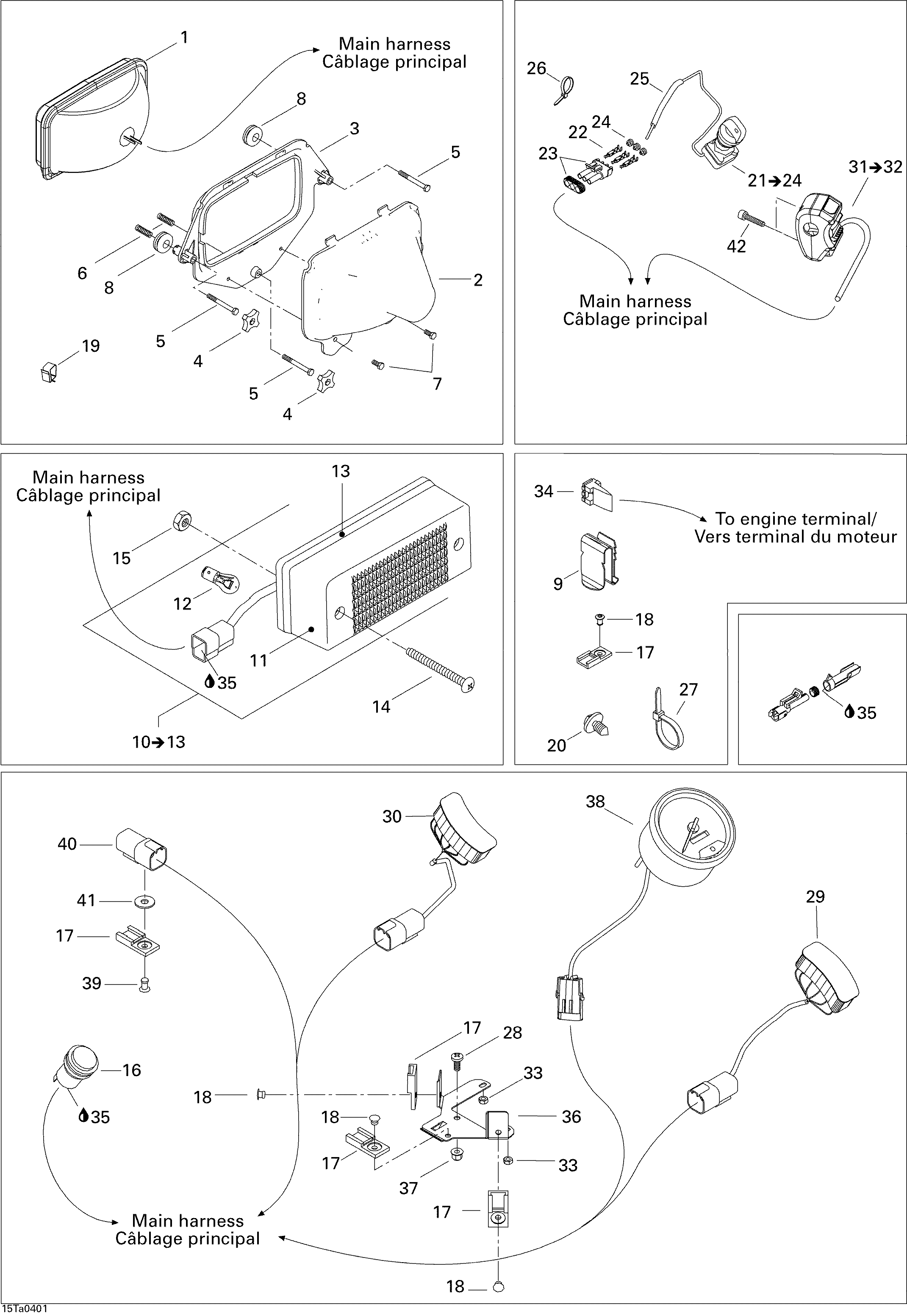

10- Electrical Accessories для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1710000001 HeadlampHeadlamp
-
2705001048 ProtectorProtector
-
3705000474 Headlamp supportHeadlamp support
-
4572106600 HandleHandle
-
5250000008 Hex. screw K40 x 40Hex. screw K40 x 40
-
6517168600 SpringSpring
-
7241641040 Flanged screw K40 x 10Flanged screw K40 x 10
-
8293720053 GrommetGrommet
-
9409014200 ClipClip
-
10710000102 Tail lamp housing. INCLUDES 10 TO 13Tail lamp housing. INCLUDES 10 TO 13
-
11710000055 Lens (red)Lens (red)
-
12410504100 Tail lamp bulbTail lamp bulb
-
13710000129 GasketGasket
-
14208656091 Screw M5 x 60Screw M5 x 60
-
15233251414 Elastic flanged stop nut M5Elastic flanged stop nut M5
-
16861507200 DC outlet plug 12VDC outlet plug 12V
-
17270000141 ClipClip
-
18390402400 RivetRivet
-
19414227300 ClipClip
-
20293730018 Dart mountDart mount
-
21710000042 Ignition switch. INCLUDES 21 TO 24Ignition switch. INCLUDES 21 TO 24
-
21710000137 Blank Key (''A'' Type). INCLUDES 21 TO 24Blank Key (''A'' Type). INCLUDES 21 TO 24
-
21710000101 Blank Key (''B'' Type). INCLUDES 21 TO 24Blank Key (''B'' Type). INCLUDES 21 TO 24
-
22278000223 Female terminalFemale terminal
-
23278000273 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
24278000218 Wire sealWire seal
-
25710000171 Protector tubeProtector tube
-
26293750002 Tie rap 130 mmTie rap 130 mm
-
27293750002 Tie rap 130 mmTie rap 130 mm
-
27293750008 Tie rap 350 mmTie rap 350 mm
-
27414115200 Tie rap 180 mmTie rap 180 mm
-
28208651241 Screw M5 x 12Screw M5 x 12
-
29710000420 R.H. warning lampR.H. warning lamp
-
30710000418 L.H. warning lampL.H. warning lamp
-
31710000088 Multi-function switch. INCLUDES 31 TO 32Multi-function switch. INCLUDES 31 TO 32
-
32710000173 Back coverBack cover
-
33211100051 Elastic stop nutElastic stop nut
-
34278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
35293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
36710000159 Housing supportHousing support
-
37232551414 Elastic stop nut M5Elastic stop nut M5
-
38710000524 SpeedometerSpeedometer
-
39390402300 Pop-rivets 3/16''Pop-rivets 3/16''
-
40710000044 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
41391301600 WasherWasher
-
42205053588 Socket head screw M5 x 35Socket head screw M5 x 35
