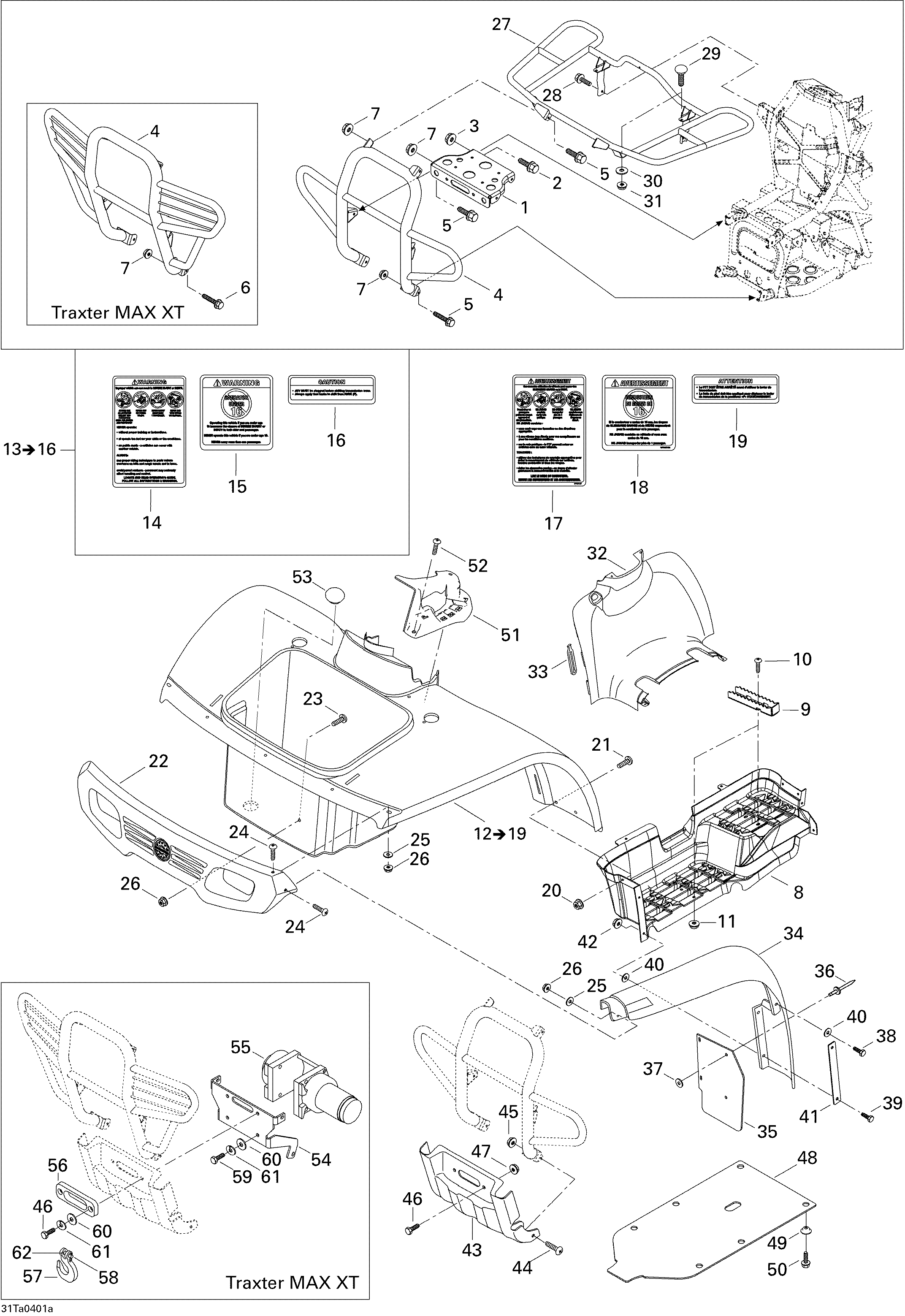

09- Body And Accessories, Front View для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1705200196 Latch winchLatch winch
-
2207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
3233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
4705000757 Front bumper. STANDARD MODELSFront bumper. STANDARD MODELS
-
705000775 Front bumper. XT MODELSFront bumper. XT MODELS
-
5207682044 Hex flanged screw M8 x 20. STANDARD MODELSHex flanged screw M8 x 20. STANDARD MODELS
-
207682044 Hex flanged screw M8 x 20. XT MODELSHex flanged screw M8 x 20. XT MODELS
-
6207682544 Hex flanged screw M8 x 25. XT MODELSHex flanged screw M8 x 25. XT MODELS
-
7233281414 Elastic flanged nut M8Elastic flanged nut M8
-
8705000671 R.h. footrest coverR.h. footrest cover
-
705000672 L.h. footrest coverL.h. footrest cover
-
9705001083 FootrestFootrest
-
10207662584 Hex. flanged screw M6 x 25Hex. flanged screw M6 x 25
-
11233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
12703500358 Front fender kit XT (Yellow). INCLUDES 12 TO 19Front fender kit XT (Yellow). INCLUDES 12 TO 19
-
703500276 Front fender kit (Viper red)Front fender kit (Viper red)
-
703500357 Front fender kit (Laurentian green)Front fender kit (Laurentian green)
-
14704900451 Warning label english. (injuries and death)Warning label english. (injuries and death)
-
15704900515 Warning label english. (Under 16 years old)Warning label english. (Under 16 years old)
-
16704900007 Warning label english. (transmission selector)Warning label english. (transmission selector)
-
17704900435 Warning label french. (injuries and death)Warning label french. (injuries and death)
-
18704900436 Warning label french. (Under 16 years old)Warning label french. (Under 16 years old)
-
19704900008 Warning label french. (transmission selector)Warning label french. (transmission selector)
-
20233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
21211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
22705000708 Front fasciaFront fascia
-
23211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
24211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
25224060201 Flat washerFlat washer
-
26233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
27703500264 Front luggage rackFront luggage rack
-
28207582044 Hex flanged screw M8 x 20 (scotch grip)Hex flanged screw M8 x 20 (scotch grip)
-
29250000035 Phillips screw M6 x 25Phillips screw M6 x 25
-
30224060201 Flat washerFlat washer
-
31233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
32705000710 Tank coverTank cover
-
33570023800 Windshield LatchWindshield Latch
-
34705000711 L.h. front mudguardL.h. front mudguard
-
705000712 R.h. front mudguardR.h. front mudguard
-
35705000755 Mudguard extensionMudguard extension
-
36293150089 Plastic Tuflok rivetPlastic Tuflok rivet
-
37234082410 Flat washer M8Flat washer M8
-
38207162044 Hex screw M6 x 20Hex screw M6 x 20
-
39207162544 Hex screw M6 x 25Hex screw M6 x 25
-
40224060201 Flat washerFlat washer
-
41705000754 PlatePlate
-
42233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
43705000713 Protector plateProtector plate
-
44211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
45233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
46207602544 Hex flanged screw M10 x 25. STANDARD MODELSHex flanged screw M10 x 25. STANDARD MODELS
-
250000042 Socket head screw. XT MODELSSocket head screw. XT MODELS
-
47233201414 Hex flanged elastic nut M10. STANDARD MODELSHex flanged elastic nut M10. STANDARD MODELS
-
48705000675 Skid plateSkid plate
-
49705200533 CupCup
-
50207582044 Hex flanged screw M8 x 20 (scotch grip)Hex flanged screw M8 x 20 (scotch grip)
-
51705000081 Transmission lever indicatorTransmission lever indicator
-
52414745900 Phillips plastic screwPhillips plastic screw
-
53570041600 Rubber coverRubber cover
-
54705000994 Winch mounting plate. XT MODELS ONLYWinch mounting plate. XT MODELS ONLY
-
55705000839 Winch. XT MODELS ONLYWinch. XT MODELS ONLY
-
56705000194 Cable guide. XT MODELS ONLYCable guide. XT MODELS ONLY
-
57705000618 Hook. XT MODELS ONLYHook. XT MODELS ONLY
-
58250400022 Cotter pin. XT MODELS ONLYCotter pin. XT MODELS ONLY
-
59250000041 Socket head screw. XT MODELS ONLYSocket head screw. XT MODELS ONLY
-
60234081410 Flat washer M8. XT MODELS ONLYFlat washer M8. XT MODELS ONLY
-
61234181401 Lock washer M8. XT MODELS ONLYLock washer M8. XT MODELS ONLY
-
62250400021 Clevis pin. XT MODELS ONLYClevis pin. XT MODELS ONLY
