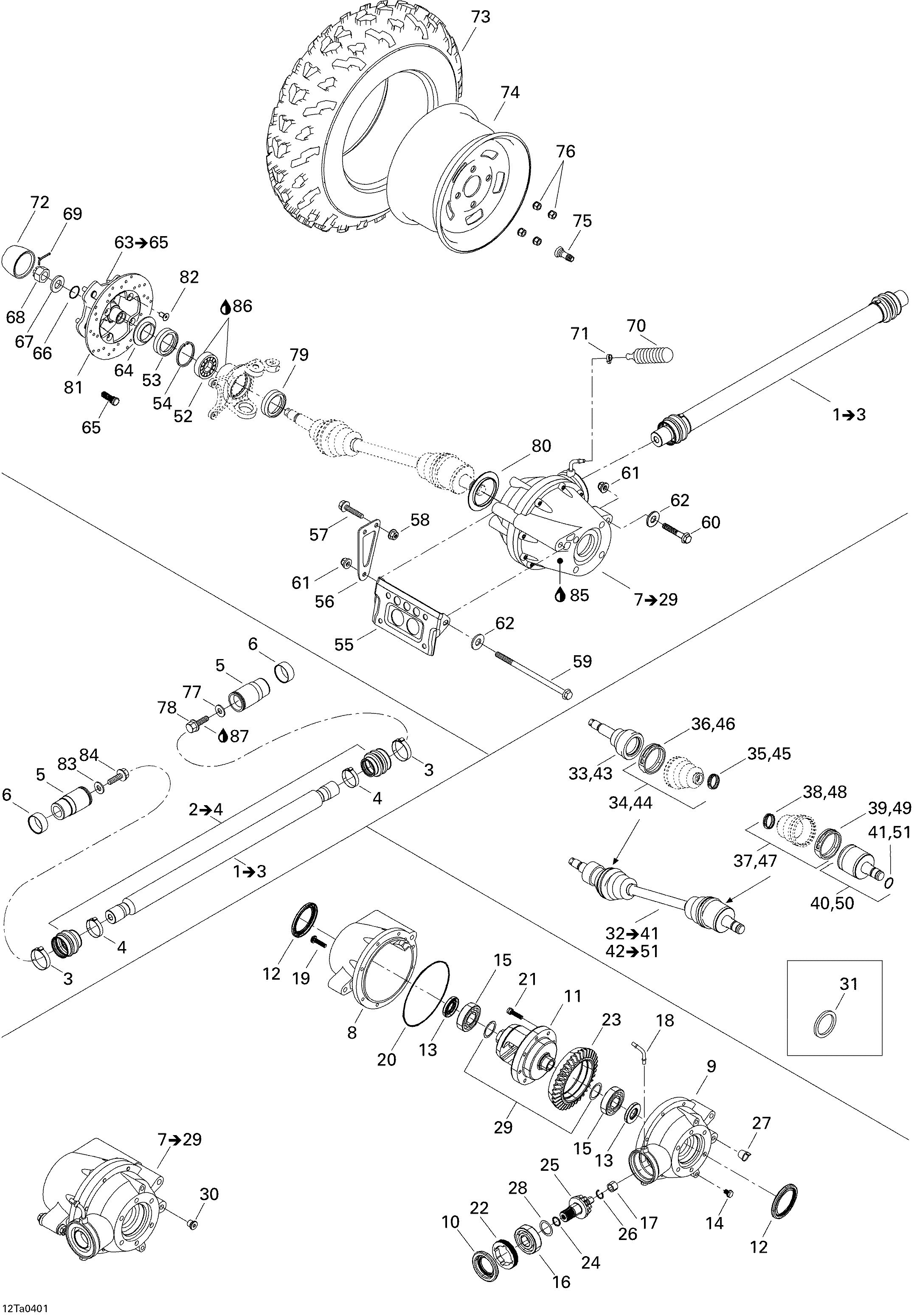

05- Drive System, Front для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1705400236 Drive axle. INCLUDES 1 TO 3Drive axle. INCLUDES 1 TO 3
-
2703500255 Rubber Boot Kit. INCLUDES 2 TO 4Rubber Boot Kit. INCLUDES 2 TO 4
-
3293650138 Oetiker ClampOetiker Clamp
-
4705400148 CollarCollar
-
5705400149 Coupling SleeveCoupling Sleeve
-
6705400036 Wear ringWear ring
-
8705400099 Differential CapDifferential Cap
-
9705500515 Differential CarrierDifferential Carrier
-
10705400027 Oil sealOil seal
-
11705400004 DifferentialDifferential
-
12705400019 Oil sealOil seal
-
13705500255 Oil sealOil seal
-
14705500245 Drain plugDrain plug
-
15705500259 Ball bearingBall bearing
-
16705500260 Ball bearingBall bearing
-
17705500261 Needle bearingNeedle bearing
-
18705500262 Vent valveVent valve
-
19705500264 ScrewScrew
-
20705500265 SealSeal
-
21705400101 Ring gear screwRing gear screw
-
22705500266 NutNut
-
23705400103 Gear (36 teeth)Gear (36 teeth)
-
24705500267 O-ringO-ring
-
25705500268 Gear (10 teeth)Gear (10 teeth)
-
26705500269 Retaining ringRetaining ring
-
27705500516 Protection plugProtection plug
-
28703500049 Pinion gear shim kit.022''Pinion gear shim kit.022''
-
29703500050 Differential Shim KitDifferential Shim Kit
-
30705500504 Fill level plugFill level plug
-
31705500506 Copper WasherCopper Washer
-
32705400125 R.h. cv joint. INCLUDES 32 TO 41R.h. cv joint. INCLUDES 32 TO 41
-
33705400093 Cv jointCv joint
-
34705400127 Boot wheel kitBoot wheel kit
-
35705400064 ClampClamp
-
36705400180 ClampClamp
-
37705400126 Boot differential kitBoot differential kit
-
38705400064 ClampClamp
-
39705400181 ClampClamp
-
40705400128 Plunging jointPlunging joint
-
41705400042 CirclipCirclip
-
42705400124 L.h. cv joint. INCLUDES 42 TO 51L.h. cv joint. INCLUDES 42 TO 51
-
43705400093 Cv jointCv joint
-
44705400127 Boot wheel kitBoot wheel kit
-
45705400064 ClampClamp
-
46705400180 ClampClamp
-
47705400126 Boot differential kitBoot differential kit
-
48705400064 ClampClamp
-
49705400181 ClampClamp
-
50705400129 Plunging jointPlunging joint
-
51705400042 CirclipCirclip
-
52705400088 Angle bearingAngle bearing
-
53705500099 Oil sealOil seal
-
54293370019 CirclipCirclip
-
55705400255 Bolted BracketBolted Bracket
-
56705400069 R.h. differential bracketR.h. differential bracket
-
57207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
58233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
59250000024 Hex flanged screw M10 x 200 (scotch grip)Hex flanged screw M10 x 200 (scotch grip)
-
60207506044 Hex flanged screw M10 x 60 (scotch grip)Hex flanged screw M10 x 60 (scotch grip)
-
61233101414 Hex flanged nut M10Hex flanged nut M10
-
62250200003 Flat washerFlat washer
-
63705500254 Wheel hub ass'y. INCLUDES 63 TO 65Wheel hub ass'y. INCLUDES 63 TO 65
-
64705500100 Wear ringWear ring
-
65250300020 Wheel studWheel stud
-
66705500271 O-ringO-ring
-
67250200019 WasherWasher
-
68232291413 Hex flanged castellated nut M18Hex flanged castellated nut M18
-
69250400016 Cotter pinCotter pin
-
70705400066 Rubber bellowRubber bellow
-
71293750001 Tie rap 94 mmTie rap 94 mm
-
72705400012 Wheel capWheel cap
-
73705400009 Front tireFront tire
-
74705400010 Front rim (STD). STANDARD MODELSFront rim (STD). STANDARD MODELS
-
705400072 Front rim (XT). XT MODELSFront rim (XT). XT MODELS
-
75705400193 Rim valveRim valve
-
76705400013 Wheel nutWheel nut
-
77211200041 WasherWasher
-
78207581646 Hex flanged screw M8 x 16 (scotch grip)Hex flanged screw M8 x 16 (scotch grip)
-
79293250090 Oil sealOil seal
-
80705400016 Wear ringWear ring
-
81705600342 Brake discBrake disc
-
82235381646 Torx screw M8 x 16 (scotch grip)Torx screw M8 x 16 (scotch grip)
-
83250200014 Flat washerFlat washer
-
84250000060 Hex flanged screw M10 x 16 (scotch grip)Hex flanged screw M10 x 16 (scotch grip)
-
85293600011 Redline Pump oil, 75W90, 12 x 6 ozRedline Pump oil, 75W90, 12 x 6 oz
-
86293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
87293800005 Loctite 271, 10 mlLoctite 271, 10 ml
