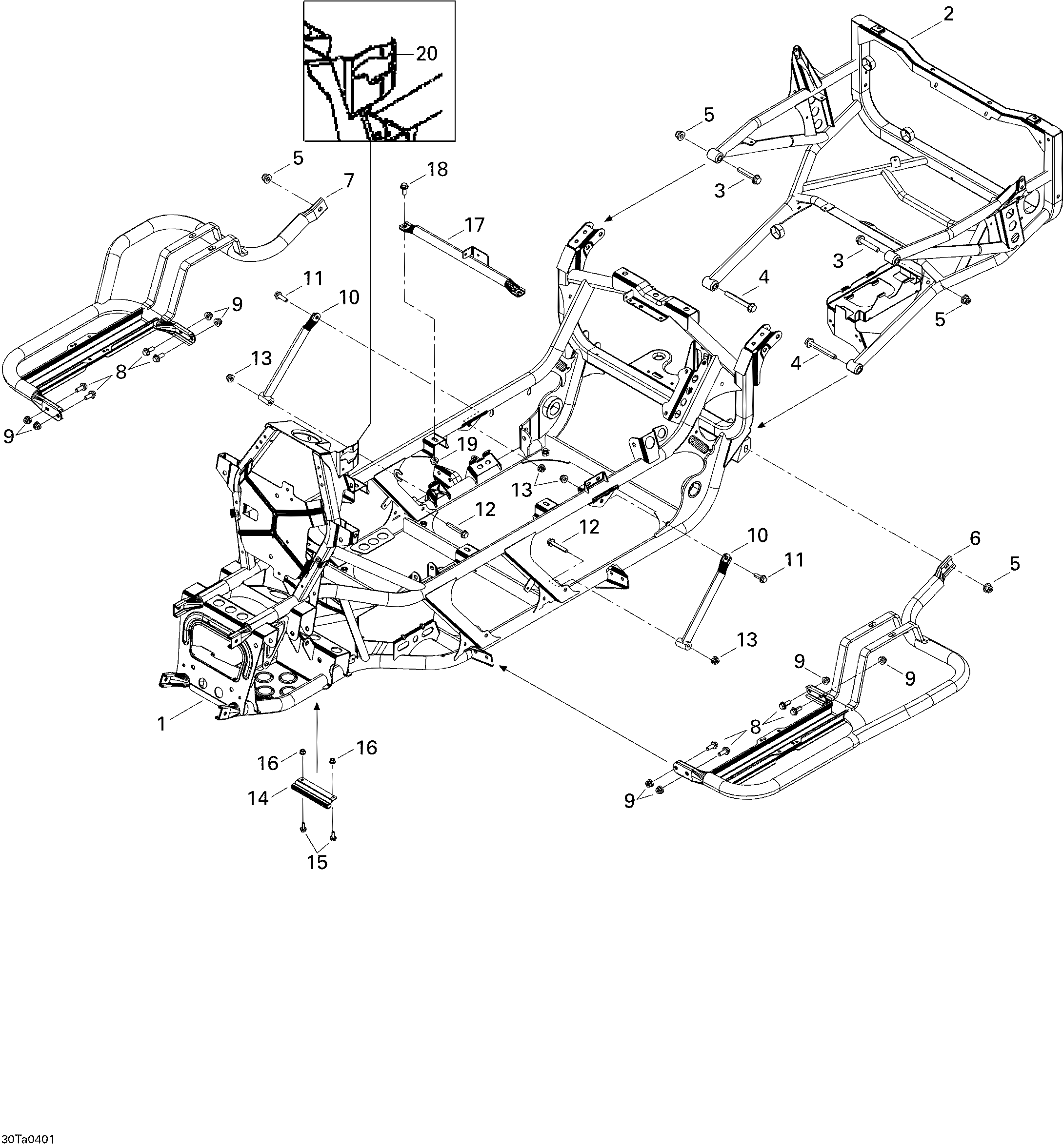

09- Frame для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1705200732 Frame (black)Frame (black)
-
2705200546 Frame extensionFrame extension
-
3207605544 Hex flanged screw M10 x 55Hex flanged screw M10 x 55
-
4207608044 Hex flanged screw M10 x 80Hex flanged screw M10 x 80
-
5233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
6705200635 L.h. footrestL.h. footrest
-
7705200653 R.h. foorestR.h. foorest
-
8207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
9233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
10705200143 Removable braceRemovable brace
-
11207682544 Hex flanged screw M8 x 25Hex flanged screw M8 x 25
-
12207685044 Hex flanged screw M8 x 50Hex flanged screw M8 x 50
-
13233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
14705200575 Plate bracketPlate bracket
-
15207661644 Hex flanged screw M6 x 16Hex flanged screw M6 x 16
-
16233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
17705200667 Removable axeRemovable axe
-
18207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
19233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
20705200351 Shift PaternShift Patern
