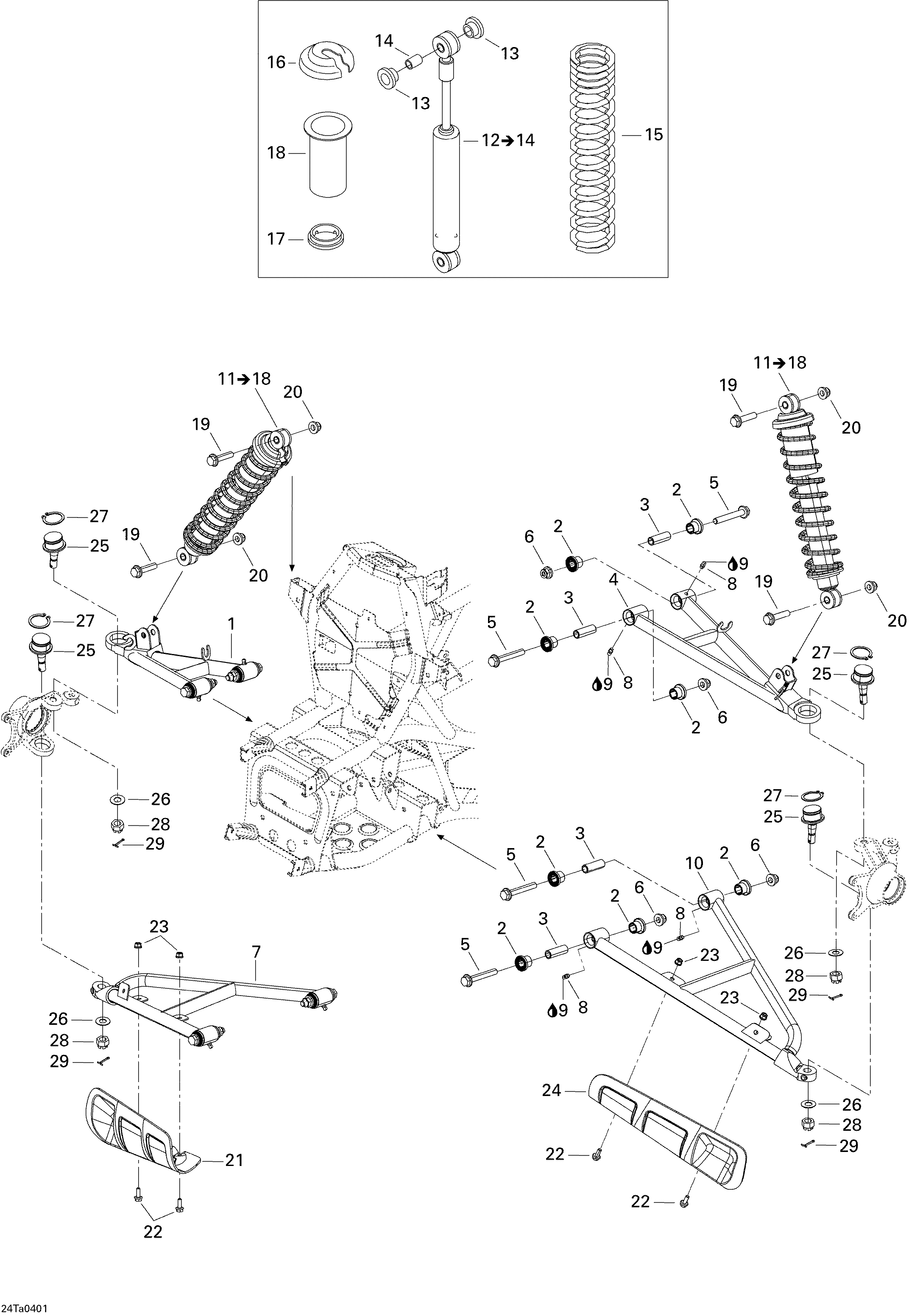

07- Front Suspension для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1706200318 R.H. upper armR.H. upper arm
-
2706200181 CushionCushion
-
3706200182 Inner bushingInner bushing
-
4706200320 L.H. upper armL.H. upper arm
-
5207607046 Hex flanged screw M10 x 70Hex flanged screw M10 x 70
-
6233201416 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
7706200360 RH Lower Arm (Black)RH Lower Arm (Black)
-
8408200700 Grease fittingGrease fitting
-
9293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
10706200365 LH Lower Arm (Black)LH Lower Arm (Black)
-
12706200300 Front shock. INCLUDES 12 TO 14Front shock. INCLUDES 12 TO 14
-
13706200185 CushionCushion
-
14706200186 BushingBushing
-
15706200301 Front springFront spring
-
16503140600 Spring stopperSpring stopper
-
17706000197 Spring seatSpring seat
-
18503139800 ProtectorProtector
-
19207604544 Hex flanged screw M10 x 45Hex flanged screw M10 x 45
-
20233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
21706200179 R.H. arm protectorR.H. arm protector
-
22207661644 Hex flanged screw M6 x 16Hex flanged screw M6 x 16
-
23233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
24706200180 L.H. arm protectorL.H. arm protector
-
25706200091 Ball jointBall joint
-
26706200281 Hard washerHard washer
-
27293370009 Circlip 32 mmCirclip 32 mm
-
28232221414 Hex castellated nut M12Hex castellated nut M12
-
29211400017 Cotter pinCotter pin
