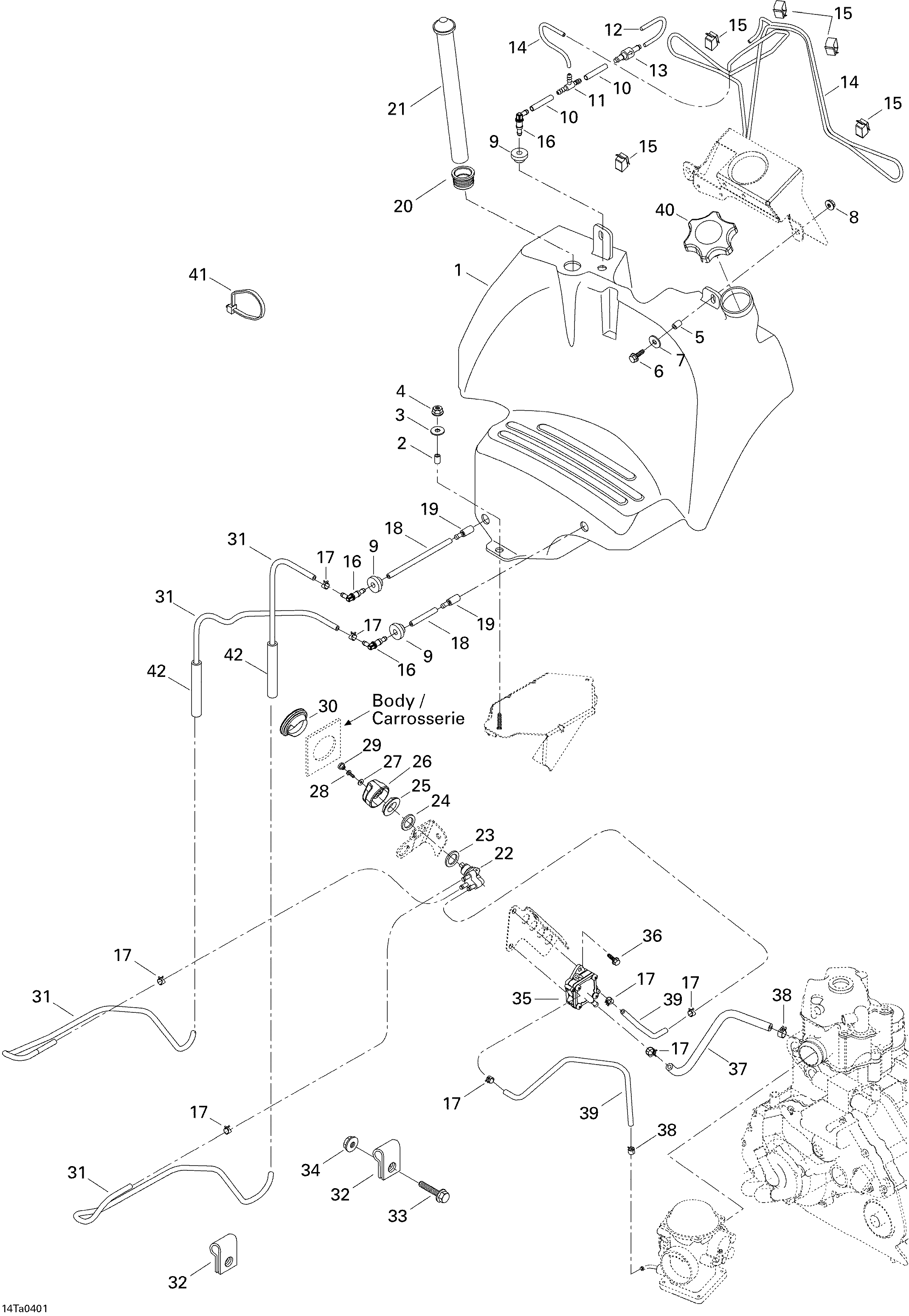

02- Fuel Tank для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1709000025 Fuel TankFuel Tank
-
2293900028 BushingBushing
-
3234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4233281414 Elastic flanged stop nut M8Elastic flanged stop nut M8
-
5293900029 BushingBushing
-
6207662544 Hex. flanged screw M6 x 25Hex. flanged screw M6 x 25
-
7224061201 Flat washerFlat washer
-
8233261414 Elastic flanged stop nut M6Elastic flanged stop nut M6
-
9570045500 GrommetGrommet
-
10415080200 Line (meter)Line (meter)
-
11414222500 T fittingT fitting
-
12709000029 Vent hoseVent hose
-
13275500479 Check valveCheck valve
-
14709000031 Vent hoseVent hose
-
15414227300 ClipClip
-
16414580600 Elbow Male ConnectorElbow Male Connector
-
17293650042 Oetiker clampOetiker clamp
-
18415080200 Fuel lineFuel line
-
19414865700 Fuel filterFuel filter
-
20293720058 GrommetGrommet
-
21709000078 Fuel gaugeFuel gauge
-
22275500098 Fuel valveFuel valve
-
23293250004 Fuel valve gasketFuel valve gasket
-
24250200015 WasherWasher
-
25212100009 Hex. plastic nutHex. plastic nut
-
26275500263 Fuel valve knobFuel valve knob
-
27234040600 Flat washer 4 mmFlat washer 4 mm
-
28208640860 Phillips screw M4 x 8Phillips screw M4 x 8
-
29275500241 Plug capPlug cap
-
30709000005 GrommetGrommet
-
31415079800 Hose 1/4''Hose 1/4''
-
32709000057 Open clampOpen clamp
-
33207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
34233281414 Elastic flanged nut M8Elastic flanged nut M8
-
35707200000 Fuel pumpFuel pump
-
36210261040 Screw M6 x 10Screw M6 x 10
-
37709000024 Formed hoseFormed hose
-
38414415200 Spring clampSpring clamp
-
39415079800 Hose 1/4''Hose 1/4''
-
40513033025 CapCap
-
41293750002 Tie rap 130 mmTie rap 130 mm
-
293750008 Tie rap 350 mmTie rap 350 mm
-
42409901800 TubingTubing
