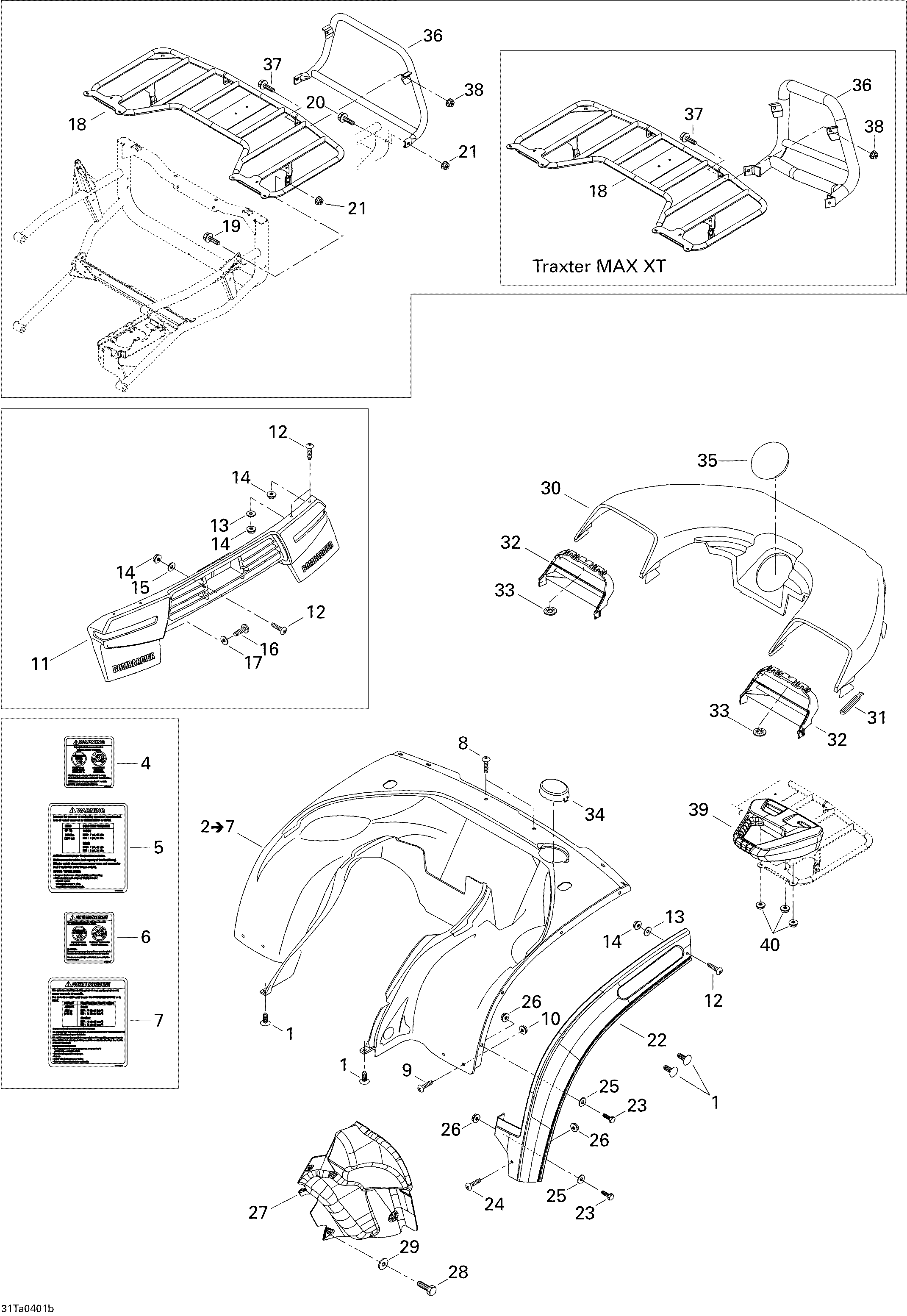

09- Body And Accessories, Rear View для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1293730011 DartDart
-
2703500360 Rear fender kit XT (Yellow). INCLUDES 2 TO 7Rear fender kit XT (Yellow). INCLUDES 2 TO 7
-
703500277 Rear fender kit (Viper red)Rear fender kit (Viper red)
-
703500359 Rear fender kit (Laurentian green)Rear fender kit (Laurentian green)
-
4704900634 Warning label english. (passenger, under 12 years old)Warning label english. (passenger, under 12 years old)
-
5704900519 Warning label english. (tire pressure)Warning label english. (tire pressure)
-
6704900437 Warning label french. (passenger, under 12 years old)Warning label french. (passenger, under 12 years old)
-
7704900440 Warning label french. (tire pressure)Warning label french. (tire pressure)
-
8732600009 Phillips forming screw M6 x 18Phillips forming screw M6 x 18
-
9211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
10233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
11705000709 Rear fasciaRear fascia
-
12211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
13224060201 Flat washerFlat washer
-
14233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
15224060201 Flat washerFlat washer
-
16732600009 Phillips forming screw M6 x 18Phillips forming screw M6 x 18
-
17224061121 Flat washerFlat washer
-
18705000874 Rear luggage rackRear luggage rack
-
19207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
20207685044 Hex flanged screw M8 x 50Hex flanged screw M8 x 50
-
21233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
22705000701 L.h. rear mudguardL.h. rear mudguard
-
705000702 R.h. rear mudguardR.h. rear mudguard
-
23207162044 Hex screw M6 x 20Hex screw M6 x 20
-
24211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
25224060201 Flat washerFlat washer
-
26233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
27705000133 L.h. tank protectorL.h. tank protector
-
705000134 R.h. tank protectorR.h. tank protector
-
28210261680 Hex flanged forming screw M6 x 16Hex flanged forming screw M6 x 16
-
29224061201 Flat washerFlat washer
-
30705000179 Fender cover XT (yellow)Fender cover XT (yellow)
-
705000576 Fender cover (viper red)Fender cover (viper red)
-
705000831 Fender cover (Laurentian green)Fender cover (Laurentian green)
-
31570023800 Windshield LatchWindshield Latch
-
32705000180 L.h. grillL.h. grill
-
705000181 R.h. grillR.h. grill
-
33250100000 Push nutPush nut
-
34705000132 Radiator cap coverRadiator cap cover
-
35705000207 CapCap
-
36705000793 Rear bumper. STANDARD MODELSRear bumper. STANDARD MODELS
-
705000799 Rear bumper. XT MODELRear bumper. XT MODEL
-
37207682046 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
38233281416 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
39705000703 L.h. handleL.h. handle
-
705000704 R.h. handleR.h. handle
-
40233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
