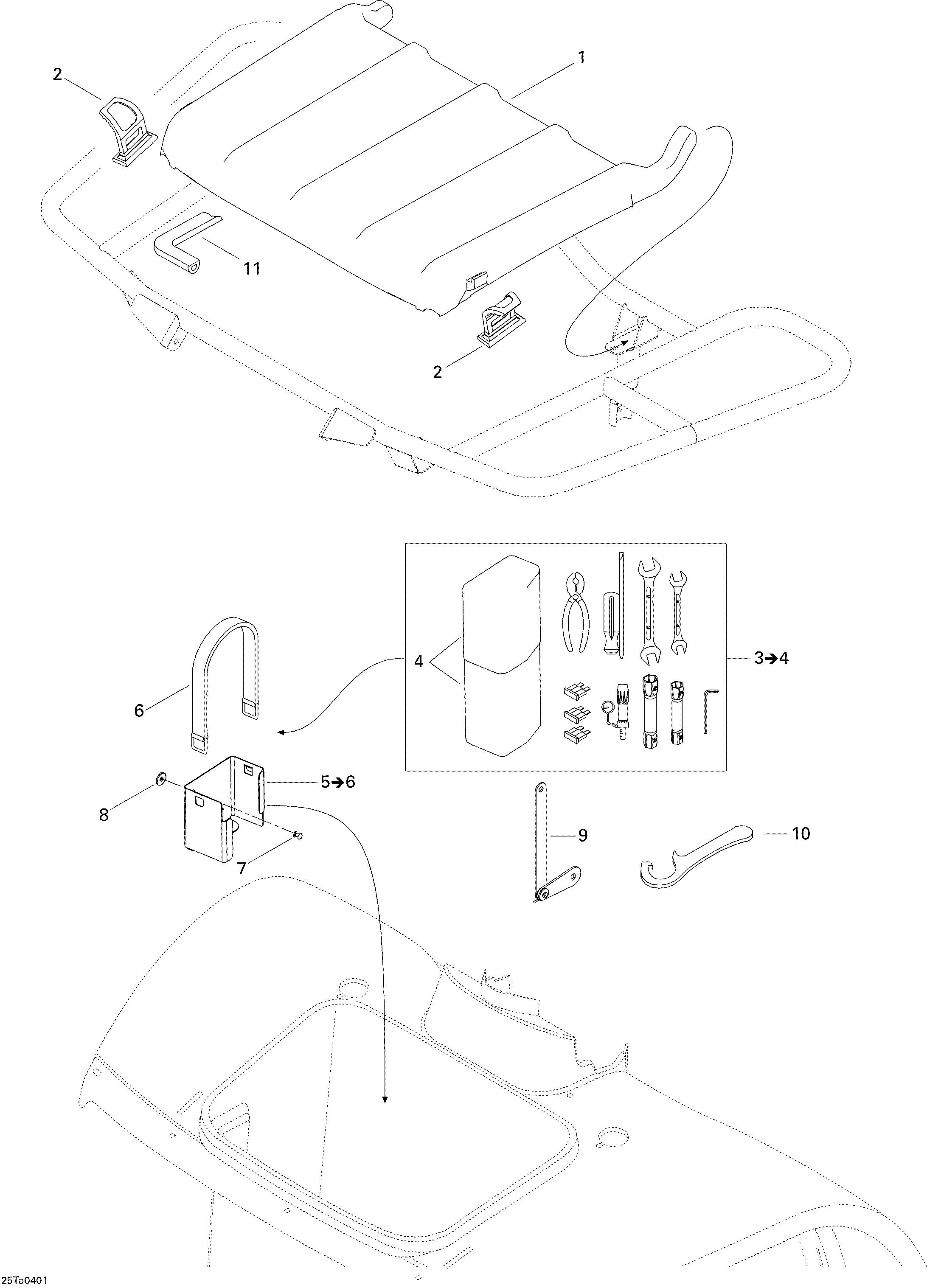

09- Front Tray для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1708200033 Storage coverStorage cover
-
2708200003 Cover latchCover latch
-
3704700084 Tool kit. INCLUDES 3 TO 4Tool kit. INCLUDES 3 TO 4
-
4708200041 Tool boxTool box
-
5708200007 Support tray. INCLUDES 5 TO 6Support tray. INCLUDES 5 TO 6
-
6293850080 Rubber strapRubber strap
-
7390402300 Pop-rivet 3/16''Pop-rivet 3/16''
-
8391301600 WasherWasher
-
9529035599 Wrench ass'y (transmission)Wrench ass'y (transmission)
-
10529007800 Shock wrenchShock wrench
-
11293200017 Neoprene sealNeoprene seal
