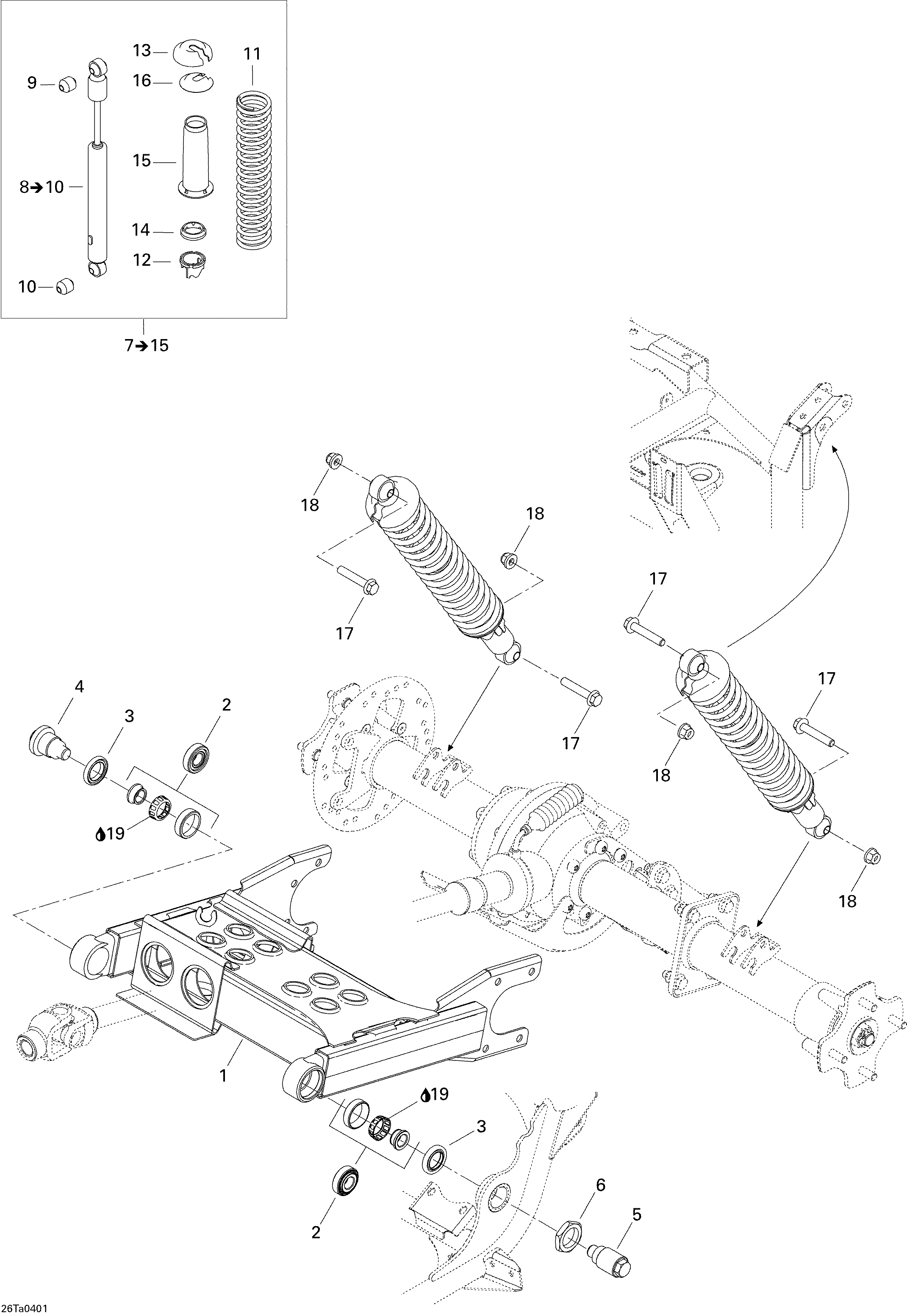

08- Rear Suspension для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1706000298 Swing ArmSwing Arm
-
2706000169 Cone bearingCone bearing
-
3706000010 Oil sealOil seal
-
4706000092 R.h. pivot boltR.h. pivot bolt
-
5706000093 L.h. pivot boltL.h. pivot bolt
-
6706000006 Hex jam nutHex jam nut
-
8706000235 Rear shock. INCLUDES 8 TO 10Rear shock. INCLUDES 8 TO 10
-
9706000146 Upper cushionUpper cushion
-
10706000147 Lower cushionLower cushion
-
11706000306 Rear springRear spring
-
12706000073 Adjuster ringAdjuster ring
-
13503140600 Spring stopperSpring stopper
-
14706000197 Spring seatSpring seat
-
15706000032 ProtectorProtector
-
16503141600 CapCap
-
17207605544 Hex flanged screw M10 x 55Hex flanged screw M10 x 55
-
18233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
19293550010 Synthetic grease, 400 gSynthetic grease, 400 g
