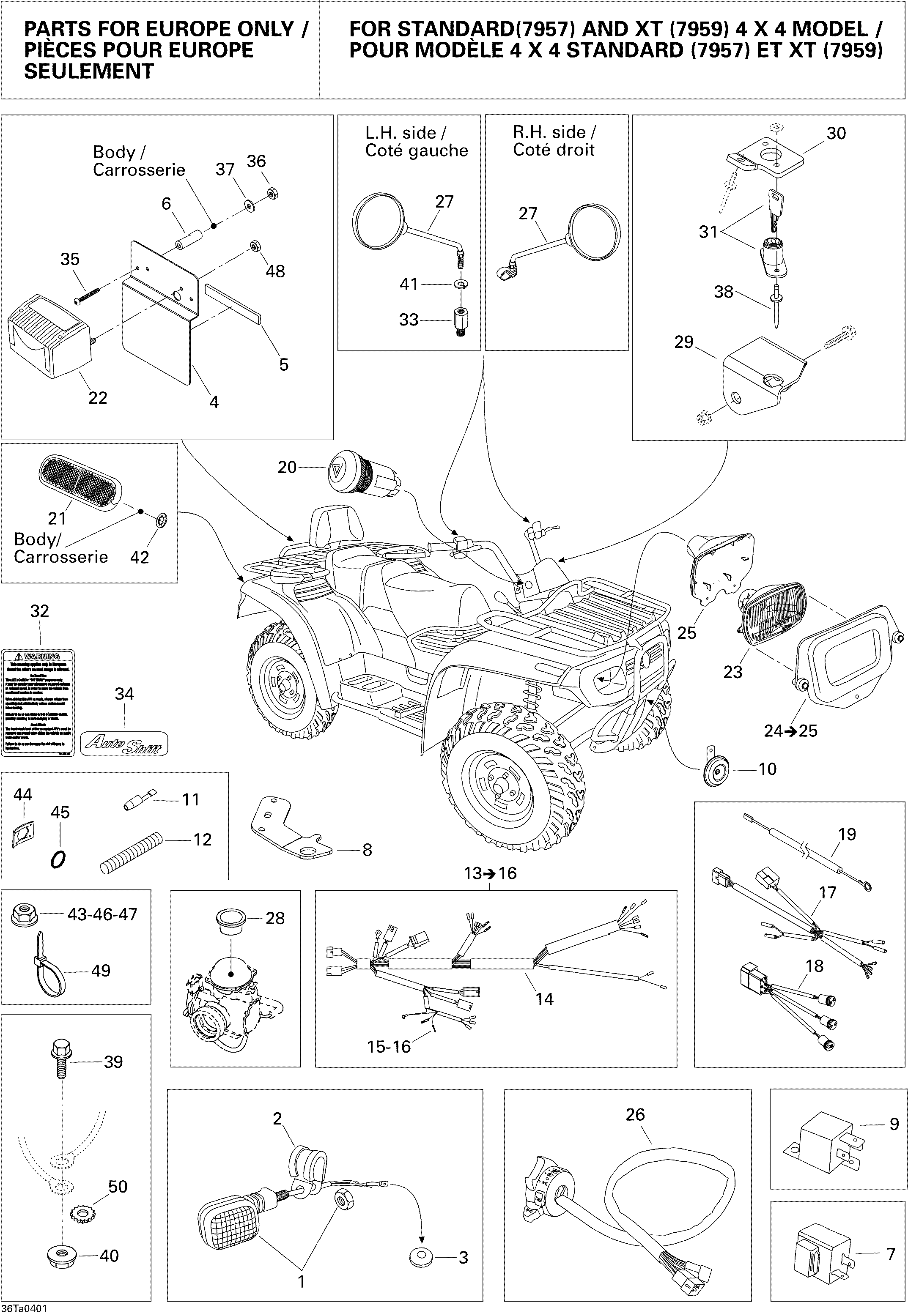

10- Homologation Kit For Europe (7957, 7959) для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1710000546 Flasher. EUROPE MODELS ONLY (7957, 7959)Flasher. EUROPE MODELS ONLY (7957, 7959)
-
710000547 Flasher. EUROPE MODELS ONLY (7957, 7959)Flasher. EUROPE MODELS ONLY (7957, 7959)
-
2710000362 Collar. EUROPE MODELS ONLY (7957, 7959)Collar. EUROPE MODELS ONLY (7957, 7959)
-
3414036300 Grommet. EUROPE MODELS ONLY (7957, 7959)Grommet. EUROPE MODELS ONLY (7957, 7959)
-
4705000658 Tail light support. EUROPE MODELS ONLY (7957, 7959)Tail light support. EUROPE MODELS ONLY (7957, 7959)
-
5293250087 Gasket. EUROPE MODELS ONLY (7957, 7959)Gasket. EUROPE MODELS ONLY (7957, 7959)
-
6705000659 Spacer. EUROPE MODELS ONLY (7957, 7959)Spacer. EUROPE MODELS ONLY (7957, 7959)
-
7710000581 Flasher unit. EUROPE MODELS ONLY (7957, 7959)Flasher unit. EUROPE MODELS ONLY (7957, 7959)
-
8710000541 Switch bracket. EUROPE MODELS ONLY (7957, 7959)Switch bracket. EUROPE MODELS ONLY (7957, 7959)
-
9710000364 Relay 12 V.. EUROPE MODELS ONLY (7957, 7959)Relay 12 V.. EUROPE MODELS ONLY (7957, 7959)
-
10710000365 Horn. EUROPE MODELS ONLY (7957, 7959)Horn. EUROPE MODELS ONLY (7957, 7959)
-
11278000230 Male terminal. EUROPE MODELS ONLY (7957, 7959)Male terminal. EUROPE MODELS ONLY (7957, 7959)
-
12278001008 Insulating sheath. EUROPE MODELS ONLY (7957, 7959)Insulating sheath. EUROPE MODELS ONLY (7957, 7959)
-
14710000571 Harness. EUROPE MODELS ONLY (7957, 7959)Harness. EUROPE MODELS ONLY (7957, 7959)
-
15278000218 Wire seal. EUROPE MODELS ONLY (7957, 7959)Wire seal. EUROPE MODELS ONLY (7957, 7959)
-
16278000223 Female terminal. EUROPE MODELS ONLY (7957, 7959)Female terminal. EUROPE MODELS ONLY (7957, 7959)
-
17710000572 Harness. EUROPE MODELS ONLY (7957, 7959)Harness. EUROPE MODELS ONLY (7957, 7959)
-
18710000469 Lamp harness. EUROPE MODELS ONLY (7957, 7959)Lamp harness. EUROPE MODELS ONLY (7957, 7959)
-
19710000470 Ground cable. EUROPE MODELS ONLY (7957, 7959)Ground cable. EUROPE MODELS ONLY (7957, 7959)
-
20710000367 Hazard light switch. EUROPE MODELS ONLY (7957, 7959)Hazard light switch. EUROPE MODELS ONLY (7957, 7959)
-
21705000660 Reflector. EUROPE MODELS ONLY (7957, 7959)Reflector. EUROPE MODELS ONLY (7957, 7959)
-
22710000624 Tail light. EUROPE MODELS ONLY (7957, 7959)Tail light. EUROPE MODELS ONLY (7957, 7959)
-
23710000369 Front light. EUROPE MODELS ONLY (7957, 7959)Front light. EUROPE MODELS ONLY (7957, 7959)
-
24705000474 Front light support. EUROPE MODELS ONLY (7957, 7959)Front light support. EUROPE MODELS ONLY (7957, 7959)
-
25705000023 Protector. EUROPE MODELS ONLY (7957, 7959)Protector. EUROPE MODELS ONLY (7957, 7959)
-
26710000370 Light/horn switch. EUROPE MODELS ONLY (7957, 7959)Light/horn switch. EUROPE MODELS ONLY (7957, 7959)
-
27709400207 Mirror. EUROPE MODELS ONLY (7957, 7959)Mirror. EUROPE MODELS ONLY (7957, 7959)
-
28710000371 Power reductor. EUROPE MODELS ONLY (7957, 7959)Power reductor. EUROPE MODELS ONLY (7957, 7959)
-
29707000286 Bracket. EUROPE MODELS ONLY (7957, 7959)Bracket. EUROPE MODELS ONLY (7957, 7959)
-
30707000287 Locking plate. EUROPE MODELS ONLY (7957, 7959)Locking plate. EUROPE MODELS ONLY (7957, 7959)
-
31707000288 Locking device (with key). EUROPE MODELS ONLY (7957, 7959)Locking device (with key). EUROPE MODELS ONLY (7957, 7959)
-
32704900400 Warning label. EUROPE MODELS ONLY (7957, 7959)Warning label. EUROPE MODELS ONLY (7957, 7959)
-
33705000673 Mirror support. EUROPE MODELS ONLY (7957, 7959)Mirror support. EUROPE MODELS ONLY (7957, 7959)
-
34704900069 Shifting label. EUROPE MODELS ONLY (7957, 7959)Shifting label. EUROPE MODELS ONLY (7957, 7959)
-
35208656091 Screw M5 x 60. EUROPE MODELS ONLY (7957, 7959)Screw M5 x 60. EUROPE MODELS ONLY (7957, 7959)
-
36233251414 Elastic flanged nut M5. EUROPE MODELS ONLY (7957, 7959)Elastic flanged nut M5. EUROPE MODELS ONLY (7957, 7959)
-
37234051410 Flat washer. EUROPE MODELS ONLY (7957, 7959)Flat washer. EUROPE MODELS ONLY (7957, 7959)
-
38390402300 Rivet-pop 3/16''. EUROPE MODELS ONLY (7957, 7959)Rivet-pop 3/16''. EUROPE MODELS ONLY (7957, 7959)
-
39207662044 Hex. Flanged Screw M6 X 20. EUROPE MODELS ONLY (7957, 7959)Hex. Flanged Screw M6 X 20. EUROPE MODELS ONLY (7957, 7959)
-
40233261414 Elastic flanged nut M6. EUROPE MODELS ONLY (7957, 7959)Elastic flanged nut M6. EUROPE MODELS ONLY (7957, 7959)
-
41234180411 Lock washer. EUROPE MODELS ONLY (7957, 7959)Lock washer. EUROPE MODELS ONLY (7957, 7959)
-
42250100034 Push-nut. EUROPE MODELS ONLY (7957, 7959)Push-nut. EUROPE MODELS ONLY (7957, 7959)
-
43233261414 Elastic flanged nut. EUROPE MODELS ONLY (7957, 7959)Elastic flanged nut. EUROPE MODELS ONLY (7957, 7959)
-
44250100043 Push-nut. EUROPE MODELS ONLY (7957, 7959)Push-nut. EUROPE MODELS ONLY (7957, 7959)
-
45293300097 O-ring. EUROPE MODELS ONLY (7957, 7959)O-ring. EUROPE MODELS ONLY (7957, 7959)
-
46233201414 Elastic flanged nut M10. EUROPE MODELS ONLY (7957, 7959)Elastic flanged nut M10. EUROPE MODELS ONLY (7957, 7959)
-
47233281414 Elastic flanged nut M8. EUROPE MODELS ONLY (7957, 7959)Elastic flanged nut M8. EUROPE MODELS ONLY (7957, 7959)
-
48233251414 Elastic flanged nut M5. EUROPE MODELS ONLY (7957, 7959)Elastic flanged nut M5. EUROPE MODELS ONLY (7957, 7959)
-
49414115200 Tie Rap 180 mm. EUROPE MODELS ONLY (7957, 7959)Tie Rap 180 mm. EUROPE MODELS ONLY (7957, 7959)
-
50250200000 Serrated lock washer 6 mm. EUROPE MODELS ONLY (7957, 7959)Serrated lock washer 6 mm. EUROPE MODELS ONLY (7957, 7959)
