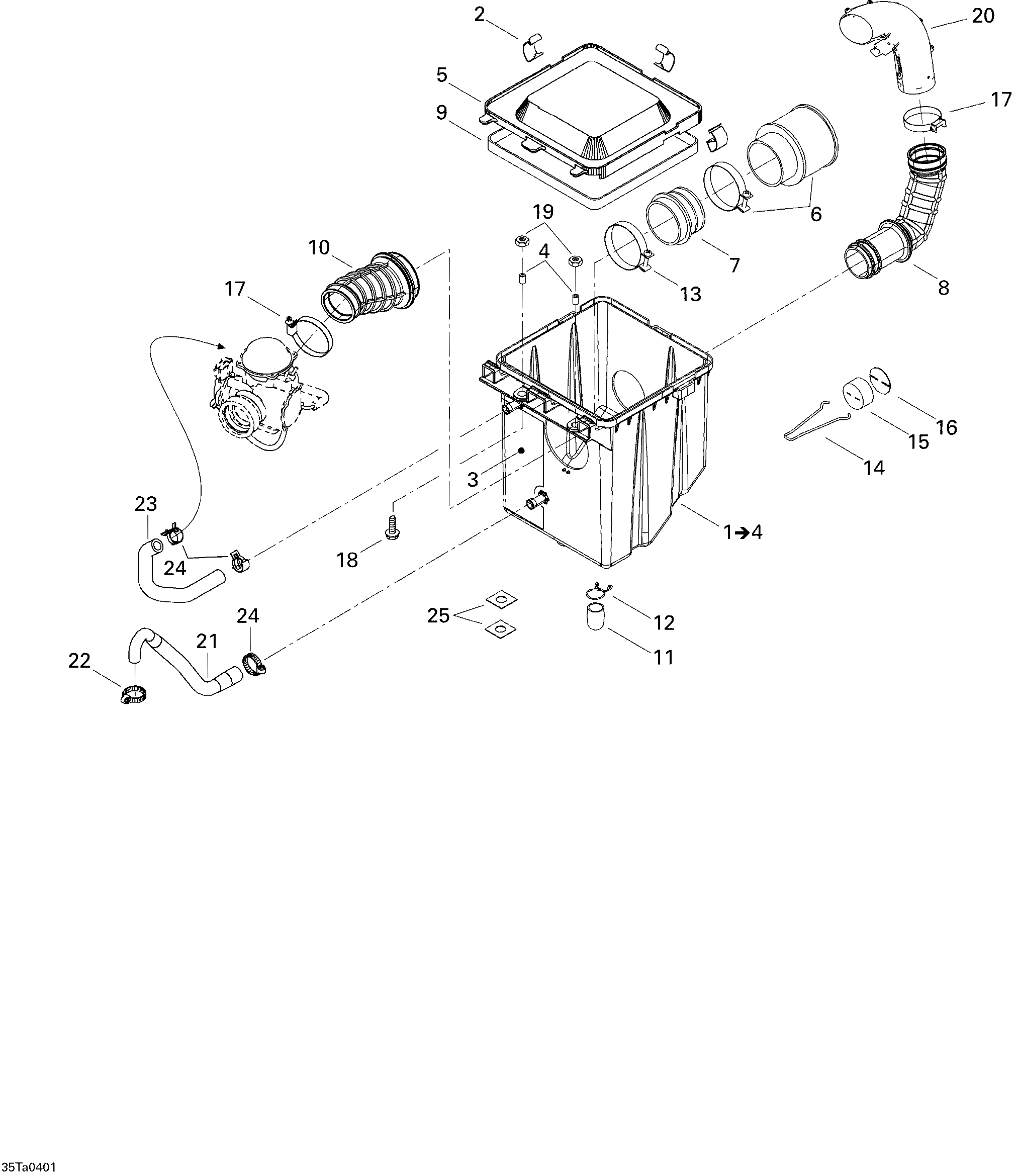

02- Air Intake Silencer для BRP Traxter Max Std & Max XT - 2004
-
№АртикулНазвание
-
1707800167 Silencer base. INCLUDES 1 TO 4Silencer base. INCLUDES 1 TO 4
-
2707800079 Bracket coverBracket cover
-
3707800083 Heat protectorHeat protector
-
5707800017 Muffler coverMuffler cover
-
6707800072 Air filterAir filter
-
7707800077 Rigid adaptorRigid adaptor
-
8707800078 Rear adaptor intakeRear adaptor intake
-
9293250113 Oil sealOil seal
-
10707800071 Intake adaptorIntake adaptor
-
11707800080 Drain tubeDrain tube
-
12707800081 Retainer clipRetainer clip
-
13293650107 Tridon clampTridon clamp
-
14707800087 Foam bracketFoam bracket
-
15707800088 Filter foamFilter foam
-
16707800089 Retainer bracketRetainer bracket
-
17293650158 Gemi clampGemi clamp
-
18207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
19233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
20707800073 Rear air intakeRear air intake
-
21707800085 Rear vent hoseRear vent hose
-
22293650109 Norma clampNorma clamp
-
23707800086 Vent hoseVent hose
-
24293650110 Norma clampNorma clamp
-
25293830091 Rubber bumperRubber bumper
