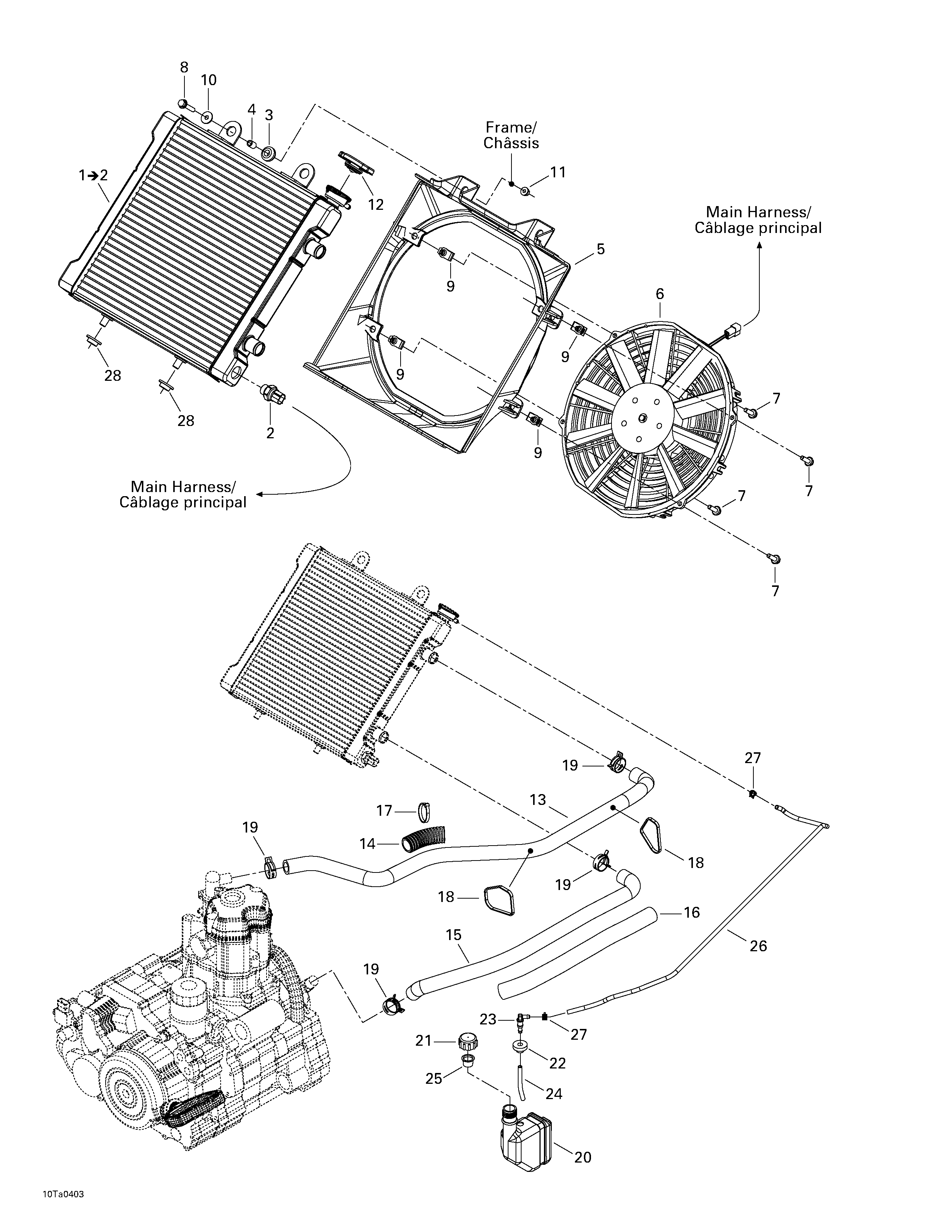

01- Cooling System для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1709200109 Radiator Ass'y. Includes 1 - 2.Radiator Ass'y. Includes 1 - 2.
-
2709200089 Temperature SensorTemperature Sensor
-
3293720053 GrommetGrommet
-
4293900019 BushingBushing
-
5709200111 Outlet DeflectorOutlet Deflector
-
6709200112 Fan Ass'yFan Ass'y
-
7207562044 Flanged Screw M6 x 20 (Scotch Grip)Flanged Screw M6 x 20 (Scotch Grip)
-
8207663044 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
9250000048 Nut M6 x 1.0Nut M6 x 1.0
-
10391302000 Flat WasherFlat Washer
-
11233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12709200033 Radiator Pressure CapRadiator Pressure Cap
-
13709200052 Radiator Inlet HoseRadiator Inlet Hose
-
14709200031 Protective ShieldProtective Shield
-
15709200054 Radiator Outlet HoseRadiator Outlet Hose
-
16709200032 Protective ShieldProtective Shield
-
17414115200 Tie Rap 180 mmTie Rap 180 mm
-
18293750008 Tie Rap 350 mmTie Rap 350 mm
-
19293650109 Norma Spring ClampNorma Spring Clamp
-
20709200099 Coolant TankCoolant Tank
-
21709200009 Tank CapTank Cap
-
22570135100 GrommetGrommet
-
23414580600 Elbow Male ConnectorElbow Male Connector
-
24415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
25709200034 Protector CapProtector Cap
-
26415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
27414554800 Spring ClampSpring Clamp
-
28709200115 BushingBushing
