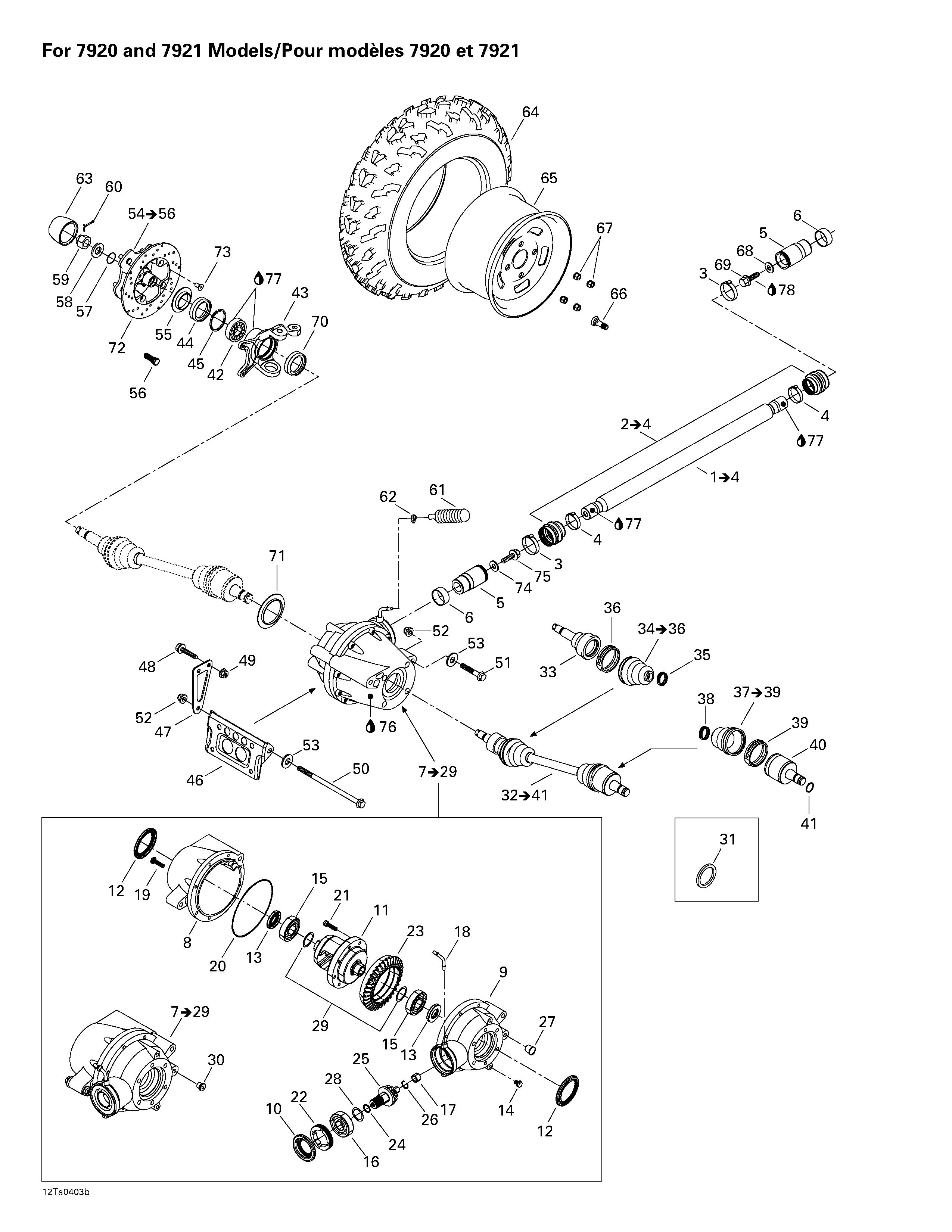

05- Drive System, Front (for 7920 And 7921 Models) для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1705400195 Drive Axle. Includes 1 - 4.Drive Axle. Includes 1 - 4.
-
2703500255 Rubber Boot Kit. Includes 2 - 4.Rubber Boot Kit. Includes 2 - 4.
-
3293650138 Oetiker ClampOetiker Clamp
-
4705400148 CollarCollar
-
5705400149 Coupling SleeveCoupling Sleeve
-
6705400036 Wear RingWear Ring
-
7705400264 Front Differential Ass'y. Includes 7 - 29.Front Differential Ass'y. Includes 7 - 29.
-
8705400099 Differential CapDifferential Cap
-
9705500515 Differential CarrierDifferential Carrier
-
10705400027 Oil SealOil Seal
-
11705400004 DifferentialDifferential
-
12705400019 Oil SealOil Seal
-
13705500255 Oil SealOil Seal
-
14705500245 Drain PlugDrain Plug
-
15705500259 Ball BearingBall Bearing
-
16705500260 Ball BearingBall Bearing
-
17705500261 Needle BearingNeedle Bearing
-
18705500262 Vent ValveVent Valve
-
19705500264 ScrewScrew
-
20705500265 SealSeal
-
21705400101 Ring Gear ScrewRing Gear Screw
-
22705500266 NutNut
-
23705400103 Gear (36 Teeth)Gear (36 Teeth)
-
24705500267 O-RingO-Ring
-
25705500268 Gear (10 Teeth)Gear (10 Teeth)
-
26705500269 Retaining RingRetaining Ring
-
27705500516 Protection PlugProtection Plug
-
28703500049 Pinion Gear Shim KitPinion Gear Shim Kit
-
29703500050 Differential Shim KitDifferential Shim Kit
-
30705500504 Fill Level PlugFill Level Plug
-
31705500506 Copper WasherCopper Washer
-
32705400125 R.H. CV Joint. Includes 32 - 41.R.H. CV Joint. Includes 32 - 41.
-
705400124 LH CV JointLH CV Joint
-
33705400093 CV JointCV Joint
-
34705400127 Boot Wheel Kit. Includes 34 - 36.Boot Wheel Kit. Includes 34 - 36.
-
35705400064 ClampClamp
-
36705400180 ClampClamp
-
37705400126 Boot Differential Kit. Includes 37 - 39.Boot Differential Kit. Includes 37 - 39.
-
38705400064 ClampClamp
-
39705400181 ClampClamp
-
40705400128 R.H. Plunging JointR.H. Plunging Joint
-
705400129 LH Plunging JointLH Plunging Joint
-
41705400042 CirclipCirclip
-
42705400088 Angle BearingAngle Bearing
-
43709400095 R.H. KnuckleR.H. Knuckle
-
709400097 LH KnuckleLH Knuckle
-
44705500099 Oil SealOil Seal
-
45293370019 CirclipCirclip
-
46705400255 Bolted BracketBolted Bracket
-
47705400069 Differential BracketDifferential Bracket
-
48207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
49233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
50250000024 Flanged Screw M10 x 200 (Scotch Grip)Flanged Screw M10 x 200 (Scotch Grip)
-
51207506044 Flanged screw M10 x 60 (Scotch Grip)Flanged screw M10 x 60 (Scotch Grip)
-
52233101414 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
53250200003 Flat WasherFlat Washer
-
54705500254 Wheel Hub Ass'y. Includes 54 - 56.Wheel Hub Ass'y. Includes 54 - 56.
-
55705500100 Wear RingWear Ring
-
56250300020 Wheel StudWheel Stud
-
57705500271 O-RingO-Ring
-
58250200019 WasherWasher
-
59232291413 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
60250400016 Cotter PinCotter Pin
-
61705400066 Rubber BellowRubber Bellow
-
62293750001 Tie Rap 94 mmTie Rap 94 mm
-
63705400012 Wheel CapWheel Cap
-
64705400009 Front TireFront Tire
-
65705400010 Front RimFront Rim
-
66705400193 Rim ValveRim Valve
-
67705400013 Hex. NutHex. Nut
-
68211200041 WasherWasher
-
69207581646 Flanged Screw M8 x 16 (Scotch Grip)Flanged Screw M8 x 16 (Scotch Grip)
-
70293250090 Oil SealOil Seal
-
71705400016 Wear RingWear Ring
-
72705600342 Brake DiscBrake Disc
-
73235381646 Torx Screw M8 x 16 (Scotch Grip)Torx Screw M8 x 16 (Scotch Grip)
-
74250200014 Flat WasherFlat Washer
-
75250000060 Flanged Screw M10 x 16 (Scotch Grip)Flanged Screw M10 x 16 (Scotch Grip)
-
76293600011 Redline Pump Oil, 75W90, 12 x 6 ozRedline Pump Oil, 75W90, 12 x 6 oz
-
77293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
78293800005 Loctite 271, 10 mlLoctite 271, 10 ml
