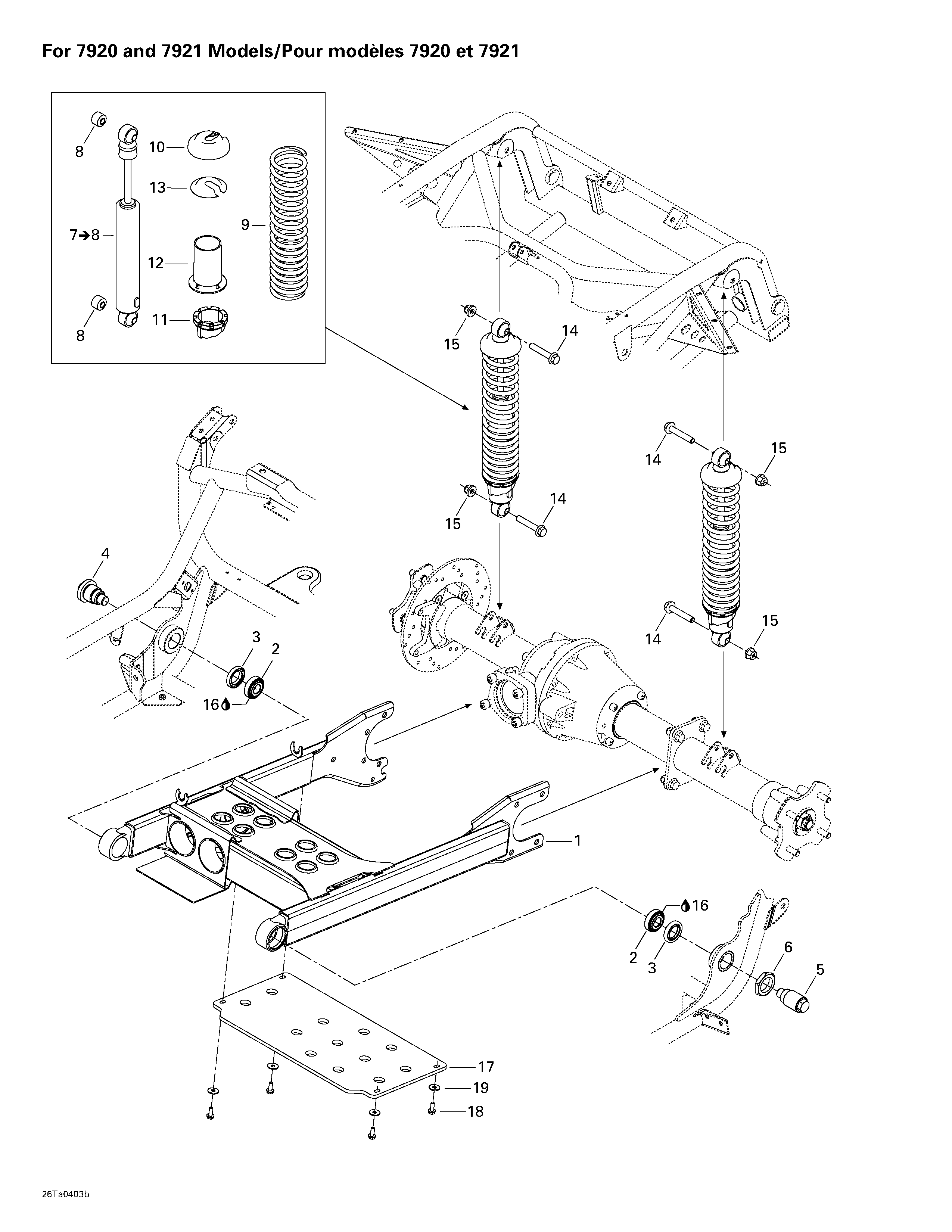

08- Rear Suspension (for 7920 And 7921 Models) для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1706000295 Swing ArmSwing Arm
-
2706000169 Cone BearingCone Bearing
-
3706000010 Oil Seal Ass'yOil Seal Ass'y
-
4706000092 R.H. Pivot BoltR.H. Pivot Bolt
-
5706000093 L.H. Pivot BoltL.H. Pivot Bolt
-
6706000006 Hex. Jam NutHex. Jam Nut
-
7706000239 Rear Shock. Includes 7 - 8.Rear Shock. Includes 7 - 8.
-
8706000147 CushionCushion
-
9706000114 Rear SpringRear Spring
-
10503140600 Spring StopperSpring Stopper
-
11503189205 CamCam
-
12706000137 ProtectorProtector
-
13503141600 CapCap
-
14207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
15233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
16293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
17706200293 Protector PlateProtector Plate
-
18210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
19391302200 Flat WasherFlat Washer
