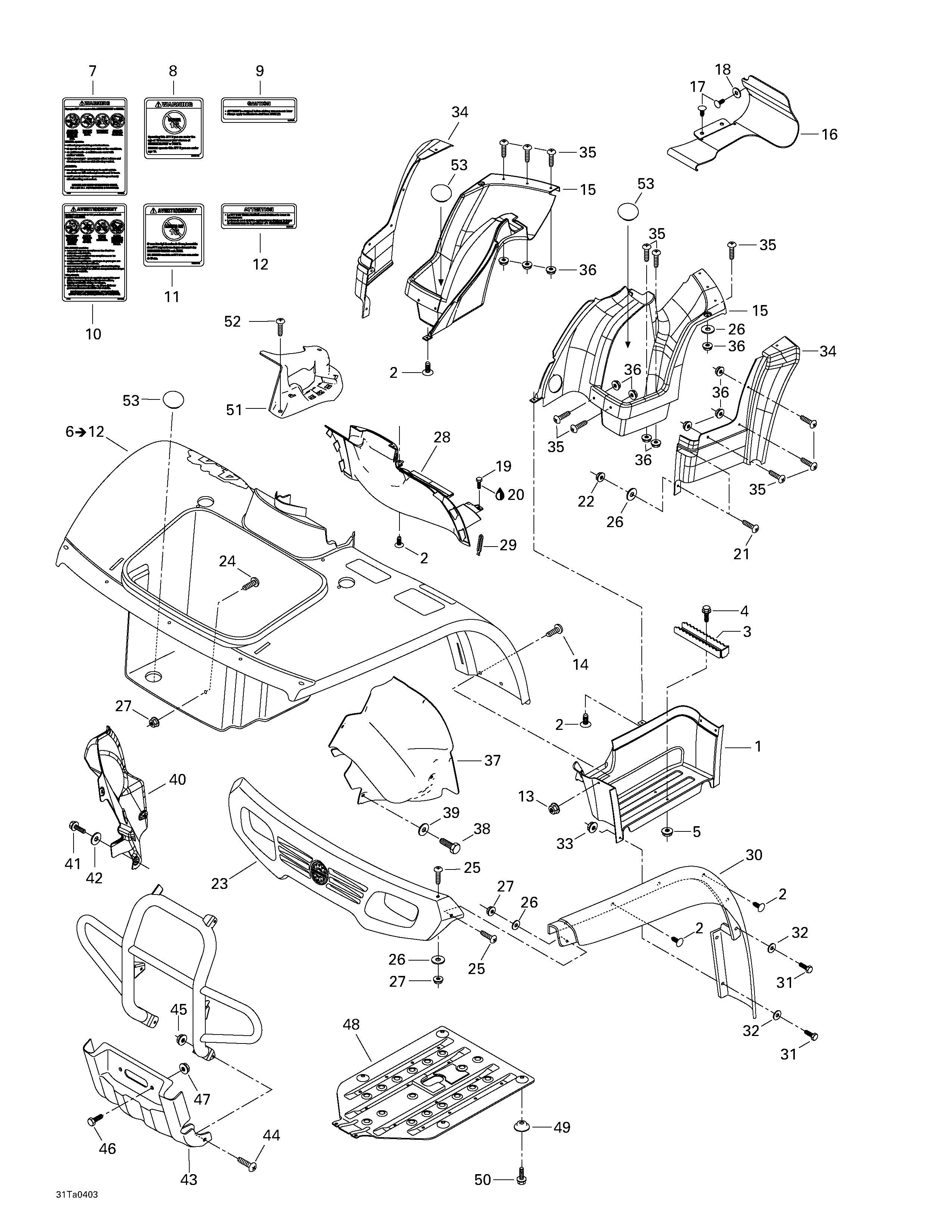

09- Body And Accessories для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1705000822 R.H. FootboardR.H. Footboard
-
705000823 L.H. FootboardL.H. Footboard
-
2293730011 Dart (Black)Dart (Black)
-
3705001083 FootrestFootrest
-
4207662584 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
5233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
6703500315 Front Fender Kit (Laurentian Green). Includes 6 - 12.Front Fender Kit (Laurentian Green). Includes 6 - 12.
-
7704900001 Warning Label (English). (Injuries and Death)Warning Label (English). (Injuries and Death)
-
8704900011 Warning Label (English). (Under 16 Years Old)Warning Label (English). (Under 16 Years Old)
-
9704900007 Warning Label (English). (Transmission Selector)Warning Label (English). (Transmission Selector)
-
10704900002 Warning Label (French). (Injuries and Death)Warning Label (French). (Injuries and Death)
-
11704900012 Warning Label (French). (Under 16 Years Old)Warning Label (French). (Under 16 Years Old)
-
12704900008 Warning Label (French). (Transmission Selector)Warning Label (French). (Transmission Selector)
-
13233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14211000123 Screw Phillips M6 x 20Screw Phillips M6 x 20
-
15705000842 Rear Fender R.H. (Green)Rear Fender R.H. (Green)
-
705000843 Rear Fender L.H. (Green)Rear Fender L.H. (Green)
-
16705000413 Air ShieldAir Shield
-
17390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
18391301600 WasherWasher
-
19207661244 Hex. Flanged Screw M6 x 12Hex. Flanged Screw M6 x 12
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
22233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23705000708 Front FasciaFront Fascia
-
24211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
25211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
26224060201 Flat WasherFlat Washer
-
27233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
28705000710 Tank CoverTank Cover
-
29570023800 LatchLatch
-
30705000827 L.H. Front MudguardL.H. Front Mudguard
-
705000828 R.H. Front MudguardR.H. Front Mudguard
-
31207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
32224060201 Flat WasherFlat Washer
-
33233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34705000845 L.H. Rear MudguardL.H. Rear Mudguard
-
705000846 R.H. Rear MudguardR.H. Rear Mudguard
-
35211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37705000133 L.H. ProtectorL.H. Protector
-
38210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
39224061201 Flat WasherFlat Washer
-
40705000134 R.H. ProtectorR.H. Protector
-
41210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
42224060201 Flat WasherFlat Washer
-
43705000713 Protection PlateProtection Plate
-
44211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
45233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
46207602544 Hex. Flanged Screw M10 x 25Hex. Flanged Screw M10 x 25
-
47233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
48705200535 PlatePlate
-
49705200533 CupCup
-
50207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
51705000081 IndicatorIndicator
-
52414745900 Screw PhillipsScrew Phillips
-
53570041600 Rubber CoverRubber Cover
