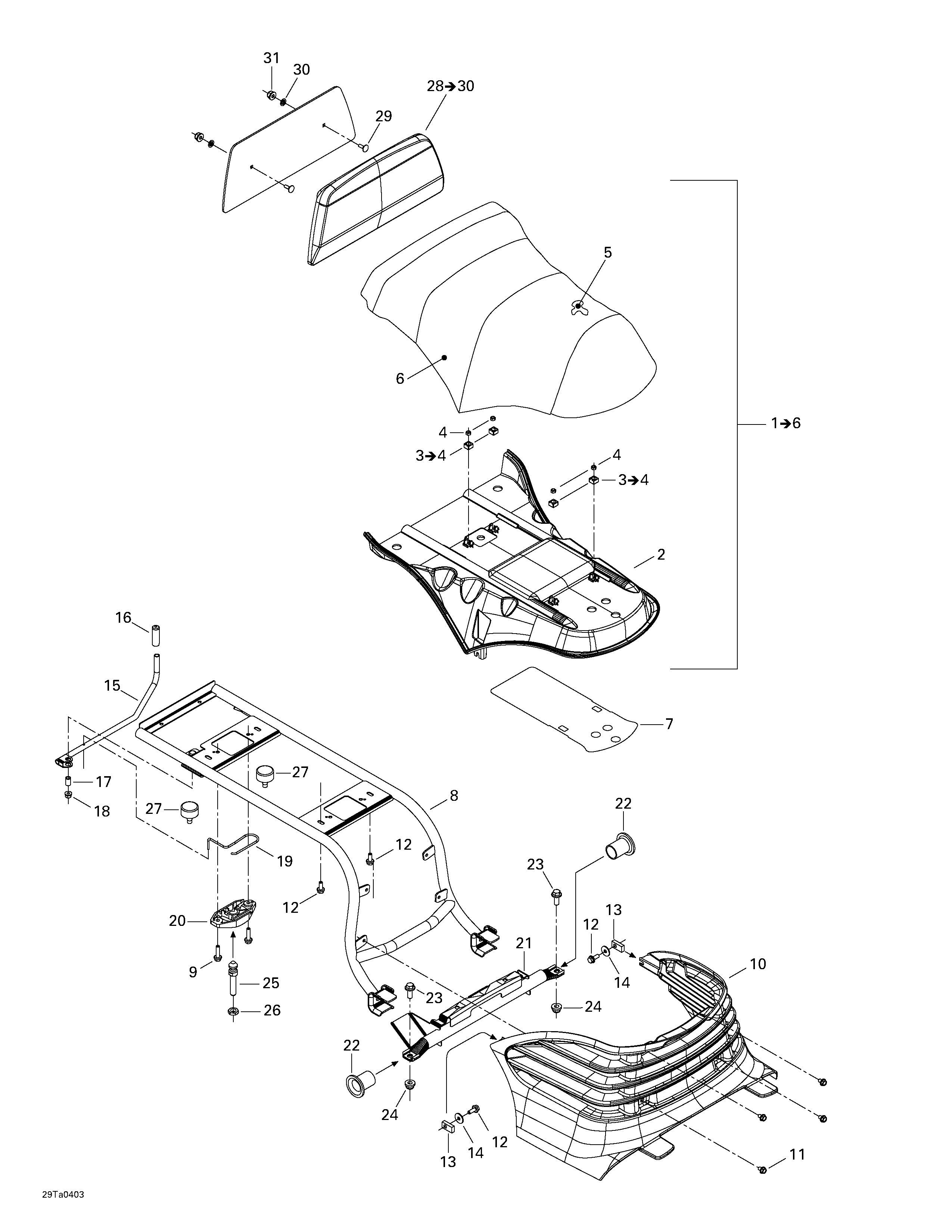

09- Seat для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1708000235 Seat Ass'y. Includes 1 - 6.Seat Ass'y. Includes 1 - 6.
-
3708000046 Nut Housing Ass'y. Includes 3 - 4.Nut Housing Ass'y. Includes 3 - 4.
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6708000237 Seat CoverSeat Cover
-
7708000160 Reflective SheetReflective Sheet
-
8708000069 Seat SupportSeat Support
-
9207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
10705000879 Engine CoverEngine Cover
-
11210261080 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
12207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
13708000042 Nut HousingNut Housing
-
14224061201 Flat WasherFlat Washer
-
15708000074 Latch Lever (Black)Latch Lever (Black)
-
16708000087 Cap (Vinyl)Cap (Vinyl)
-
17708000084 SleeveSleeve
-
18233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19708000073 SpringSpring
-
20708000034 Latch BaseLatch Base
-
21708000044 Seat PivotSeat Pivot
-
22708000019 Seat BushingSeat Bushing
-
23207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
24233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
25291000945 Seat StudSeat Stud
-
26232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
27708000006 Rubber stopperRubber stopper
-
28708000079 Backrest Ass'y. Includes 28 - 30.Backrest Ass'y. Includes 28 - 30.
-
29207763060 Carriage Bolt M6 x 30Carriage Bolt M6 x 30
-
30250100020 Locking NutLocking Nut
-
31233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
