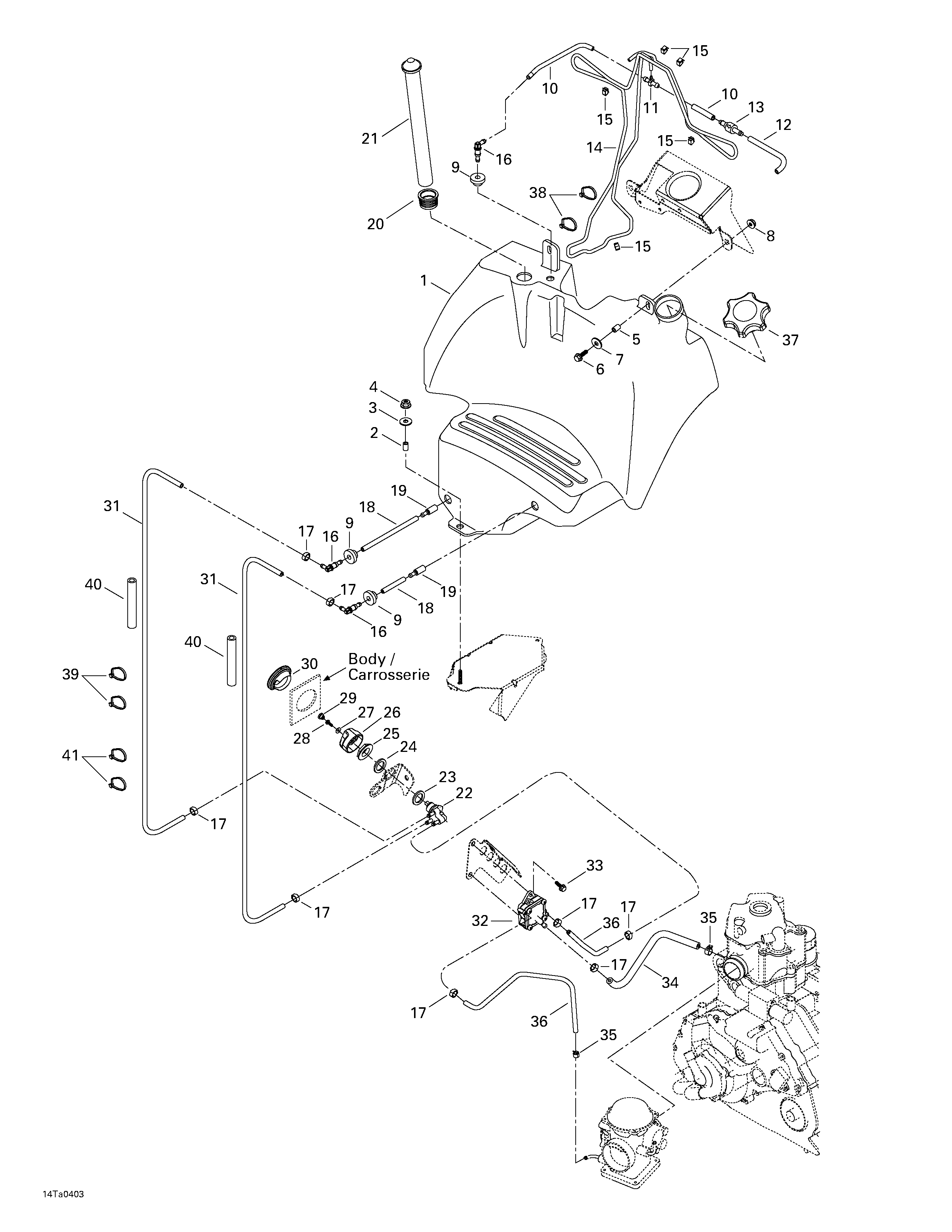

02- Fuel Tank для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1709000025 Fuel TankFuel Tank
-
2293900028 BushingBushing
-
3234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5293900029 BushingBushing
-
6207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
7224061201 Flat WasherFlat Washer
-
8233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9570045500 GrommetGrommet
-
10415080200 Line (Meter)Line (Meter)
-
11414222500 T-FittingT-Fitting
-
12709000029 Vent HoseVent Hose
-
13275500479 Check ValveCheck Valve
-
14709000031 Vent HoseVent Hose
-
15414227300 ClipClip
-
16414580600 Elbow Male ConnectorElbow Male Connector
-
17293650042 Oetiker ClampOetiker Clamp
-
18415080200 Fuel LineFuel Line
-
19414865700 Fuel FilterFuel Filter
-
20293720058 GrommetGrommet
-
21709000078 Fuel GaugeFuel Gauge
-
22275500098 Fuel ValveFuel Valve
-
23293250004 Fuel Valve GasketFuel Valve Gasket
-
24250200015 WasherWasher
-
25212100009 Hex. Plastic NutHex. Plastic Nut
-
26275500263 Fuel Valve KnobFuel Valve Knob
-
27234040600 Flat Washer 4 mmFlat Washer 4 mm
-
28208640860 Phillips Screw M4 x 8Phillips Screw M4 x 8
-
29275500241 Plug CapPlug Cap
-
30709000005 GrommetGrommet
-
31415079800 Hose 1/4''Hose 1/4''
-
32707200000 Fuel PumpFuel Pump
-
33210261040 Hex. Forming Screw M6 x 10Hex. Forming Screw M6 x 10
-
34709000024 Formed HoseFormed Hose
-
35414415200 Spring ClampSpring Clamp
-
36415079800 Hose 1/4''Hose 1/4''
-
37513033025 CapCap
-
38293750002 Tie Rap 130 mmTie Rap 130 mm
-
39414115200 Tie Rap 350 mmTie Rap 350 mm
-
40409901800 TubingTubing
-
41293750008 Tie Rap 350 mmTie Rap 350 mm
