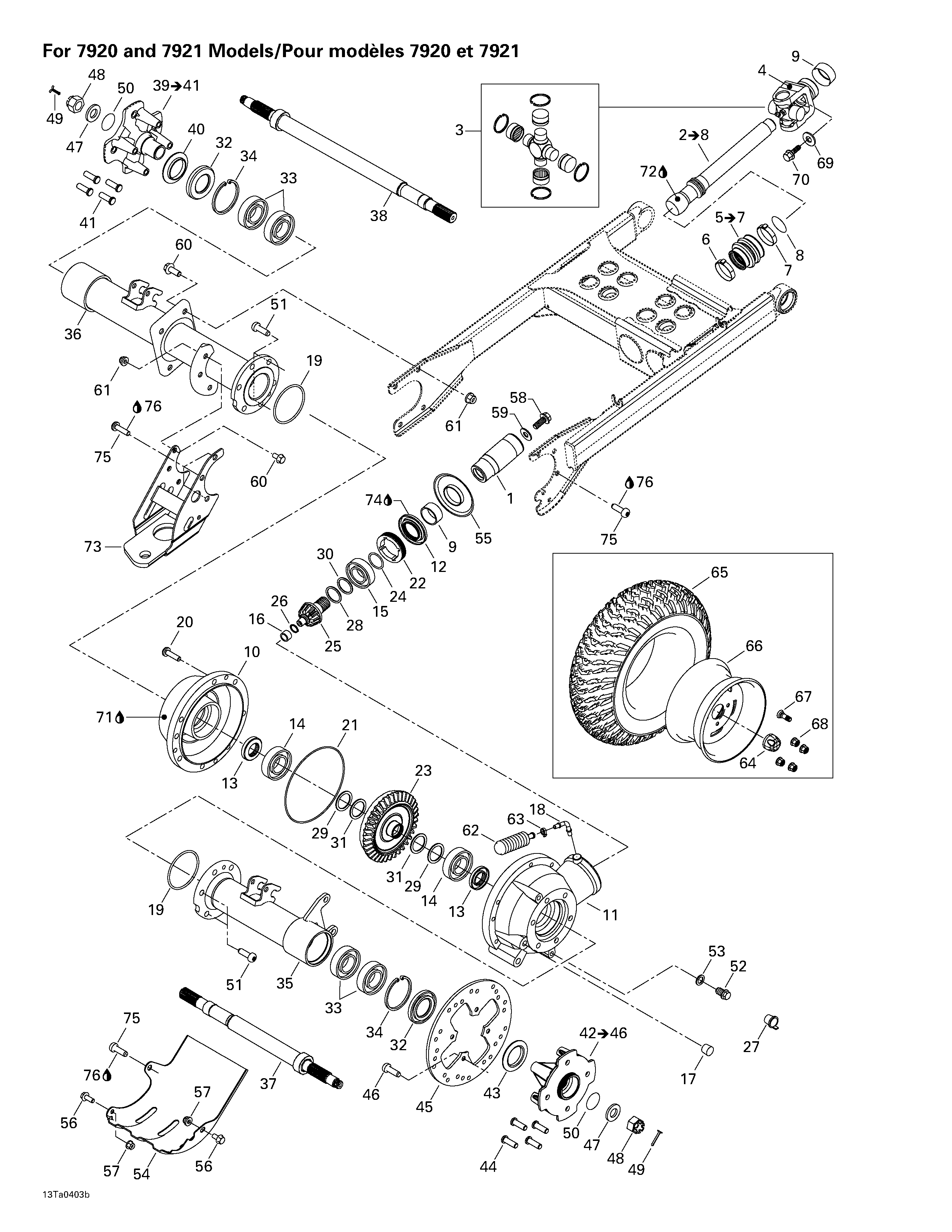

05- Drive System, Rear (for 7920 And 7921 Models) для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1705400149 Coupling SleeveCoupling Sleeve
-
2705500393 Rear Axle Ass'y. Includes 2 - 8.Rear Axle Ass'y. Includes 2 - 8.
-
3703500304 Unit Pack KitUnit Pack Kit
-
4705500371 Fix JointFix Joint
-
5703500255 Rubber Boot Kit. Includes 5 - 7.Rubber Boot Kit. Includes 5 - 7.
-
6293650138 Oetiker ClampOetiker Clamp
-
7705400148 CollarCollar
-
8705500315 Sealing RingSealing Ring
-
9705400036 Wear RingWear Ring
-
10705500175 Differential CapDifferential Cap
-
11705500512 Differential CarrierDifferential Carrier
-
12705500248 Oil SealOil Seal
-
13705500255 Oil SealOil Seal
-
14705500259 Ball BearingBall Bearing
-
15705500260 Ball BearingBall Bearing
-
16705500261 Needle BearingNeedle Bearing
-
17705500245 Drain PlugDrain Plug
-
18705500262 Vent ValveVent Valve
-
19705500263 O-RingO-Ring
-
20705500264 ScrewScrew
-
21705500265 SealSeal
-
22705500266 NutNut
-
23705500223 Gear (36 Teeth)Gear (36 Teeth)
-
24705500267 O-RingO-Ring
-
25705500268 Gear (10 Teeth)Gear (10 Teeth)
-
26705500269 Retaining RingRetaining Ring
-
27705500516 Protection PlugProtection Plug
-
28703500049 Pinion Gear Shim KitPinion Gear Shim Kit
-
29703500050 Differential Shim KitDifferential Shim Kit
-
30705500075 Pinion Gear ShimPinion Gear Shim
-
31705500079 Differential ShimDifferential Shim
-
32705500099 Oil SealOil Seal
-
33705500251 Ball BearingBall Bearing
-
34705500249 Retaining RingRetaining Ring
-
35705500250 R.H. Axle TubeR.H. Axle Tube
-
36705500182 LH Axle TubeLH Axle Tube
-
37705500183 R.H. Axle Ass'yR.H. Axle Ass'y
-
38705500184 LH Axle Ass'yLH Axle Ass'y
-
39705500254 LH Rear Wheel Hub Ass'y. Includes 39 - 41.LH Rear Wheel Hub Ass'y. Includes 39 - 41.
-
40705500100 Wear RingWear Ring
-
41250300020 Wheel StudWheel Stud
-
42705500449 R.H. Rear Wheel Hub Ass'y. Includes 42 - 46.R.H. Rear Wheel Hub Ass'y. Includes 42 - 46.
-
43705500100 Wear RingWear Ring
-
44250300020 Wheel StudWheel Stud
-
45705600343 Brake DiscBrake Disc
-
46235381646 Torx Screw M8 x 16 (Scotch Grip)Torx Screw M8 x 16 (Scotch Grip)
-
47250200019 WasherWasher
-
48232291413 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
49250400016 Cotter PinCotter Pin
-
50705500271 O-RingO-Ring
-
51250000085 Torx Screw M10 x 30Torx Screw M10 x 30
-
52705500504 Fill Level PlugFill Level Plug
-
53705500506 Copper WasherCopper Washer
-
54705500185 Diffential ProtectorDiffential Protector
-
55705500214 Joint ProtectorJoint Protector
-
56207681644 Hex. Flanged Screw M8 x 16Hex. Flanged Screw M8 x 16
-
57233181414 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
58250000060 Flanged Screw M10 x 16 (Scotch Grip)Flanged Screw M10 x 16 (Scotch Grip)
-
59250200014 Flat WasherFlat Washer
-
60207602544 Hex. Flanged Screw M10 x 25Hex. Flanged Screw M10 x 25
-
61233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
62705400066 Rubber BellowRubber Bellow
-
63293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
64705400012 Wheel CapWheel Cap
-
65705500230 Rear TireRear Tire
-
66705500239 Rear RimRear Rim
-
67705400193 Rim ValveRim Valve
-
68705400013 Hex. Nut (Wheel)Hex. Nut (Wheel)
-
69211200041 WasherWasher
-
70207681686 Hex. Flanged Screw M8 x 16Hex. Flanged Screw M8 x 16
-
71293600011 Redline Pump Oil, 75W90, 12 x 6 ozRedline Pump Oil, 75W90, 12 x 6 oz
-
72293550019 Grease, 60 gGrease, 60 g
-
73705500244 Trailer HookTrailer Hook
-
74293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
75250000085 Torx Forming Screw M10 x 30Torx Forming Screw M10 x 30
-
76413703100 Loctite 609, 10 mlLoctite 609, 10 ml
