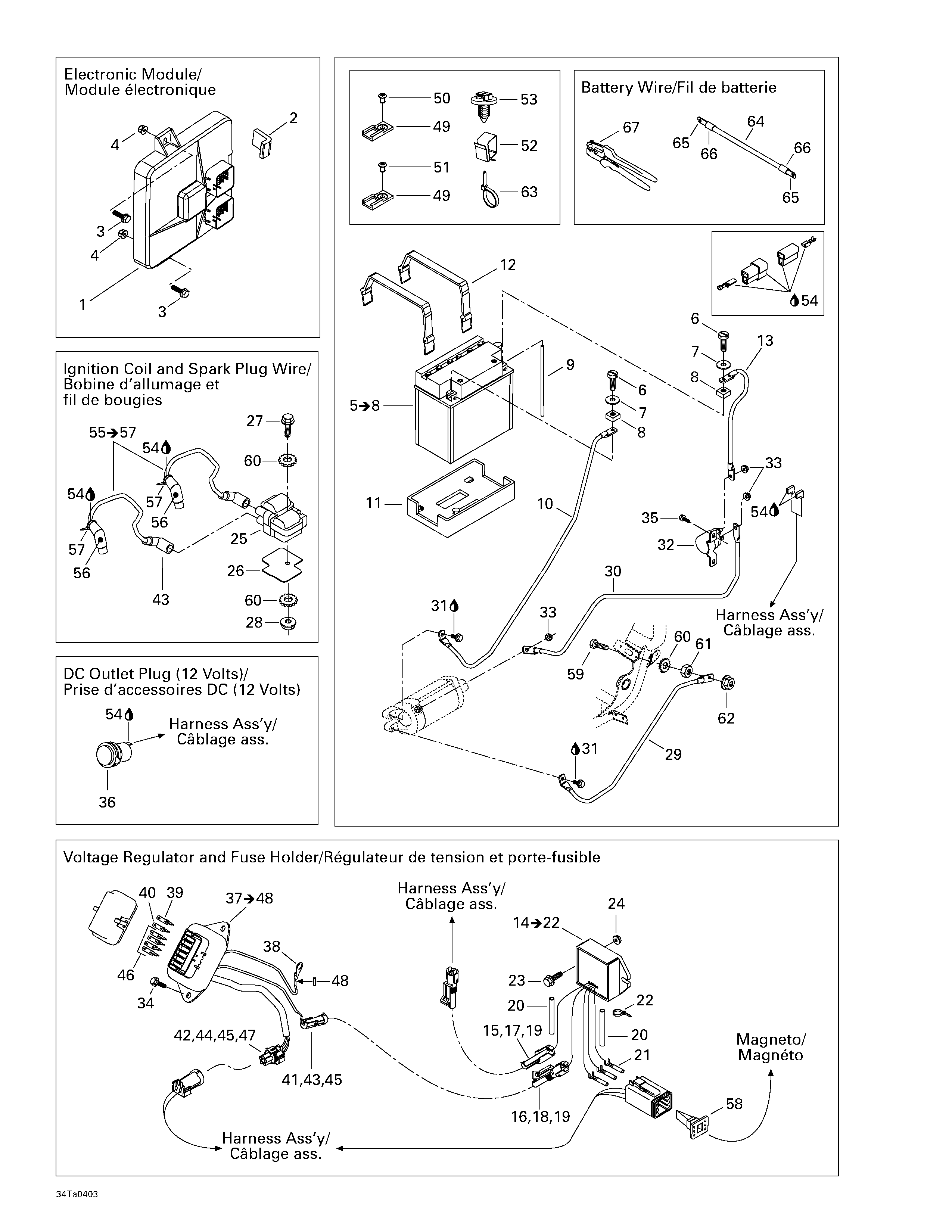

10- Battery And Electrical Accessories для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1710000333 Electronic ModuleElectronic Module
-
2278001166 Module ProtectorModule Protector
-
3207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
4233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
5278001756 Battery. Includes 5 - 8.Battery. Includes 5 - 8.
-
6211000045 Hex. ScrewHex. Screw
-
7211200018 Flat Washer 6 mmFlat Washer 6 mm
-
8211100022 Nut M6Nut M6
-
9415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
10710000022 Ground CableGround Cable
-
11278001746 Battery Lower PadBattery Lower Pad
-
12293850080 Rubber StrapRubber Strap
-
14710000169 Voltage Regulator. Includes 14 - 22.Voltage Regulator. Includes 14 - 22.
-
15278000222 Male TerminalMale Terminal
-
16278000223 Female TerminalFemale Terminal
-
17278000161 Female Housing (1 Circuit)Female Housing (1 Circuit)
-
18278000219 Male Housing (1 Circuit)Male Housing (1 Circuit)
-
19278000218 Wire SealWire Seal
-
20409901300 Vinyl Low Temperature Tubing (meter)Vinyl Low Temperature Tubing (meter)
-
21710000034 Female TerminalFemale Terminal
-
22293750001 Tie Rap 94 mmTie Rap 94 mm
-
23207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
24233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25278001546 Ignition CoilIgnition Coil
-
26710000073 Insulator PadInsulator Pad
-
27207665044 Hex. Flanged Screw M6 x 50Hex. Flanged Screw M6 x 50
-
28233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29710000211 Ground CableGround Cable
-
30710000136 Positive CablePositive Cable
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32710000111 Starter RelayStarter Relay
-
33232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
34210261680 Forming Hex. Screw M6 x 16Forming Hex. Screw M6 x 16
-
35250000061 Hex. Screw 1/4''-20 x 3/4''Hex. Screw 1/4''-20 x 3/4''
-
36861507200 DC Outlet Plug (12 Volts)DC Outlet Plug (12 Volts)
-
37710000579 Fuse Holder. Includes 37 - 48.Fuse Holder. Includes 37 - 48.
-
38278001392 Open BarrelOpen Barrel
-
39410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
40409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
41409004300 Male TerminalMale Terminal
-
42409007300 Female TerminalFemale Terminal
-
43278000161 Female Housing (1 Circuit)Female Housing (1 Circuit)
-
44278000218 Wire SealWire Seal
-
45710000048 Wire SealWire Seal
-
46278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
47710000106 Male Housing (5 Circuits)Male Housing (5 Circuits)
-
48710000482 Tubing ShrinkTubing Shrink
-
49270000141 ClipClip
-
50390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
51390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
52414227300 ClipClip
-
53293730018 Mount DartMount Dart
-
54293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
55710000039 Spark Plug Wire. Includes 55 - 57.Spark Plug Wire. Includes 55 - 57.
-
56710000041 Spark Plug CapSpark Plug Cap
-
57293750001 Tie Rap 94 mmTie Rap 94 mm
-
58278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
59207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
60234461608 Serrated Lock Washer M6Serrated Lock Washer M6
-
61232061414 Hex. Nut M6Hex. Nut M6
-
62233261414 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
63293750002 Tie Rap 130 mmTie Rap 130 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
64278001690 Red Cable Battery (no. 6) (Meter)Red Cable Battery (no. 6) (Meter)
-
65278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
278001683 Terminal 45 Deg. (Small Hole)Terminal 45 Deg. (Small Hole)
-
278001684 Terminal 90 Deg. (Small Hole)Terminal 90 Deg. (Small Hole)
-
278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
278001686 Terminal 45 Deg. (Big Hole)Terminal 45 Deg. (Big Hole)
-
278001687 Terminal 90 Deg. (Big Hole)Terminal 90 Deg. (Big Hole)
-
278001688 Flat TerminalFlat Terminal
-
278001776 Terminal 30 Deg. (2 holes)Terminal 30 Deg. (2 holes)
-
66278001692 Heat ShrinkHeat Shrink
-
67529035730 Crimp PlierCrimp Plier
