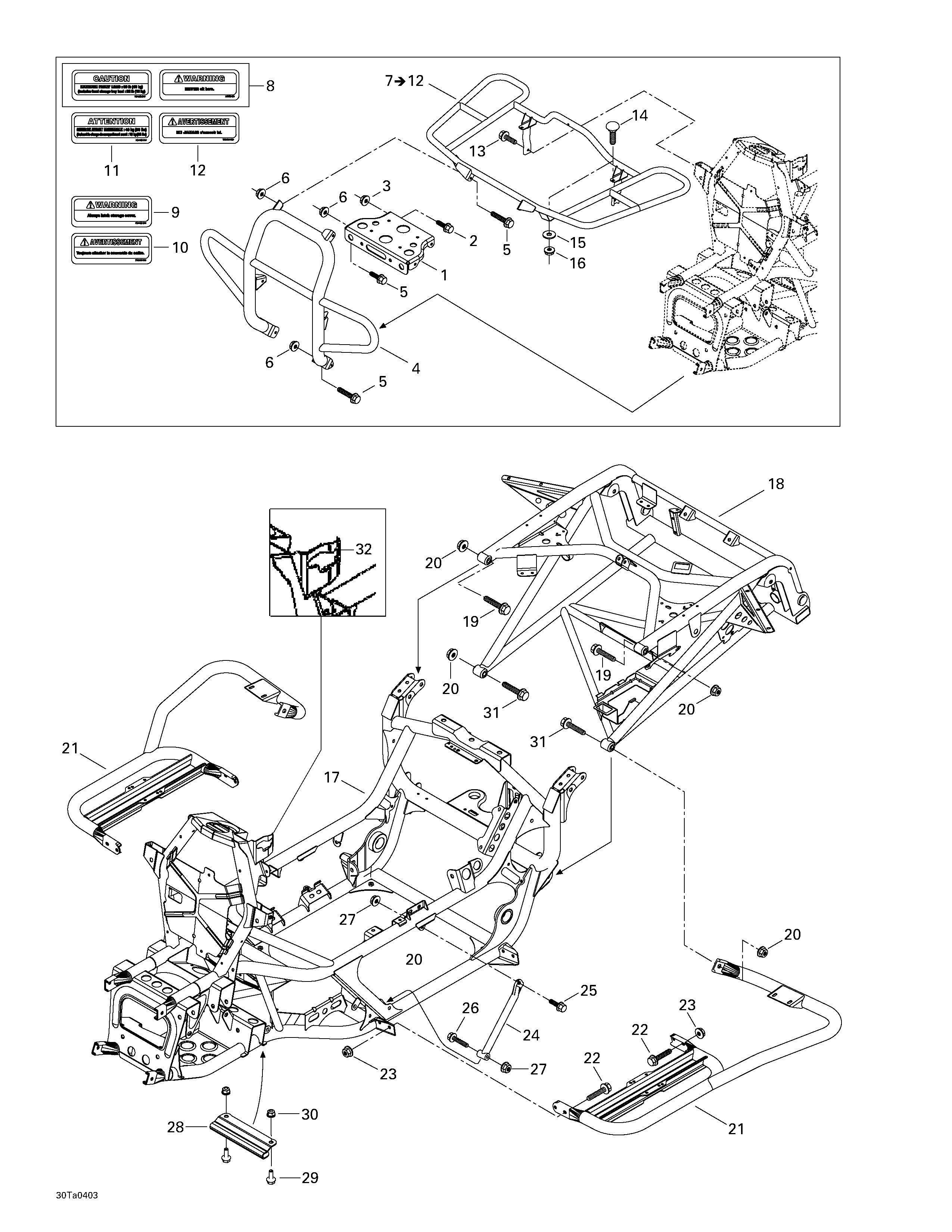

09- Frame And Luggage Racks для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1705200196 Winch Latch (Black)Winch Latch (Black)
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4705000591 Front BumperFront Bumper
-
5207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
6233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
7703500350 Front Luggage Rack Kit (Black). Includes 7 - 12.Front Luggage Rack Kit (Black). Includes 7 - 12.
-
8704900037 Warning Label Ass'y (English). (Maximun Front Load/Never Sit Here)Warning Label Ass'y (English). (Maximun Front Load/Never Sit Here)
-
9704900038 Warning Label (English). (Latch Storage Cover)Warning Label (English). (Latch Storage Cover)
-
10704900039 Warning Label (French). (Latch Storage Cover)Warning Label (French). (Latch Storage Cover)
-
11704900016 Caution Decal, Maximum Load. (Maximum Front Load)Caution Decal, Maximum Load. (Maximum Front Load)
-
12704900018 Warning Label (French). (Never Sit Here)Warning Label (French). (Never Sit Here)
-
13207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
14250000035 Carriage Bolt M6 x 25Carriage Bolt M6 x 25
-
15224060201 Flat WasherFlat Washer
-
16233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
17705200723 Frame (Black)Frame (Black)
-
18705200567 Frame Extention (Black)Frame Extention (Black)
-
19207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
20233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
21705200887 L.H. Footrest (Black)L.H. Footrest (Black)
-
705200888 R.H. Footrest (Black)R.H. Footrest (Black)
-
22207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
23233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
24705200143 Removable BraceRemovable Brace
-
25207682544 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
26207685044 Hex. Flanged Screw M8 x 50Hex. Flanged Screw M8 x 50
-
27233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
28705200575 BracketBracket
-
29207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
30233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
31207606044 Hex. Flanged Screw M10 x 60Hex. Flanged Screw M10 x 60
-
32705200351 Shift PaternShift Patern
