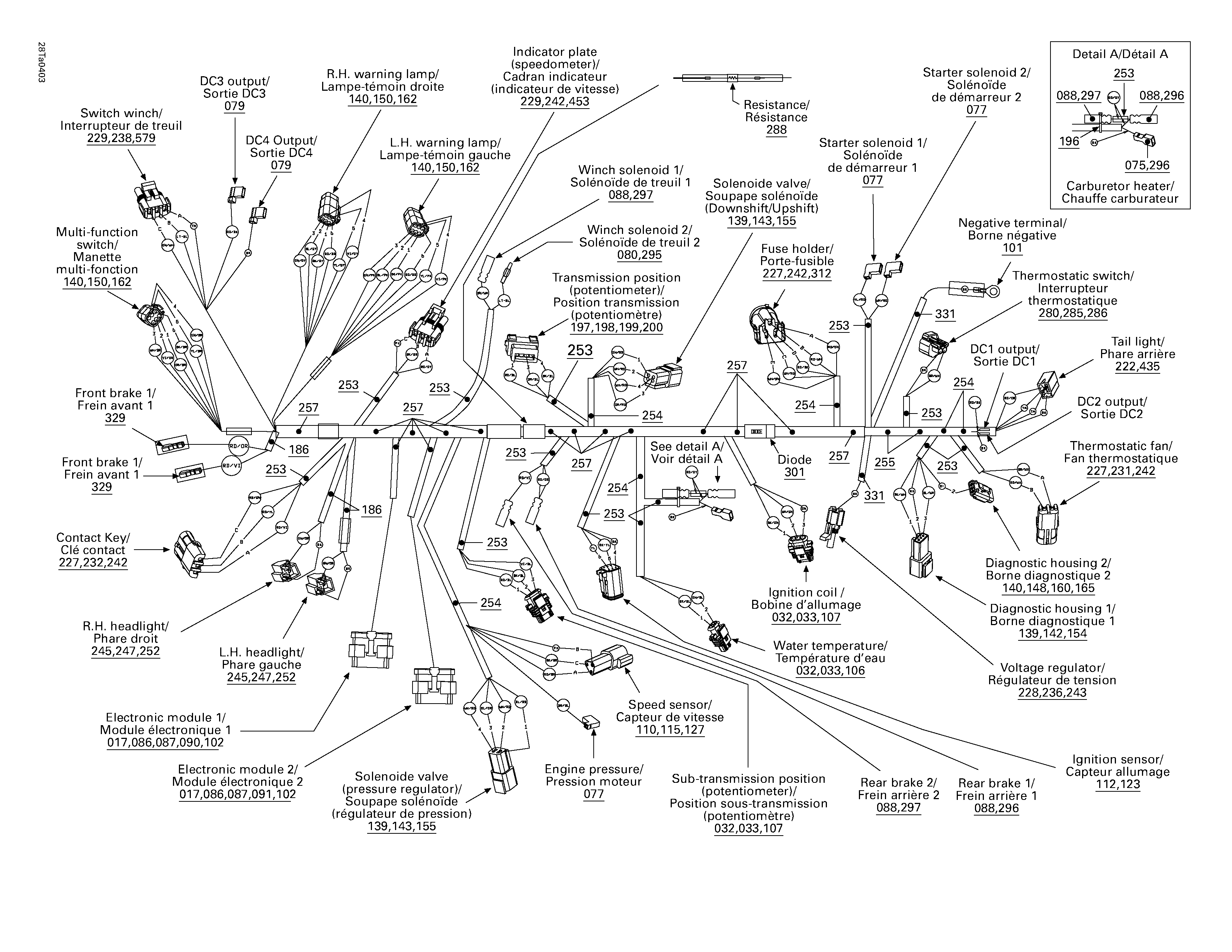

10- Main Harness для BRP Traxter XL - 2004
-
№АртикулНазвание
-
17710000431 Harness Ass'y. Includes 17 - 454.Harness Ass'y. Includes 17 - 454.
-
17278000996 SealSeal
-
32278000998 Female TerminalFemale Terminal
-
33278000999 Wire SealWire Seal
-
75409010700 Female TerminalFemale Terminal
-
77409010300 Female TerminalFemale Terminal
-
79710000038 Female TerminalFemale Terminal
-
80278000230 Male TerminalMale Terminal
-
86278000995 Female TerminalFemale Terminal
-
87278000994 Female TerminalFemale Terminal
-
88278001009 Female TerminalFemale Terminal
-
90278001062 Female Terminal Housing (26 Circuits). Includes 90 - 90A.Female Terminal Housing (26 Circuits). Includes 90 - 90A.
-
90A278001307 Wire SealWire Seal
-
91278001063 Female Terminal Housing (26 Circuits). Includes 91 - 91A.Female Terminal Housing (26 Circuits). Includes 91 - 91A.
-
91A278001307 Wire SealWire Seal
-
101278001392 Ring TerminalRing Terminal
-
102293000070 Sealing CapSealing Cap
-
106278001005 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
107278000997 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
115409207000 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
123278000736 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
127409207600 Male Lock (3 Circuits)Male Lock (3 Circuits)
-
139409014800 Male TerminalMale Terminal
-
140409015100 Female TerminalFemale Terminal
-
142710000044 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
143710000045 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
148515175249 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
150409015400 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
154710000043 (Male) Secondary Lock (3 Circuits) (Deutsch)(Male) Secondary Lock (3 Circuits) (Deutsch)
-
155710000046 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
160515175248 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
162409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
165515175303 PlugPlug
-
186515175332 Tubing Low Temperature 1/4''Tubing Low Temperature 1/4''
-
196293750002 Tie Rap 130 mmTie Rap 130 mm
-
197710000051 Female TerminalFemale Terminal
-
198710000032 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
199710000050 Wire SealWire Seal
-
200710000049 CapCap
-
222409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
227409004300 Male TerminalMale Terminal
-
228409007300 Female TerminalFemale Terminal
-
229278000223 Female TerminalFemale Terminal
-
231278000217 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
232278000281 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
236278000219 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
238278000273 Female Terminal Housing (3 Circuit)Female Terminal Housing (3 Circuit)
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
245710000028 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
247710000027 Female TerminalFemale Terminal
-
252710000026 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
253515175442 Housing 6 mmHousing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
259409902200 Tubing 25 mmTubing 25 mm
-
280409012100 Female TerminalFemale Terminal
-
285710000078 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
286409012300 SealSeal
-
295278001008 Insulated SheathInsulated Sheath
-
296278000770 Insulated SheathInsulated Sheath
-
297278001007 Insulated SheathInsulated Sheath
-
298293740005 Adhesive Tape 3/4'' (Black Vinyl)Adhesive Tape 3/4'' (Black Vinyl)
-
312710000107 Male Terminal Housing (5 Circuits)Male Terminal Housing (5 Circuits)
-
329710000082 Female TerminalFemale Terminal
-
331710000244 Protector TubeProtector Tube
-
453710000347 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
579710000504 Wire SealWire Seal
