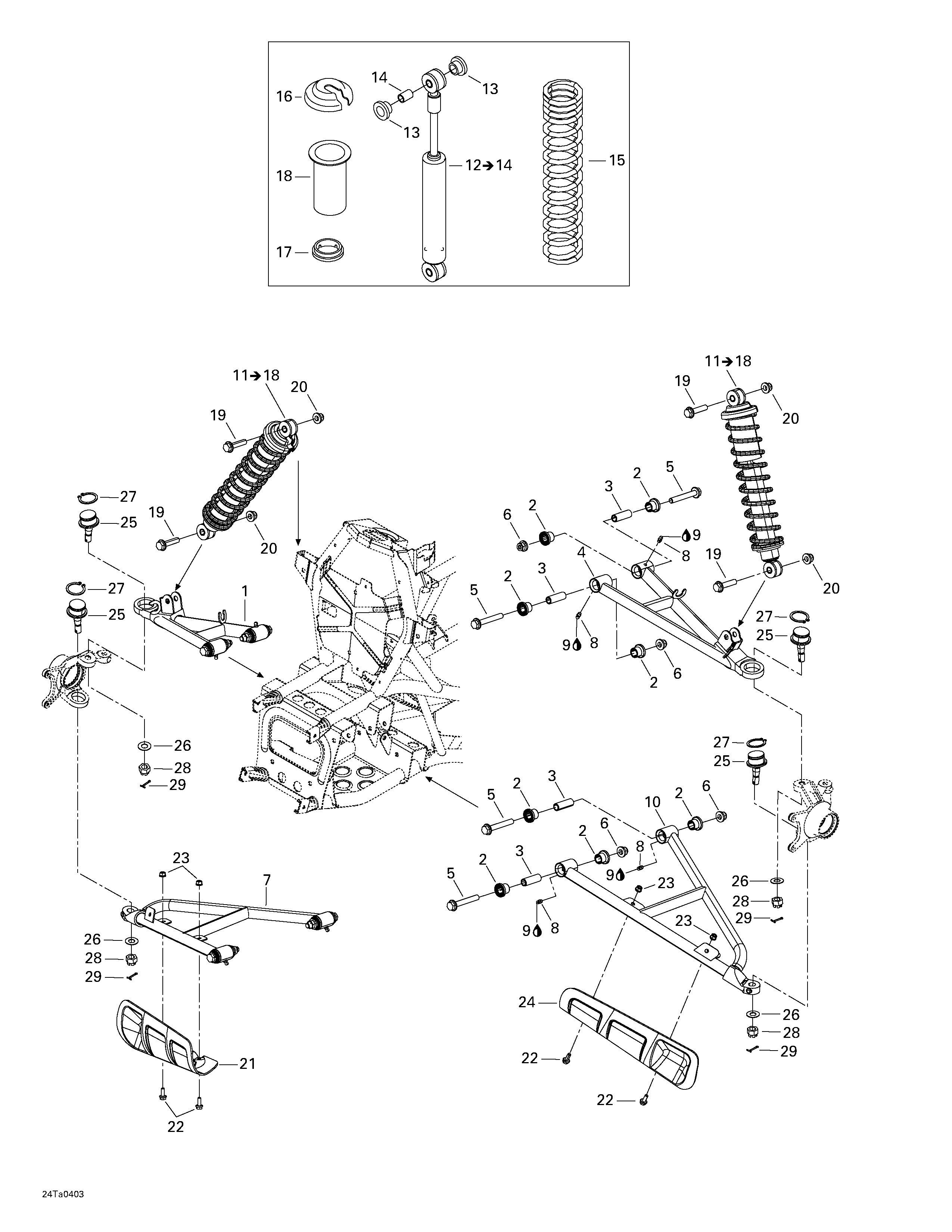

07- Front Suspension для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1706200318 R.H. Upper ArmR.H. Upper Arm
-
2706200181 CushionCushion
-
3706200182 Inner BushingInner Bushing
-
4706200320 LH Upper ArmLH Upper Arm
-
5207607046 Hex. Flanged Screw M10 x 70Hex. Flanged Screw M10 x 70
-
6233201416 Elastic Fanged Nut M10Elastic Fanged Nut M10
-
7706200360 RH Lower Arm (Black)RH Lower Arm (Black)
-
8408200700 Grease FittingGrease Fitting
-
9293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
10706200365 LH Lower Arm (Black)LH Lower Arm (Black)
-
12706200300 Front Shock. Includes 12 - 14.Front Shock. Includes 12 - 14.
-
13706200185 CushionCushion
-
14706200186 BushingBushing
-
15706200301 Front SpringFront Spring
-
16503140600 Spring StopperSpring Stopper
-
17706000197 Spring SeatSpring Seat
-
18503139800 ProtectorProtector
-
19207604544 Hex. Flanged Screw M10 x 45Hex. Flanged Screw M10 x 45
-
20233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
21706200179 R.H. Arm ProtectorR.H. Arm Protector
-
22207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
23233261414 Elastic Fanged Nut M6Elastic Fanged Nut M6
-
24706200180 LH Arm ProtectorLH Arm Protector
-
25706200091 Ball JointBall Joint
-
26706200281 Hard WasherHard Washer
-
27293370009 Circlip 32 mmCirclip 32 mm
-
28232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
29211400017 Cotter PinCotter Pin
