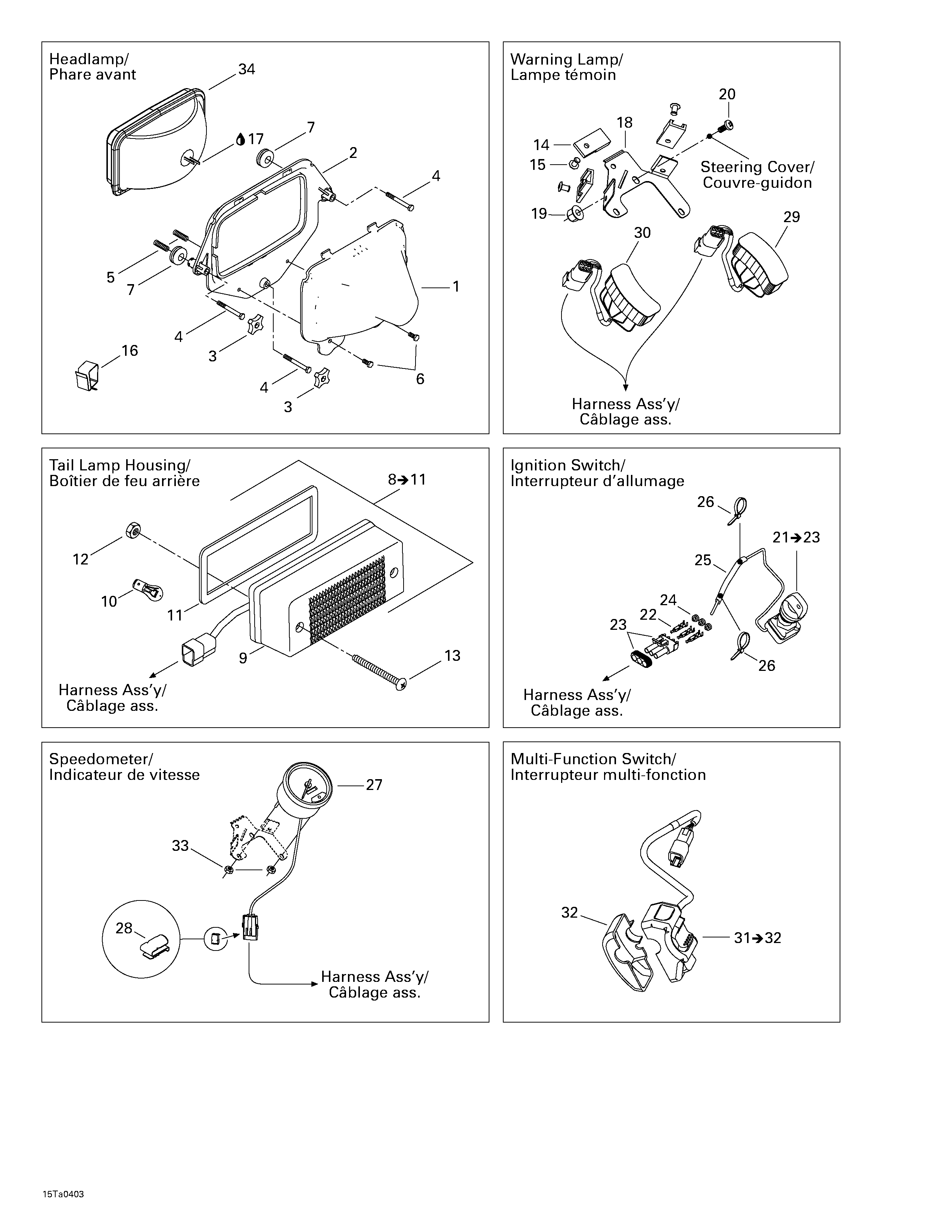

10- Electrical Accessories для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1705000023 ProtectorProtector
-
2705000474 Headlamp SupportHeadlamp Support
-
3572106600 HandleHandle
-
4250000008 Hex. Screw K40 x 40Hex. Screw K40 x 40
-
5517168600 SpringSpring
-
6241641040 Flanged Screw K40 x 10Flanged Screw K40 x 10
-
7293720053 GrommetGrommet
-
8710000102 Tail Lamp Housing. Includes 8 - 11.Tail Lamp Housing. Includes 8 - 11.
-
9710000055 Lens (Red)Lens (Red)
-
10410504100 Tail Lamp BulbTail Lamp Bulb
-
11710000129 GasketGasket
-
12233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13208656091 Phillips Screw M5 x 60Phillips Screw M5 x 60
-
14270000141 ClipClip
-
15390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
16414227300 ClipClip
-
17293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
18710000159 Housing SupportHousing Support
-
19232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
20208651241 Phillips Screw M5 x 12Phillips Screw M5 x 12
-
21710000042 Ignition Switch. Includes 21 - 23.Ignition Switch. Includes 21 - 23.
-
21710000137 Blank Key (''A'' Type). Includes 21 - 23.Blank Key (''A'' Type). Includes 21 - 23.
-
21710000101 Blank Key (''B'' Type). Includes 21 - 23.Blank Key (''B'' Type). Includes 21 - 23.
-
22278000223 Female TerminalFemale Terminal
-
23278000273 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
24278000218 Wire SealWire Seal
-
25710000171 Protector TubeProtector Tube
-
26293750002 Tie Rap 130 mmTie Rap 130 mm
-
27710000524 SpeedometerSpeedometer
-
28409014200 ClipClip
-
29710000419 R.H. Warning LampR.H. Warning Lamp
-
30710000418 L.H. Warning LampL.H. Warning Lamp
-
31710000015 Multi-function Switch. Includes 31 - 32.Multi-function Switch. Includes 31 - 32.
-
32710000173 Back CoverBack Cover
-
33211100051 Elastic Stop NutElastic Stop Nut
-
34710000001 HeadlampHeadlamp
