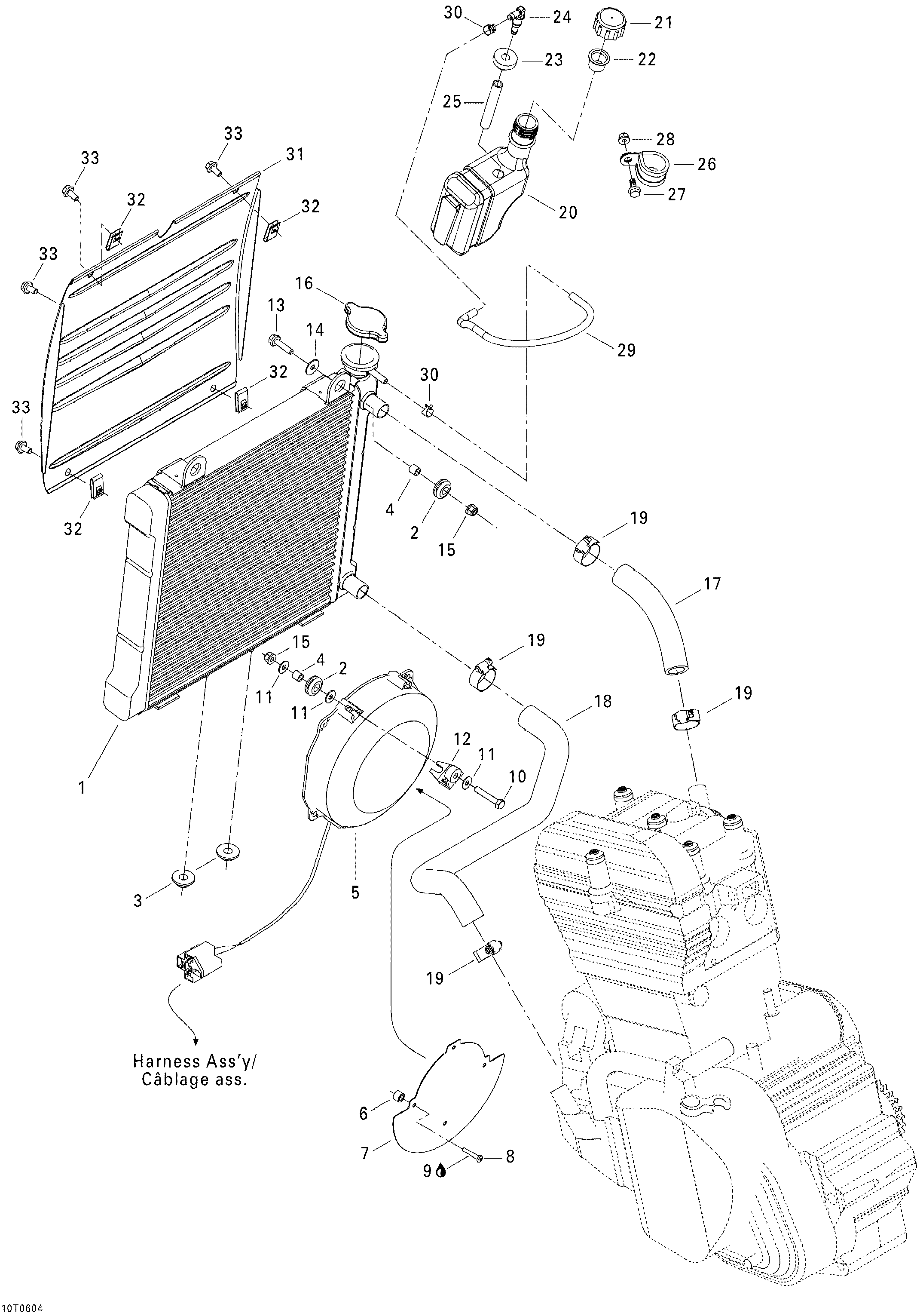

01- Cooling System для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1709200145 RadiatorRadiator
-
2293720053 GrommetGrommet
-
3709200115 BushingBushing
-
4293900045 BushingBushing
-
5709200092 Fan Ass'yFan Ass'y
-
6707000058 SpacerSpacer
-
7709200041 Heat ShieldHeat Shield
-
8209642590 Tapping Screw M4.2 X 25Tapping Screw M4.2 X 25
-
9293800005 Loctite-271Loctite-271
-
10207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
11391302100 Flat WasherFlat Washer
-
12709200104 Fan SupportFan Support
-
13207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
14224060201 Flat WasherFlat Washer
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16709200033 Pressure CapPressure Cap
-
17709200021 Radiator Inlet HoseRadiator Inlet Hose
-
18709200022 Radiator Outlet HoseRadiator Outlet Hose
-
19293650051 Tridon Gear ClampTridon Gear Clamp
-
20709200099 Coolant TankCoolant Tank
-
21709200009 Tank CapTank Cap
-
22709200034 Protection CapProtection Cap
-
23570135100 GrommetGrommet
-
24414580600 Elbow Male ConnectorElbow Male Connector
-
25415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
26709200036 Hose AnchorHose Anchor
-
27207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
28233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
29415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
30414554800 Universal Spring ClampUniversal Spring Clamp
-
31709200037 Radiator ProtectorRadiator Protector
-
32250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
33207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
