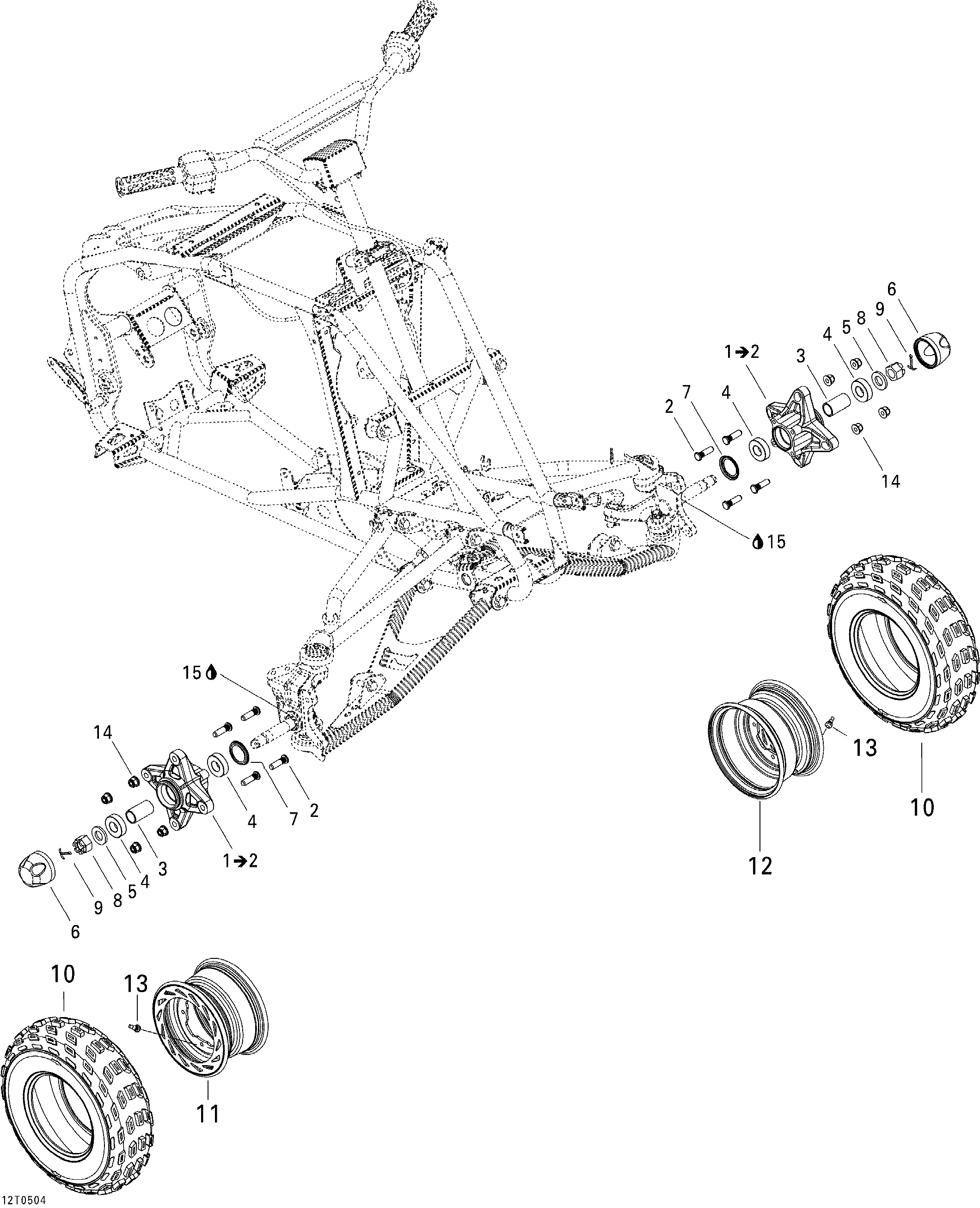

07- Drive System, Front для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1705400217 Wheel Hub Ass'y. Includes 1 to 2Wheel Hub Ass'y. Includes 1 to 2
-
2250000138 Wheel StudWheel Stud
-
3293900043 Inside BushingInside Bushing
-
4293350036 Ball BearingBall Bearing
-
5250200019 WasherWasher
-
6705400012 Wheel CapWheel Cap
-
7293250094 SealSeal
-
8250100047 Hex Castellated Nut M18Hex Castellated Nut M18
-
9211400011 Cotter PinCotter Pin
-
10705400136 Front TireFront Tire
-
11705400137 RH Front RimRH Front Rim
-
12705400140 LH Front RimLH Front Rim
-
13705400193 Rim ValveRim Valve
-
14732610084 Flanged Nut M10Flanged Nut M10
-
15293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
