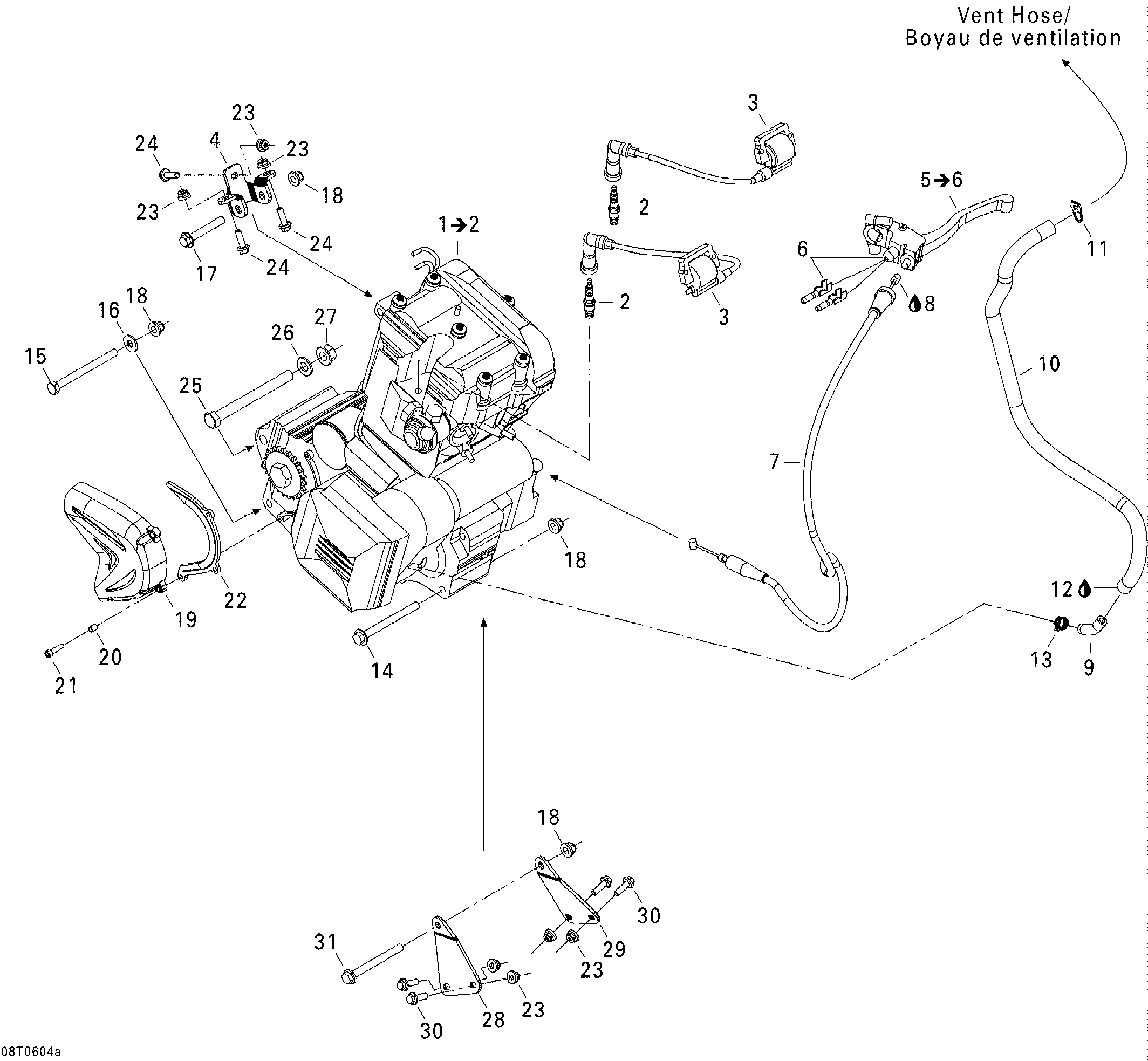

01- Engine 1 для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1707000214 Rotax 4 Strokes Engine «654». Includes 1 to 2Rotax 4 Strokes Engine «654». Includes 1 to 2
-
2707000008 Spark Plug, NGK/DR8EASpark Plug, NGK/DR8EA
-
3420265357 Ignition CoilIgnition Coil
-
4707000029 Support BracketSupport Bracket
-
5707000035 Shifter Lever. Includes 5 to 6Shifter Lever. Includes 5 to 6
-
6707000183 Lever Shifter SwitchLever Shifter Switch
-
7707000027 Shifter Lever CableShifter Lever Cable
-
8293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
9513033022 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
10276000001 Hose 12.5 mm (Meter)Hose 12.5 mm (Meter)
-
11293650119 Hose ClampHose Clamp
-
12413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
13414655700 Spring ClipSpring Clip
-
14230501046 Hex Screw M10 X 110, Scotch GripHex Screw M10 X 110, Scotch Grip
-
15230202046 Hex Screw M10 X 120, Scotch GripHex Screw M10 X 120, Scotch Grip
-
16224002251 Flat WasherFlat Washer
-
17207507046 Hex Screw M10 X 70, Scotch GripHex Screw M10 X 70, Scotch Grip
-
18233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
19707000024 Pinion CoverPinion Cover
-
20707000065 SpacerSpacer
-
21205062544 Socket Screw M6 X 25Socket Screw M6 X 25
-
22707000163 Chain GuardChain Guard
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
25230275044 Hex Screw M14 X 150, Scotch GripHex Screw M14 X 150, Scotch Grip
-
26234071410 Flat Washer 14 mmFlat Washer 14 mm
-
27233271414 Elastic Flanged Nut M14Elastic Flanged Nut M14
-
28707000268 RH Support EngineRH Support Engine
-
29707000269 LH Support EngineLH Support Engine
-
30207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
31230500046 Hex Screw M10 X 100, Scotch GripHex Screw M10 X 100, Scotch Grip
