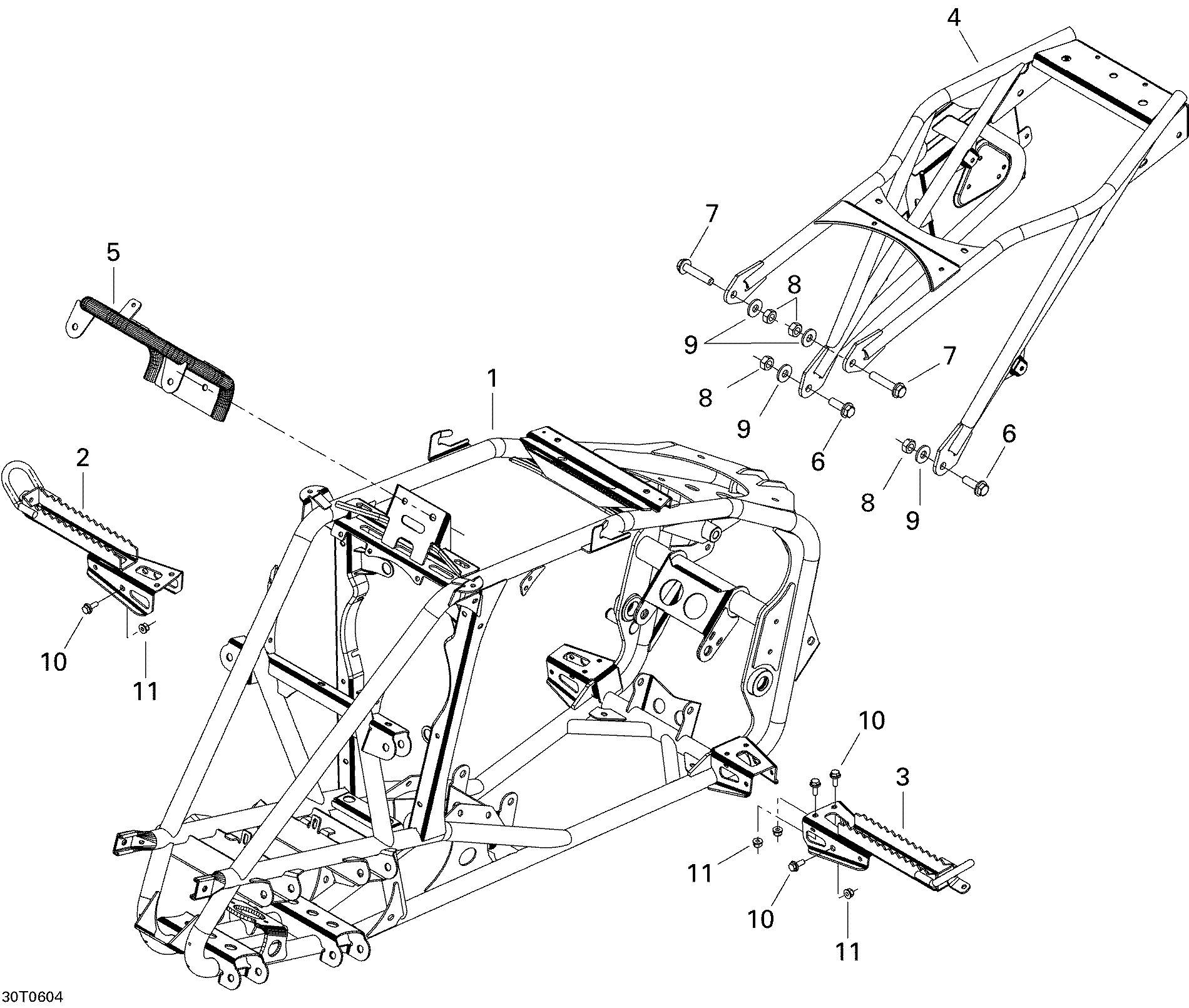

09- Frame для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1705200922 FrameFrame
-
2705200688 RH Footrest, BlackRH Footrest, Black
-
3705200695 LH Footrest, BlackLH Footrest, Black
-
4705200716 Frame ExtensionFrame Extension
-
5705200717 Box SupportBox Support
-
6207502587 Hex Flanged Screw M10 X 25, Scotch GripHex Flanged Screw M10 X 25, Scotch Grip
-
7207505087 Hex Flanged Screw M10 X 50, Scotch GripHex Flanged Screw M10 X 50, Scotch Grip
-
8232001487 Hex Nut M10Hex Nut M10
-
9224002251 Flat WasherFlat Washer
-
10207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
11233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
