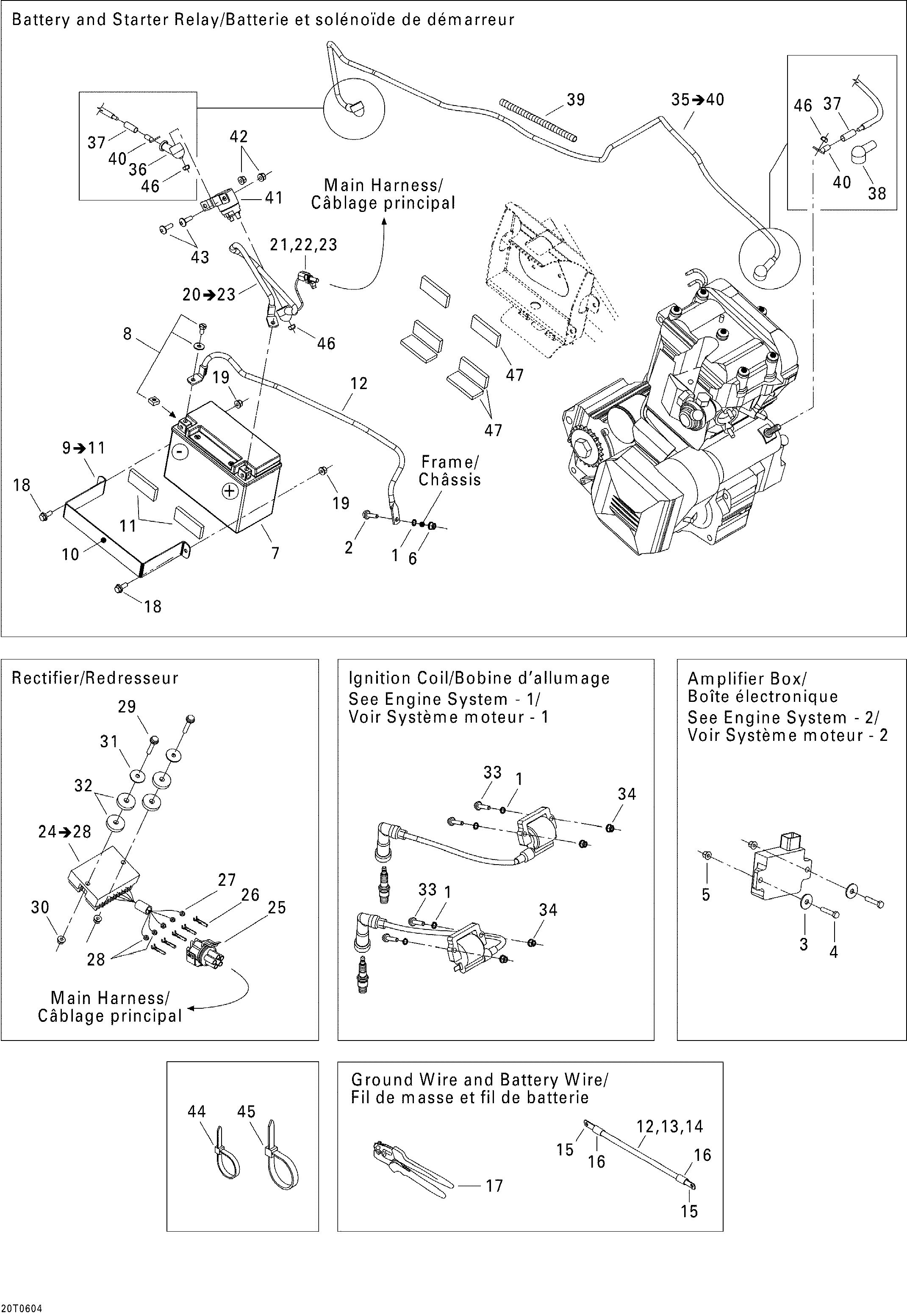

10- Electrical System для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3224061201 Flat WasherFlat Washer
-
4207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
5233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
6233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
7710000283 Battery, 13 AmperesBattery, 13 Amperes
-
8295500849 Battery Fastener KitBattery Fastener Kit
-
10710000087 Rubber Strap, BlackRubber Strap, Black
-
11293830083 ProtectorProtector
-
13278001680 Ground Cable Battery (no 6) (meter)Ground Cable Battery (no 6) (meter)
-
14278001690 Cable Battery (no 6) (meter)Cable Battery (no 6) (meter)
-
15278001682 Terminal 45°, Small HoleTerminal 45°, Small Hole
-
15278001683 Terminal 45°, Small HoleTerminal 45°, Small Hole
-
15278001684 Terminal 90°, Small HoleTerminal 90°, Small Hole
-
15278001685 Flat Terminal, Big HoleFlat Terminal, Big Hole
-
15278001686 Terminal 45°, Big HoleTerminal 45°, Big Hole
-
15278001687 Terminal 90°, Big HoleTerminal 90°, Big Hole
-
15278001688 Flat TerminalFlat Terminal
-
15278001776 Terminal 30°, 2 HolesTerminal 30°, 2 Holes
-
16710000483 Shrink TubingShrink Tubing
-
17529035730 Crimp PlierCrimp Plier
-
18207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
21278000219 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
22409007300 Female TerminalFemale Terminal
-
23710000049 CapCap
-
24710000257 Rectifier Ass'y. Includes 24 to 28Rectifier Ass'y. Includes 24 to 28
-
25710000106 Female Housing, 5 CircuitFemale Housing, 5 Circuit
-
26409007300 Female TerminalFemale Terminal
-
27278000218 Wire SealWire Seal
-
28710000048 Wire SealWire Seal
-
29207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
30233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
31224060251 WasherWasher
-
32250200002 Rubber WasherRubber Washer
-
33207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
34233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
35710000069 Positive Cable. Includes 35 to 40Positive Cable. Includes 35 to 40
-
36710000393 Protector CapProtector Cap
-
37710000483 Shrink TubingShrink Tubing
-
38710000494 Protector CapProtector Cap
-
39710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
40710000538 Open BarrelOpen Barrel
-
41515176011 Starter RelayStarter Relay
-
42233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
43211000123 Phillips Screw M6 X 20Phillips Screw M6 X 20
-
44414115200 Tie-rap 180 mmTie-rap 180 mm
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
46232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
47293830083 ProtectorProtector
