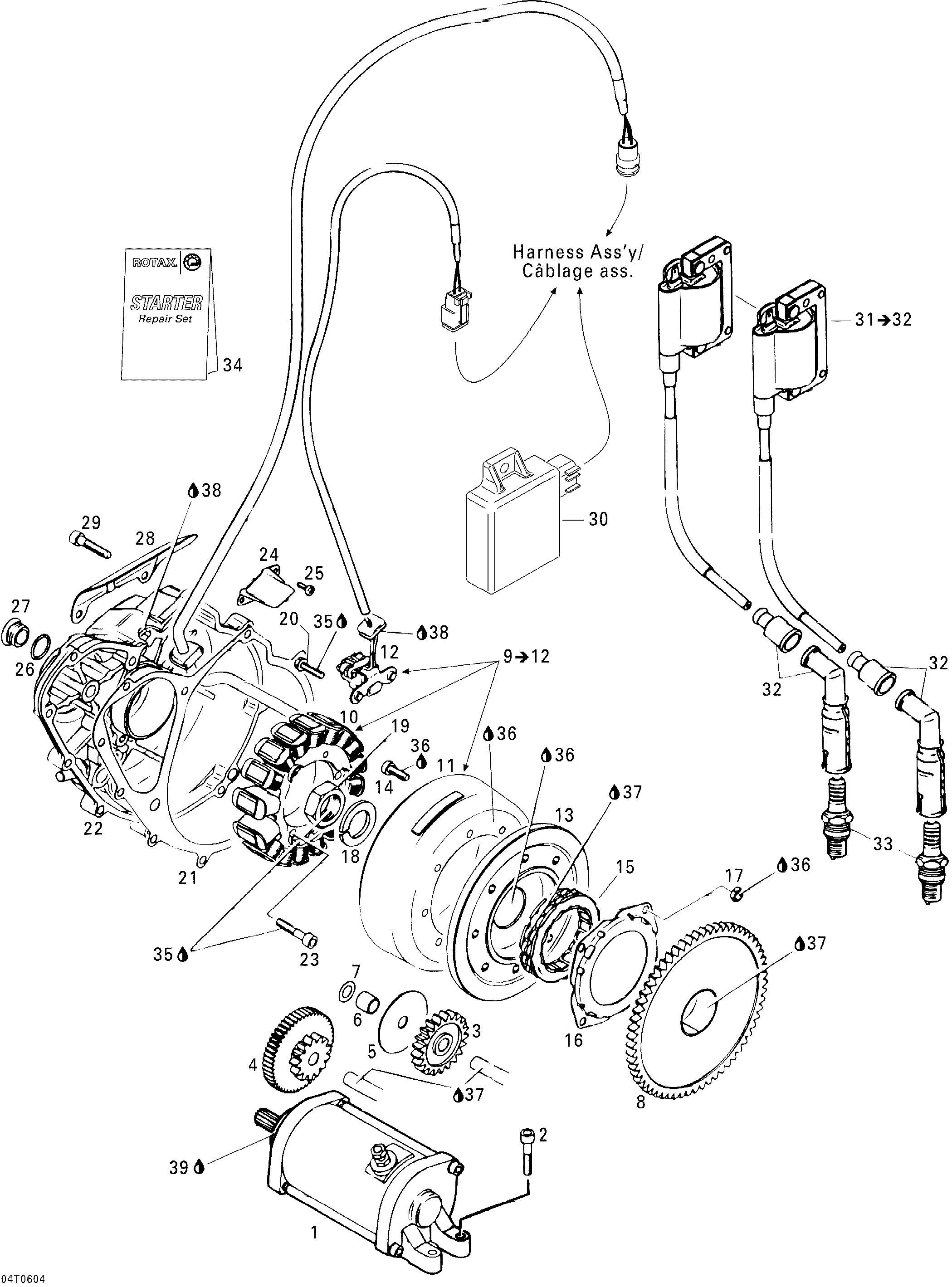

03- Ignition And Magneto для BRP DS 650 X - 2006
-
№АртикулНазвание
-
1420294351 Electric StarterElectric Starter
-
2205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
3420234655 Intermediate Gear (24 Teeth)Intermediate Gear (24 Teeth)
-
4420234756 Intermediate Gear (11/52 Teeth)Intermediate Gear (11/52 Teeth)
-
5420627080 Thrust WasherThrust Washer
-
6420247785 SpacerSpacer
-
7420827590 Thrust WasherThrust Washer
-
8420634319 Starting Gear (61 Teeth)Starting Gear (61 Teeth)
-
10420296520 Stator Ass'y, 12v180wStator Ass'y, 12v180w
-
11420296510 Flywheel Rotor Ass'y, 12v180wFlywheel Rotor Ass'y, 12v180w
-
12420265153 Pickup Ass'YPickup Ass'Y
-
13420264577 Flywheel Rotor HubFlywheel Rotor Hub
-
14420640980 Hex. Locking Screw M6 X 16Hex. Locking Screw M6 X 16
-
15420958857 Sprag ClutchSprag Clutch
-
16420259192 Sprag Clutch HousingSprag Clutch Housing
-
17420242031 Nut Bm6Nut Bm6
-
18420945759 Lock WasherLock Washer
-
19420842237 Hex Nut M22Hex Nut M22
-
20420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
21420250920 GasketGasket
-
22420211291 Ignition CoverIgnition Cover
-
23420241811 Socket Screw M6 X 35Socket Screw M6 X 35
-
24420251880 Cable Inner CoverCable Inner Cover
-
25420240195 Tapping ScrewTapping Screw
-
26420250890 O-RingO-Ring
-
27420241801 Drain PlugDrain Plug
-
28420251990 Cable External CoverCable External Cover
-
29205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
30420664170 Amplifier BoxAmplifier Box
-
31420265357 Ignition Coil. Includes 31 to 32Ignition Coil. Includes 31 to 32
-
32420665010 Spark Plug CapSpark Plug Cap
-
33707000008 Spark Plug, NGK/DR8EASpark Plug, NGK/DR8EA
-
34420294354 Starter Brush KitStarter Brush Kit
-
35293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
36413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
37293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
38420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
39420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
